Cordless Grass Trimmer
Cordless Grass Trimmer
UR101C
Specifications
- 36V high power drive system with BL motor provides 1 kW max output power similar to 30 mL class engine grass trimmers
- Excellent ability to perform continuous cutting achieved by high cooling capacity that suppresses heat generation of the controller and motor
- 43 cm cutting width with nylon cutting head for user convenience
- 36V high power drive system using model PDC01 portable power pack; Up to four batteries can be carried on user’s back, enabling long continuous operation while providing more lightweight tool body
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- IPX4 level water resistant
- WetGuard; Excellent water-resistant performance
- Rear end mounted motor makes the tool balance similar to engine grass trimmers
- Tool-less quick fastening handle holder (UR101C only)
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low / Medium / High) allows the operator to match speed to application
- Reverse switch for easy removal of grass clippings from the cutting tool
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Soft start feature for added motor protection
- On-tool hex wrench for fast and easy blade changes and keeping it from lost
- Low noise level suitable for use in residential areas and public spaces
- Zero emissions and reduced maintenance; no need for gas or oil. The best choices for use in resorts, public places and residential areas

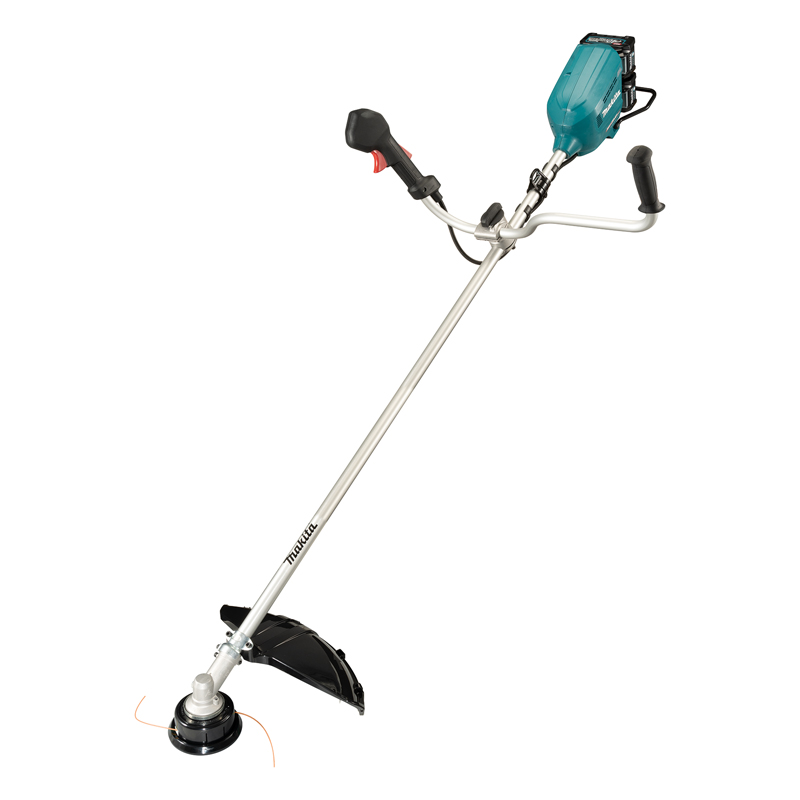

UR012G
Specifications
- Applicable to heavy-duty operation due to high output power similar to 40 mL class engine grass trimmers
- Toolless handle holder for comfortable operation and compact storage
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- Rear end mounted motor makes the tool balance similar to engine grass trimmers
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low / Medium / High) allows the operator to match speed to application
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads (country-specific)
- Wet Guard/ IPX4-compatible; High water-resistance allows to operate the machine even if it is wet with water
- Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds
- Electric brake for maximum productivity
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Soft start feature for added motor protection

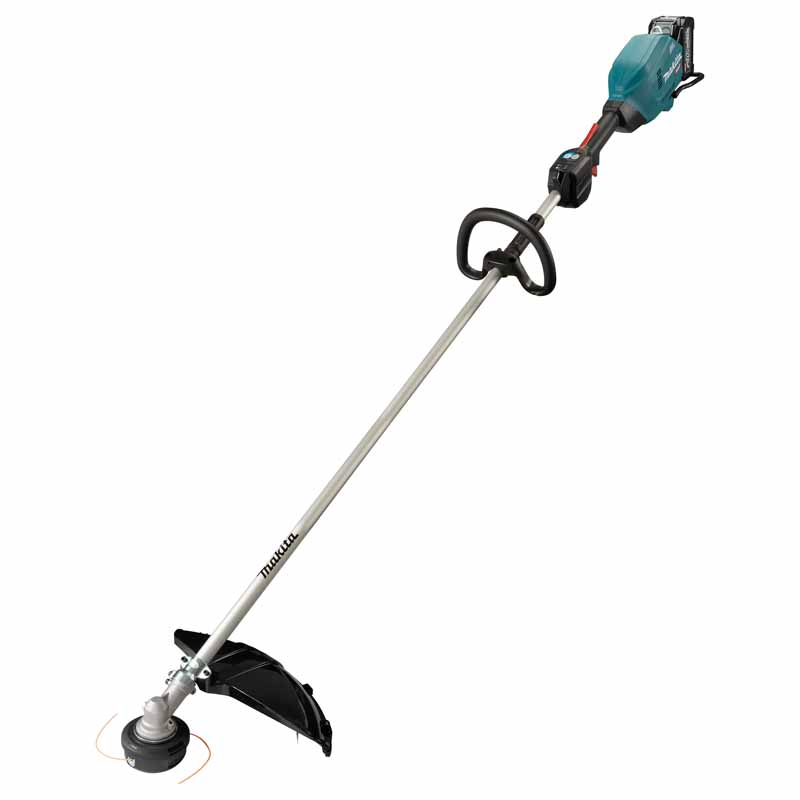

UR007G
Specifications
- 40Vmax XGT BL ADT AFT Cordless 3-Speed Grass Trimmer, Loop Handle
- 1.0 kW max output power similar to 30 mL class engine grass trimmers
- 43 cm cutting width with nylon cutting head for user convenience
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- Rear end mounted motor makes the tool balance similar to engine grass trimmers
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low / Medium / High) allows the operator to match speed to application
- BL motor delivers up to 7,000 RPM for faster cutting
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads (country-specific)
- Wet Guard/ IPX4-compatible; High water-resistance allows to operate the machine even if it is wet with water
- Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds
- Electric brake for maximum productivity
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Soft start feature for added motor protection

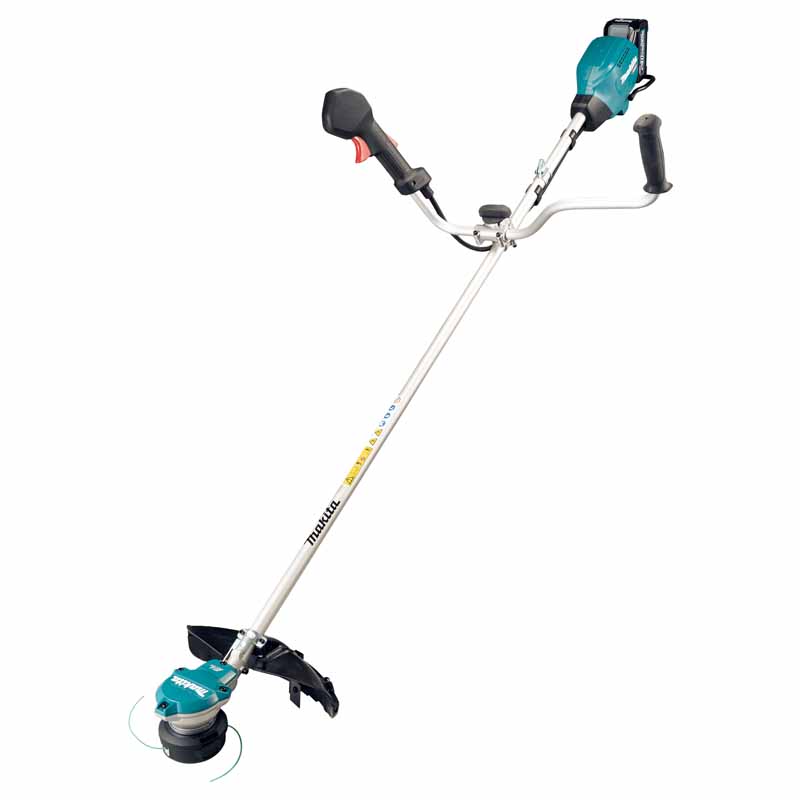

UR002G
Specifications
- Wet Guard/ IPX4-compatible (except for North America); High water-resistance allows to operate the machine even if it is wet with water
- Large push button switch for increased operability even with gloves
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- Delivers up to 105 min. of run time under load on the low speed setting using BL4050F battery
- Makita-built Outer Rotor BL Brushless Motor direct-drive system provides high power and increased torque
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low: 3,500 RPM, Medium: 5,300 RPM, High: 6,500 RPM) allows the operator to match speed to application
- Direct-drive motor mounted directly on the trimmer head for increased efficiency and improved tool balance
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads (country-specific)
- 350 mm cutting width with nylon cutting head for user convenience
- Lightweight for reduced operator fatigue
- BL motor delivers up to 6,500 RPM for faster cutting
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds
- Electric brake for maximum productivity

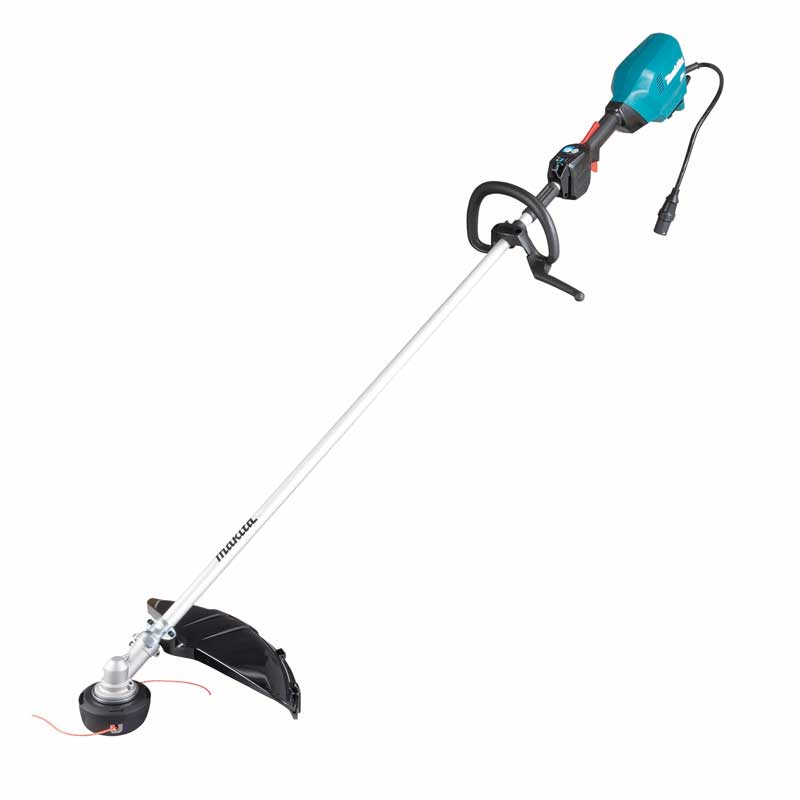

UR201C
Specifications
- 36V high power drive system with BL motor provides 1 kW max output power similar to 30 mL class engine grass trimmers
- Excellent ability to perform continuous cutting achieved by high cooling capacity that suppresses heat generation of the controller and motor
- 43 cm cutting width with nylon cutting head for user convenience
- 36V high power drive system using model PDC01 portable power pack; Up to four batteries can be carried on user’s back, enabling long continuous operation while providing more lightweight tool body
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- IPX4 level water resistant
- WetGuard; Excellent water-resistant performance
- Rear end mounted motor makes the tool balance similar to engine grass trimmers
- Tool-less quick fastening handle holder (UR101C only)
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low / Medium / High) allows the operator to match speed to application
- Reverse switch for easy removal of grass clippings from the cutting tool
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Soft start feature for added motor protection
- On-tool hex wrench for fast and easy blade changes and keeping it from lost
- Low noise level suitable for use in residential areas and public spaces
- Zero emissions and reduced maintenance; no need for gas or oil. The best choices for use in resorts, public places and residential areas

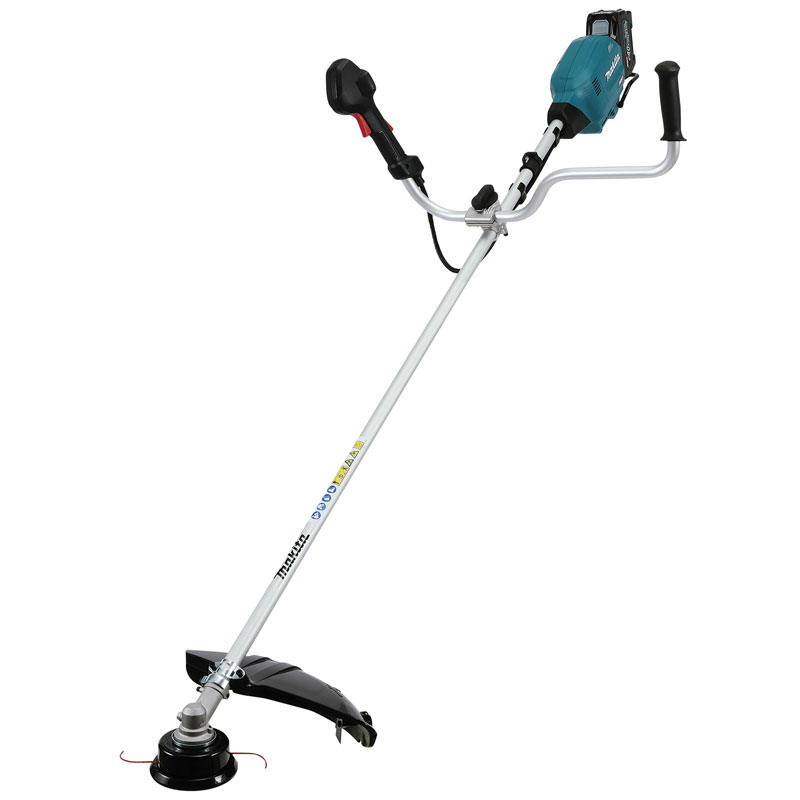

UR013G
Specifications
- High output power equivalent to that of 35 mL class engine models
- Compatible with ø450 mm Nylon cutting head
- High-torque mode
• The current limiting threshold is raised to extend the load range where these models can run at a constant speed, making them applicable to heavy duty operation
• Recommended for heavy-duty operation where particularly high torque is required, such as shredding operation, cutting down bush, etc.
• Tap the mode selection button for High-torque mode/ Normal mode - Low noise level is achieved by:
• using a low-speed and high-power motor of our own design to reduce the wind noise of motor
• eliminating the need for gear reduction inside motor housing to remove gear noise - With offset bike handle and standard protector, designed for use with metal blade/ plastic blade/ nylon cutting head
- Variable speed control by lever
• enables user to adjust to desired speed and to hold on the speed
• Finger fatigue from long continuous operation or repeated on/off operation has been reduced due to shorter trigger travel and reduced trigger pull resistance, which have been achieved by redesigning:
∙ Variable speed control lever (Adjusting lever) for use as variable speed control only
∙ Trigger switch for on/off control in single-speed mode only

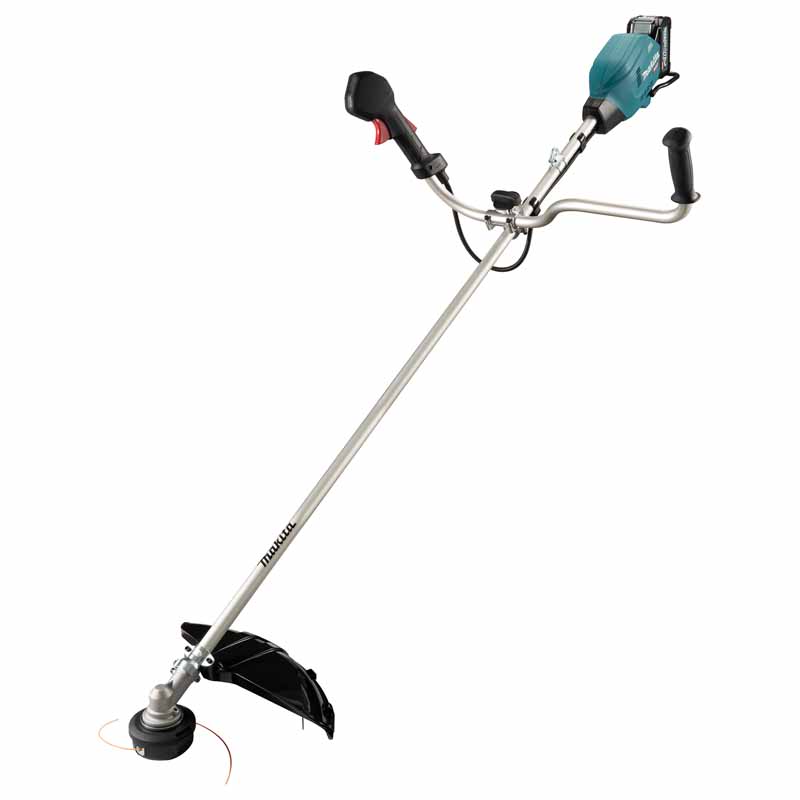

UR006G
Specifications
- 40Vmax XGT BL ADT AFT Cordless 3-Speed Grass Trimmer, Bike Handle
- Toolless handle holder for comfortable operation and compact storage
- 1.0 kW max output power similar to 30 mL class engine grass trimmers
- 43 cm (17″) cutting width similar to 30 mL class engine grass trimmers
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- Rear end mounted motor makes the tool balance similar to engine grass trimmers
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low / Medium / High) allows the operator to match speed to application
- BL motor delivers up to 7,000 RPM for faster cutting
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads (country-specific)
- Wet Guard/ IPX4-compatible; High water-resistance allows to operate the machine even if it is wet with water
- Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds
- Electric brake for maximum productivity

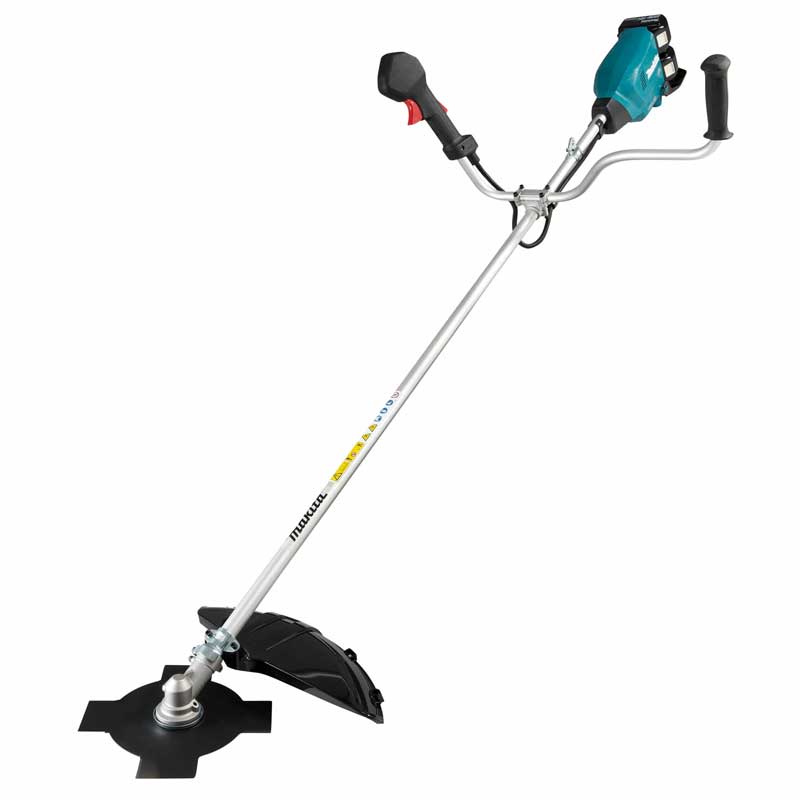

DUR369A
Specifications
- 1.0 kW max output power similar to 30 mL class engine grass trimmers
- Excellent ability to perform continuous cutting achieved by high cooling capacity that suppresses heat generation of the controller and motor
- 43 cm (17″) cutting width similar to 30 mL class engine grass trimmers
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- Rear end mounted motor makes the tool balance similar to engine grass trimmers
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low / Medium / High) allows the operator to match speed to application
- BL motor delivers up to 7,000 RPM for faster cutting
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads (country-specific)
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Soft start feature for added motor protection
- Ergonomically designed off-set bike handle with soft grip for operators comfort

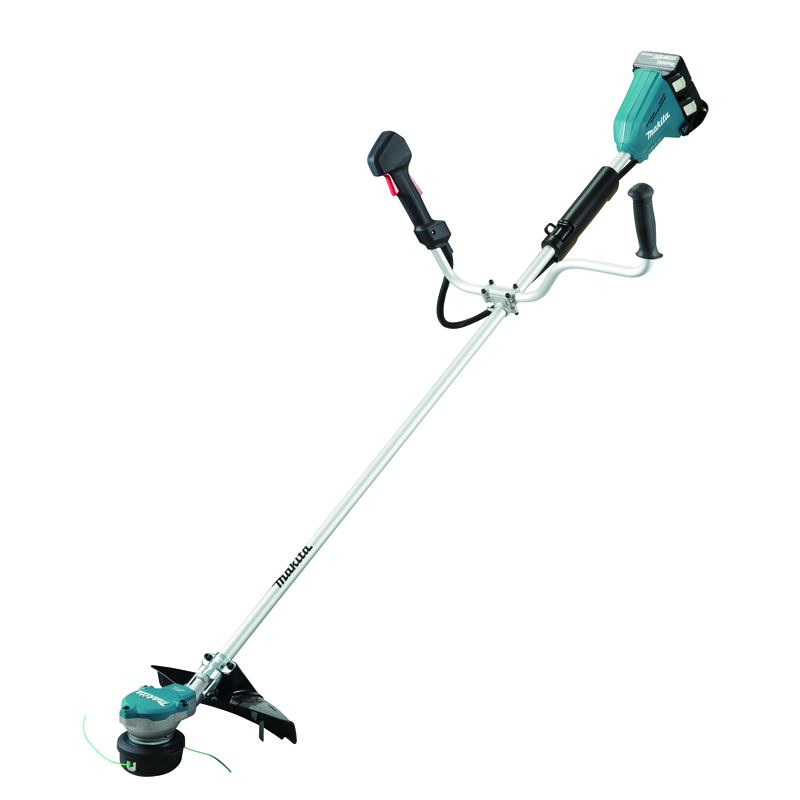

DUR368A
Specifications
- Automatic Torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback Sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- Delivers up to 125 min. of run time under load on the low speed setting using two BL1860B batteries
- Makita-built Outer Rotor BL Brushless Motor direct-drive system provides high power and increased torque
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low: 3,500 RPM, Medium: 5,300 RPM, High: 6,500 RPM) allows the operator to match speed to application
- Direct-drive motor mounted directly on the trimmer head for increased efficiency and improved tool balance
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Compatible with Metal blades, Chip saw blades, Plastic blades and Nylon cutting heads (country-specific)
- 350 mm cutting width with nylon cutting head for user convenience
- Lightweight for reduced operator fatigue
- BL motor delivers up to 6,500 RPM for faster cutting
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Reverse rotation system allows operator to quickly clear trimmer head / blade of entangled grass and weeds
- Electric brake for maximum productivity and increased operator safety
- 3-stage dual LED gauge indicates battery charge level
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Soft start feature for added motor protection. Smaller guard for better visibility. Ergonomically designed off-set bike handle with soft grip for operators comfort. New nylon cord features more sharpness, about 10% less noise, and about 15% less power consumption. Nylon cords are automatically fed out by tapping the cutting head on the ground. Aluminum motor housing engineered for improved durability. Two stage safety trigger switch with electronic power on / off button. Multifunctional control panel for operating main / 3-speed control / reversing switches. On-tool hex wrench for fast and easy blade changes and keeping it from lost. Battery guard for enhanced battery protection. Low noise level suitable for use in residential areas and public spaces. Zero emissions and reduced maintenance; no need for gas or oil. Two 18V LXT Lithium-Ion batteries deliver the power and run time for gas powered demands without leaving the 18V LXT platform. Instant start-up; simply load two 18V LXT batteries and the grass trimmer is ready to use. The best choices for use in resorts, public places and residential areas

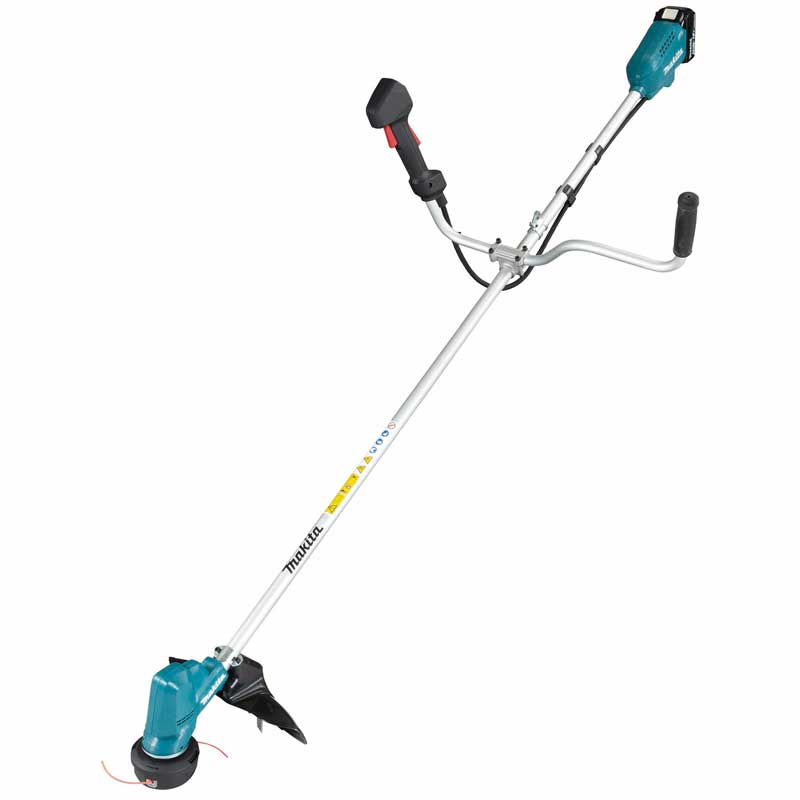

DUR190U
Specifications
- Better maneuverability through lightweight and the same powerful cutting performance as the current DUR187U series
- One protector for metal blade / plastic blade / trimmer head
- Toolless shaft lock for plastic blade change
- The guard integrated with receive washer prevents weed winding
- Soft grip of ergonomic design; The same one as used on DUR368A series
- Comfortable band assembly with well-cushioned shoulder pad (DUR190U, DUR191U only); Increased cushion performance of the shoulder pad reduces operator fatigue
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- BL motor delivers up to 6,000 RPM for faster cutting
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low: 3,500 RPM, Medium: 5,100 RPM, High: 6,000 RPM) allows the operator to match speed to application
- XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Electric brake for maximum productivity and increased operator safety
- Soft start feature for added motor protection

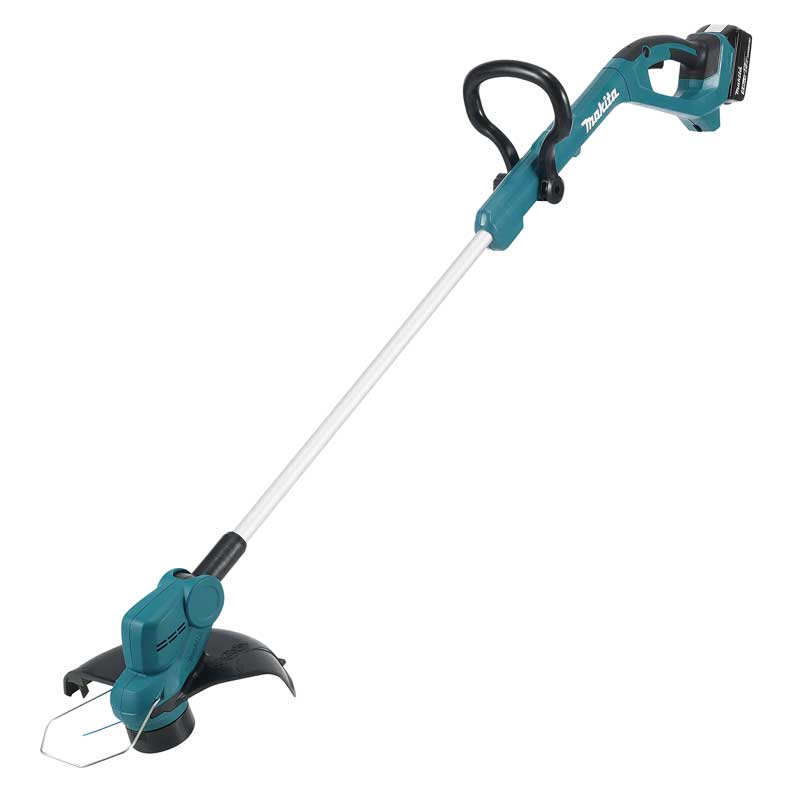

DUR193
Specifications
- The design has been upgraded from our predecessor model of DUR181 to reduce the weight and increase the maneuverability
- Optimal weight balance for easy handling
Easier to swing the tool head during grass trimming due to the center of gravity shifted towards the rear of the machine about 50mm from the position of DUR181 - Lightweight design
0.4kg lighter weight is achieved by making the following changes to DUR181:
• Change in the material of housings
• Integration of Bearing box and Motor housing into a tool tip section - Easy-to-operate front grip
• DUR193 uses a front grip similar to that of UR100D, which provides better handling of the machine because the top of grip is positioned closer to the shaft than such a conventional one as used for DUR181
• Adjustable to a desired height by changing the angle and position - Telescoping shaft for optimum cutting position
• can be more conveniently locked/released by changing the mechanism from the rotary type of DUR181 to the lever type similar to UR100D
• Adjustable in length from 1,248mm to 1,436mm

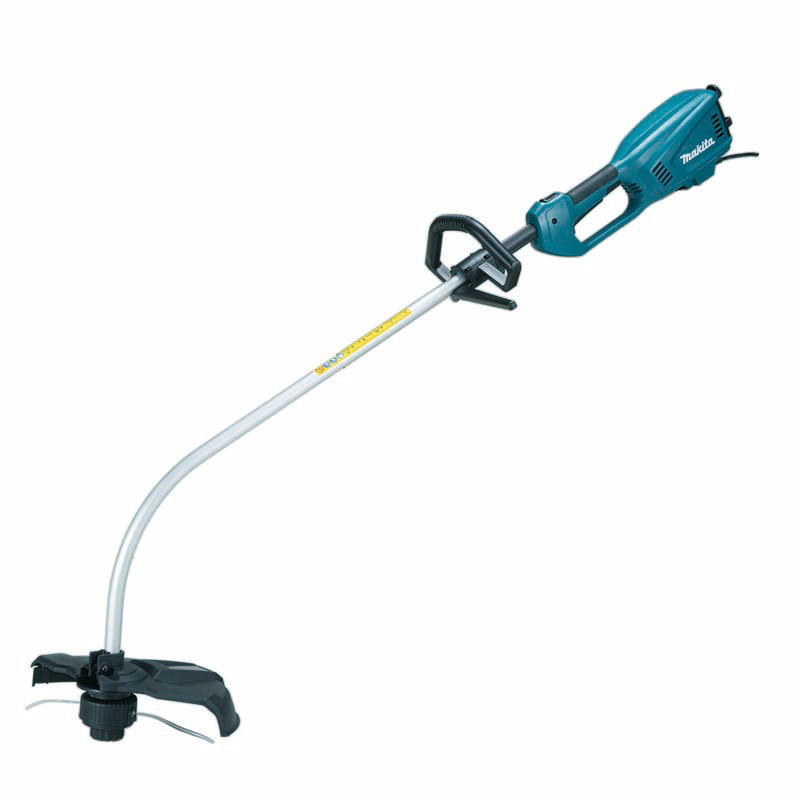

UR3501
Specifications
- Cost-effective and lightweight
- Aluminum bent shaft
- Soft grip provides increased comfort on the job
- Soft start feature gradually increases speed to eliminate start up shock
- Double insulated

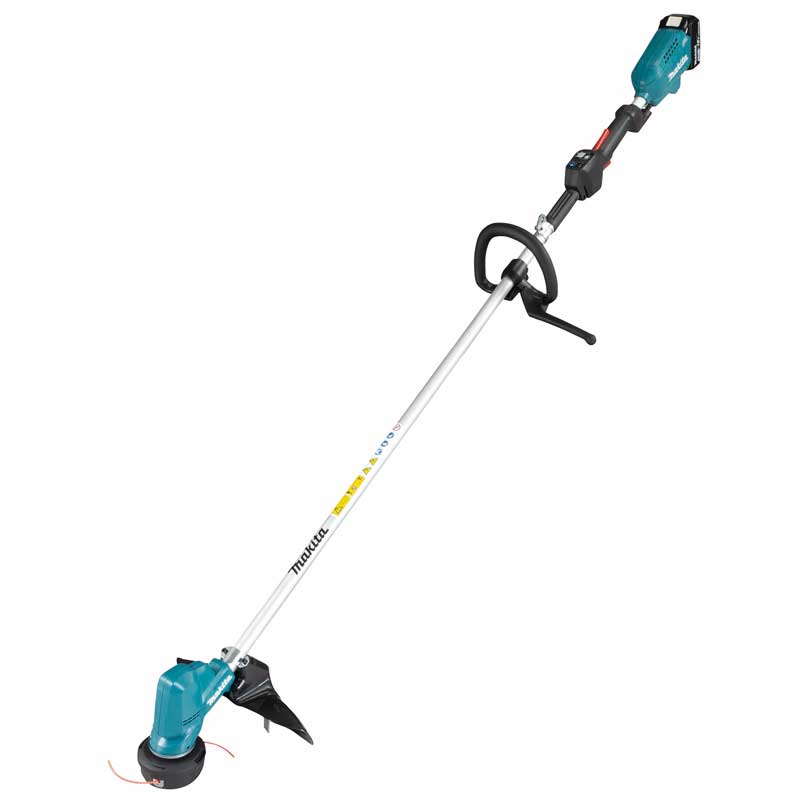

DUR190L
Specifications
- Better maneuverability through lightweight and the same powerful cutting performance as the current DUR187U series
- One protector for metal blade / plastic blade / trimmer head
- Toolless shaft lock for plastic blade change
- The guard integrated with receive washer prevents weed winding
- Soft grip of ergonomic design; The same one as used on DUR368A series
- Comfortable band assembly with well-cushioned shoulder pad (DUR190U, DUR191U only); Increased cushion performance of the shoulder pad reduces operator fatigue
- Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
- Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
- BL motor delivers up to 6,000 RPM for faster cutting
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Constant speed control minimizes reduction in rotation speed under load
- 3-speed options (Low: 3,500 RPM, Medium: 5,100 RPM, High: 6,000 RPM) allows the operator to match speed to application
- XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Electric brake for maximum productivity and increased operator safety
- Soft start feature for added motor protection

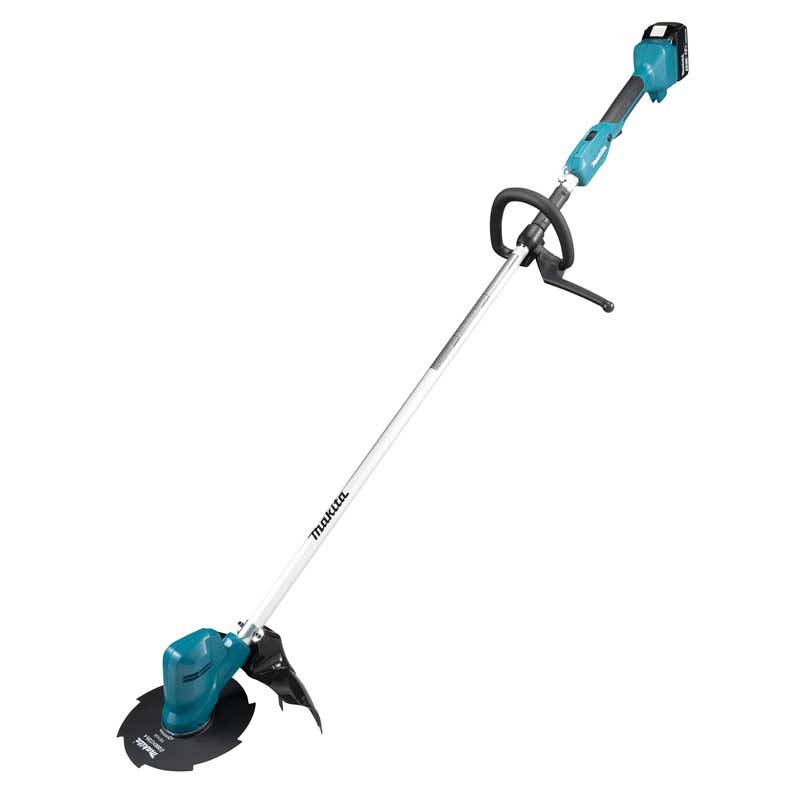

DUR194
Specifications
- 18V LXT Li-Ion Cordless 2-Speed Grass Trimmer, Loop Handle
- Can be used with: 8 tooth Metal blade (200mm cutting width): Nylon cutting head (2.0mm cord diameter, 280mm cutting width): Plastic blade (Three-blade cutter, 230mm cutting width)
- 8-tooth Metal blade with 200mm cutting width; Newly developed and compatible with DUR194
- Speed Change Switch for easy high/low speed selection
- Non-Adjustable Loop Handle with Barrier; DUR194 uses a handle similar to the one used for DUR190L to comply with the standard
- One protector for metal blade/ plastic blade/ nylon cutting head
- Toolless shaft lock for plastic blade change
- Soft grip of ergonomic design; The same one as used on DUR368A series
- XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Electric brake for maximum productivity
- Soft start feature for added motor protection
- Battery protection circuit protects against overloading, over-discharging and over-heating
- On-tool hex wrench for fast and easy blade changes and keeping it from lost
- Low noise level suitable for use in residential areas and public spaces
- Zero emissions and reduced maintenance; no need for gas or oil
- The best choices for use in resorts, public places and residential areas

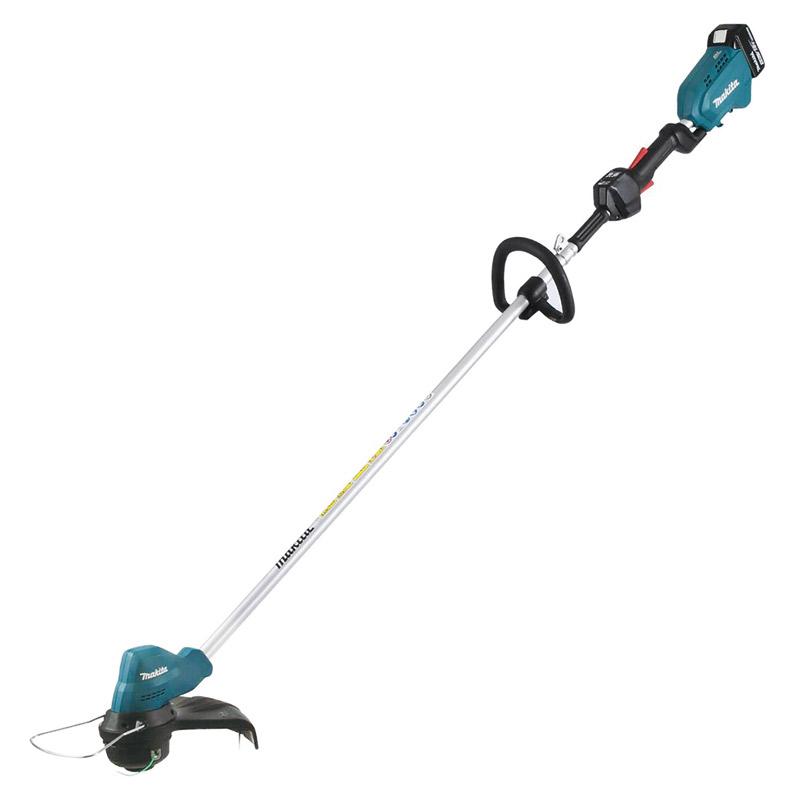

DUR187L
Specifications
- ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
- Lightweight and compact head for reduced operator fatigue
- Plastic triple blade for heavy duty operation
- Plastic triple blade with streamline and protrusion reduce air resistance and noise
- Easy plastic blade replacement only by removing cover
- BL motor located at trimmer head for improved balance and functionality with no loss of mechanical power
- BL motor delivers up to 6,000 RPM for faster cutting
- BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor with high power to weight and size ratio
- 4 Mode rotation selection: 3 stages + ADT mode
- Four-leaf clover-like cross section of nylon cord for lower noise
- Up to 168 min. of run time on a single charge using BL1860B under no load on the lowest setting with nylon cutting head (219 min. with plastic triple blade)
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Reverse rotation system allows operator to quickly clear trimmer head of entangled grass and weeds
- Wire guard, foldable for convenience reduces the risk of damaging fences, flowers or ornaments
- Two stage safety trigger switch with electronic power on / off button
- Soft grip provides increased comfort on the job
- Battery protection circuit protects against overloading, over-discharging and over-heating. Shoulder belt for operator convenience. Constant speed control automatically applies additional power to the motor to maintain speed under load. Soft start feature for added motor protection. Easy-loading bump and feed trimmer head for increased user convenience. Nylon cords are automatically fed out by tapping the cutting head on the ground. Electric brake for maximum productivity and increased operator safety. Onboard hex wrench for fast and easy handle position changes and keeping it from lost. Low noise level suitable for use in residential areas and public spaces. Zero emissions and reduced maintenance; no need for gas or oil

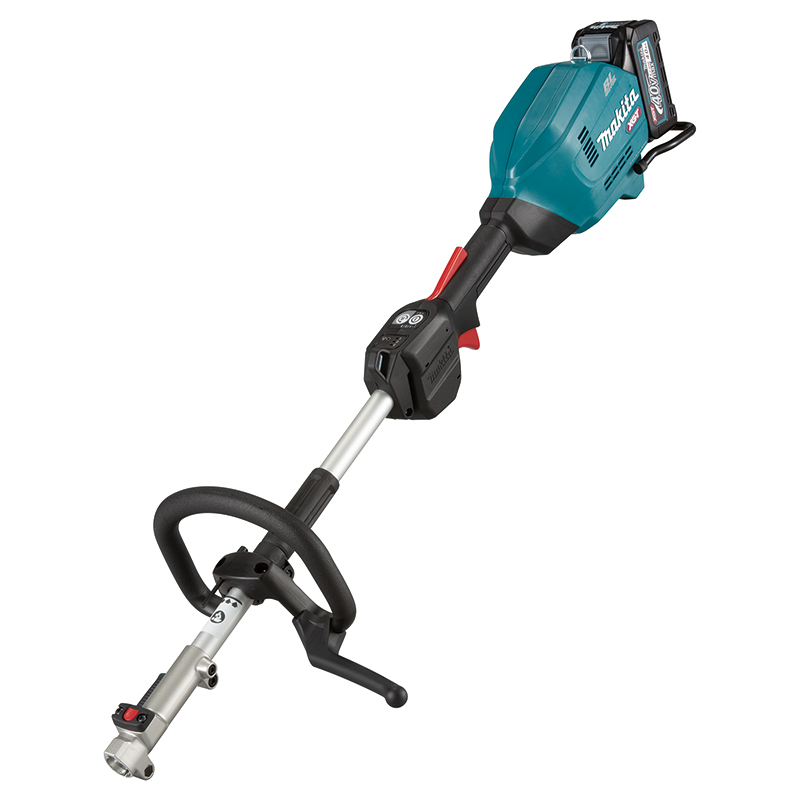

UX01G
Specifications
- BL motor and the XGT battery deliver much higher power than the current model DUX60, and enables use in a wider range of applications
- WetGuard and IPX4; Excellent water-resistant performance
- Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows
- High/Medium/Low 3-speed selection and variable speed control by trigger
- Multi-tool system consisting of power head and versatile optional attachments is ideal for a wide range of applications
- BL motor with high power to weight and size ratio
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Ergonomically designed new loop handle fits comfortably in user’s hand
- Variable speed control (high: 0 – 9,700, medium: 0 – 8,200, low: 0 – 5,700 RPM) allows the user to match speed to application
- Constant speed control maintains constant speed under load
- Soft start for smooth start-ups
- Electric brake stops the motor rotation gently but fast, allowing user to quickly resume operation
- Lever style lock system for quick toolless installation and replacement of the attachments
- Reverse switch for easy removal of grass clippings from the cutting tool
- Two-stage safety trigger switch minimizes accidental start up
- On-board blade wrench for convenience
- Shoulder harness for operator convenience. Handle and hanger position can be adjusted to obtain comfortable handling of the tool. Zero emissions and reduced maintenance; no need for gas or oil. The best choices for use in resorts, public places and residential areas. Battery protection circuit protects against overloading, over-discharging and over-heating

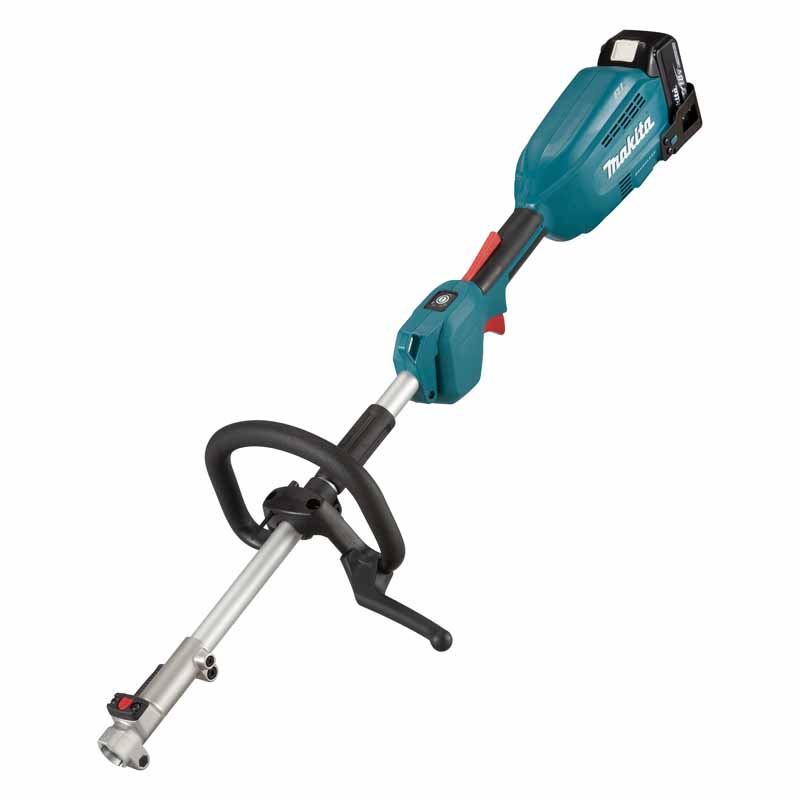

DUX18
Specifications
- Split system of Power head and Attachment provides easier portability
- The system consisting of a power head and versatile optional attachments is ideal for a wide range of garden and agricultural applications
- High power BL motor enables to work under heavy load
- Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows
- High/Low 2-speed selection and variable speed control by trigger
- Simple non-directional drive shaft allows for easy insertion of attachments into the power head
- BL motor with high power to weight and size ratio
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Ergonomically designed loop handle fits comfortably in user’s hand
- Variable speed control (high: 0 – 9,700, low: 0 – 6,800 RPM) allows the user to match speed to application
- Constant speed control maintains constant speed under load
- Soft start for smooth start-ups
- Electric brake for maximum productivity and increased operator safety
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Lever style lock system for quick toolless installation and replacement of the attachments
- Two-stage safety trigger switch minimizes accidental start up
DUX60
Specifications
- High Power BL Motor Enables to Work under Heavy Load
- Active Feedback sensing Technology (AFT) turns the motor off if rotation speed suddenly slows
- High/Medium/Low 3-speed selection and variable speed control by trigger
- Multi-tool system consisting of power head and versatile optional attachments is ideal for a wide range of applications
- BL motor with high power to weight and size ratio
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Ergonomically designed new loop handle fits comfortably in user’s hand
- Variable speed control (high: 0 – 9,700, medium: 0 – 8,200, low: 0 – 5,700 RPM) allows the user to match speed to application
- Constant speed control maintains constant speed under load
- Soft start for smooth start-ups
- Electric brake for maximum productivity and increased operator safety
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Lever style lock system for quick toolless installation and replacement of the attachments
- Reverse switch for easy removal of grass clippings from the cutting tool
- Two-stage safety trigger switch prevents accidental start up
- On-board blade wrench for convenience
- Shoulder harness for operator convenience. Handle and hanger position can be adjusted to obtain comfortable handling of the tool. Two 18V LXT Lithium-Ion batteries deliver the power and run time for gas powered demands without leaving the 18V LXT platform. Instant start-up; simply load two 18V LXT batteries and the blower is ready to use. Zero emissions and reduced maintenance; no need for gas or oil. The best choices for use in resorts, public places and residential areas. Battery protection circuit protects against overloading, over-discharging and over-heating
