Cordless Hammer Drilling/Chiselling
Cordless Hammer Drilling/Chiselling
HR006G
Specifications
- 52 mm (2-1/16″) Adapted for SDS-MAX bits
- 40Vmax X2 (80Vmax) XGT BL AFT AWS AVT SOFT NO LOAD Cordless 52 mm (2-1/16″) 21.4 J Rotary Hammer, SDS-MAX Bits
- 40Vmax X2 (80Vmax) XGT BL AFT AWS AVT SOFT NO LOAD Cordless 52 mm (2-1/16″) 21.4 J Rotary Hammer, SDS-MAX Bits
- Higher power than corded model HR5212C, and low vibration for easier machine control
- Powerful BL motor delivers 21.4 J of impact energy to handle the most demanding applications
- Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
- Vibration to operator’s hands is reduced by AVT (Anti-Vibration Technology using Active dynamic vibration absorber, Vibration absorbing housing and Soft no-load)
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- Twin LED lights with preglow and afterglow functions for better illumination
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds
- Depth gauge for increased drilling consistency
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
HR001G
Specifications
- 40Vmax XGT BL AFT AWS AVT SOFT NO LOAD Cordless 28 mm (1-1/8″) Combination Hammer, SDS-PLUS Bits
- Excellent tool balance for easy handling and control
- Anti-Vibration Technology (AVT) for extremely low vibration
- High power similar to DHR282 series
- Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
- Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
- Soft no load function automatically reduces the motor speed during idling to suppress the vibration
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- One touch sliding chuck enables quick and easy bit changes
- Variable speed trigger allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Electric brake for maximum productivity and increased operator safety
- Twin LED lights with preglow and afterglow functions illuminate drilling surface for more productivity in low light applications
- Reverse switch operable by one hand
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Depth gauge for increased drilling consistency

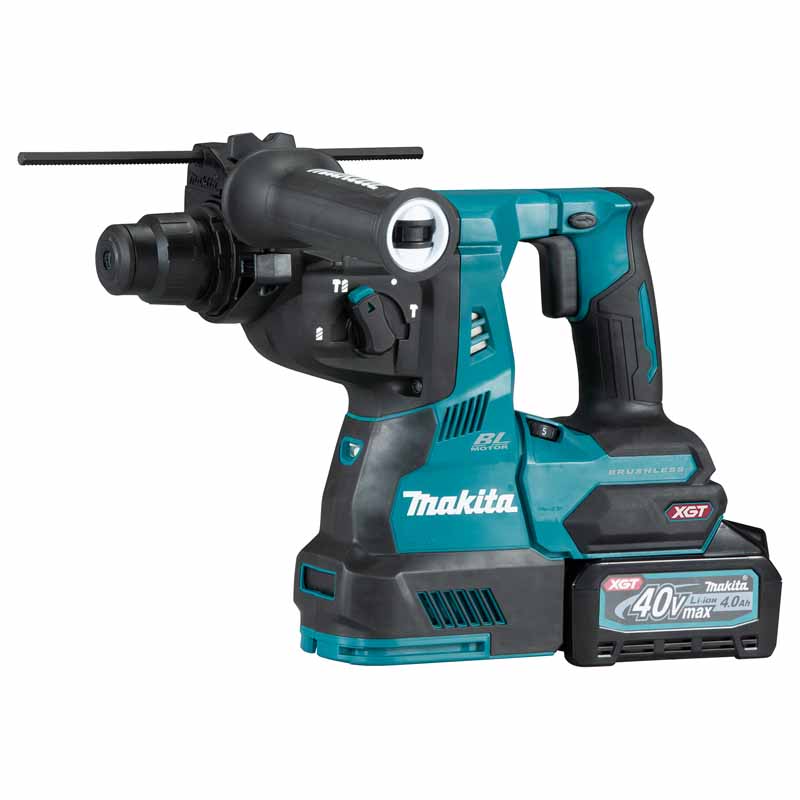

HR003G
Specifications
- 40Vmax XGT BL AVT Cordless 28 mm (1-1/8″) Combination Hammer, SDS-PLUS Bits
- Excellent tool balance for easy handling and control
- Anti-Vibration Technology (AVT) for extremely low vibration
- High power similar to DHR282 series
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- One touch sliding chuck enables quick and easy bit changes
- Variable speed trigger allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Electric brake for maximum productivity and increased operator safety
- Twin LED lights with preglow and afterglow functions illuminate drilling surface for more productivity in low light applications
- Reverse switch operable by one hand
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Depth gauge for increased drilling consistency

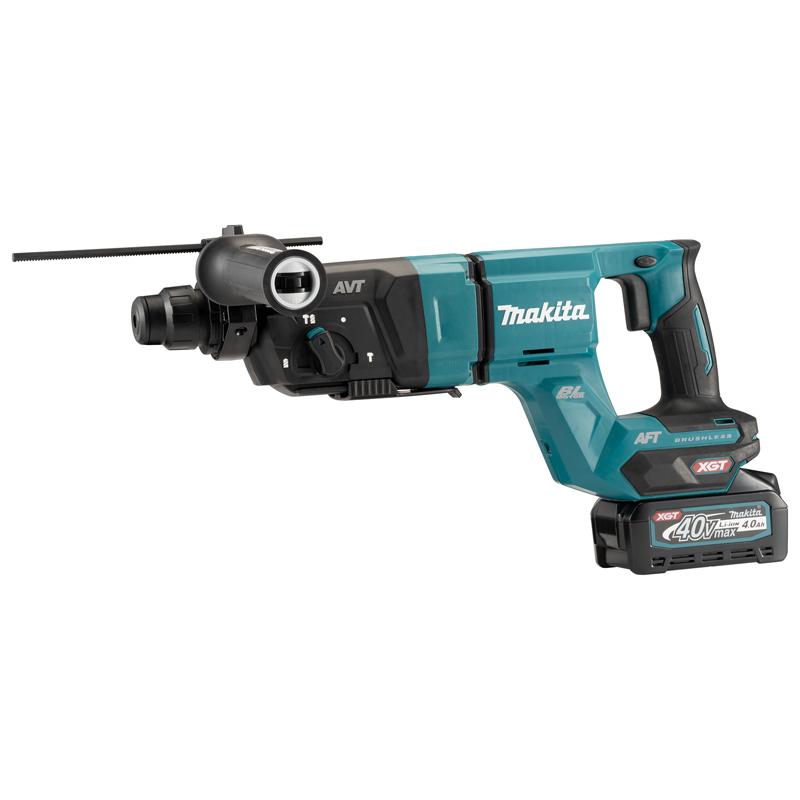

HR007G
Specifications
- 40Vmax XGT BL AFT AWS AVT Cordless 28 mm (1-1/8″) Combination Hammer, SDS-PLUS Bits
- Work efficiency the same or higher than that of HR001G
- Compatible with the same dust collection system as used for HR2663 series
- BL motor delivers high power and excellent performance
- Active Feedback sensing Technology (AFT) for kickback reduction
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaner with Bluetooth
- Anti-Vibration Technology (AVT); Equipped with anti-vibration main handle and side handle to reduce vibration to operator’s hands
for less hand and arm fatigue from long continuous operation - 3-mode operation;“rotation only”, “hammering with rotation” and “hammering only”
- Built-in torque limiter clutch disengages motor should bit bind
- Soft grip handle provides increased comfort on the job
- LED light illuminates drilling surface for more productivity in low light applications
- One touch sliding chuck enables quick and easy bit changes
- Depth gauge for increased drilling consistency
- Variable speed trigger allows operator to adjust speed based on materials or application
- Conveniently located push button for rotation reverse
- Electric brake for maximum productivity
- Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance
- Battery protection circuit protects against overloading, over-discharging and over-heating
HR008G
Specifications
- 40Vmax XGT BL AFT AWS AVT Cordless 30 mm (1-3/16″) Combination Hammer, SDS-PLUS Bits
- Drilling efficiency drastically increased by redesigned hammering mechanism
- Anti-Vibration Technology (AVT) for low vibration
- Powerful yet with low vibration due to 2 Counterweights, Anti-vibration rear handle and Anti-vibration side grip yet maintaining high power
- Anti-vibration side grip absorbs excess vibration beyond the canceling capacity of the two counterweights
- Anti-vibration rear handle; Vibration absorbing performance is increased by two cushion rings added to connecting parts
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application - AFT (Active Feedback sensing Technology) for kickback reduction
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaner with Bluetooth
- Less bit wobbling achieved by making bit guide portion 8 mm longer than that of HR2811F series
- Compatible with the same dust collection system as used for HR3011FC
- Hook assembly (anti-drop attachment)
• Available as an option
• Anti-drop strap can be attached
• Also can be used as a skyhook - LED light illuminates drilling surface for more productivity in low light applications

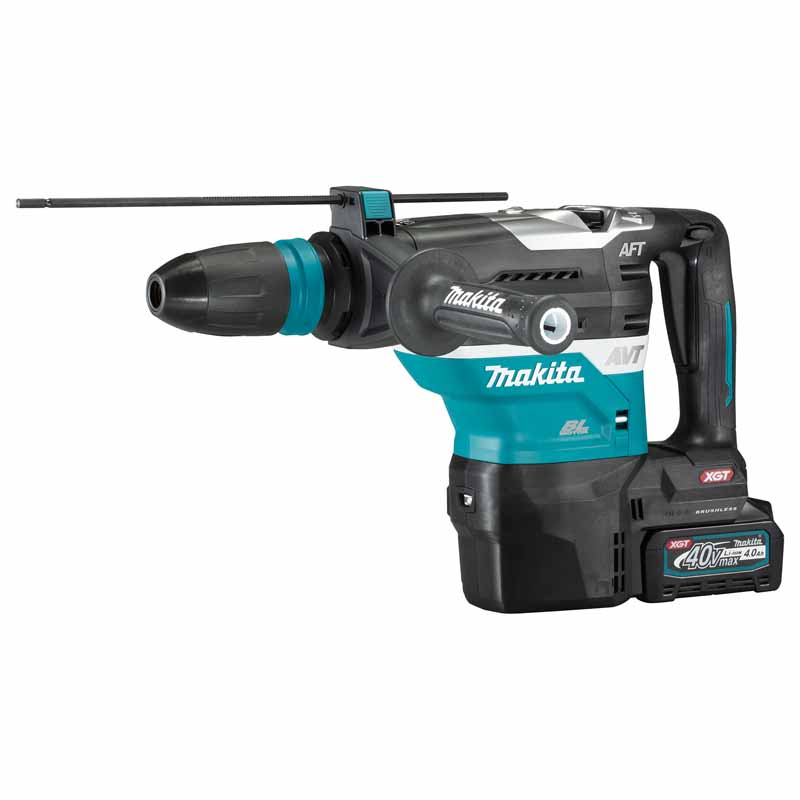

HR005G
Specifications
- 40 mm (1-9/16″) Adapted for SDS-Max bits
- 40Vmax XGT BL AFT AWS AVT SOFT NO LOAD Cordless 40 mm (1-9/16″) Rotary Hammer, SDS-Max Bits, Twin LED Lights
- 8.0 Joules (EPTA) Impact Energy Delivers High Performance Equivalent to HR4013C
- BL motor delivers high power and excellent performance equivalent to corded model HR4013C
- Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Low vibration achieved by Anti-Vibration Technology (AVT) & SOFT NO LOAD (suppression of motor speed during no-load)
- BL motor delivers 250-500 RPM and 1,450-2,900 BPM
- BL motor with high power to weight and size ratio
- BL motor generates less heat buildup and is ideal for prolonged use in high production applications
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Twin LED job lights with preglow and afterglow functions
- Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Variable speed control dial allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Soft start for smooth start-ups
DHR282

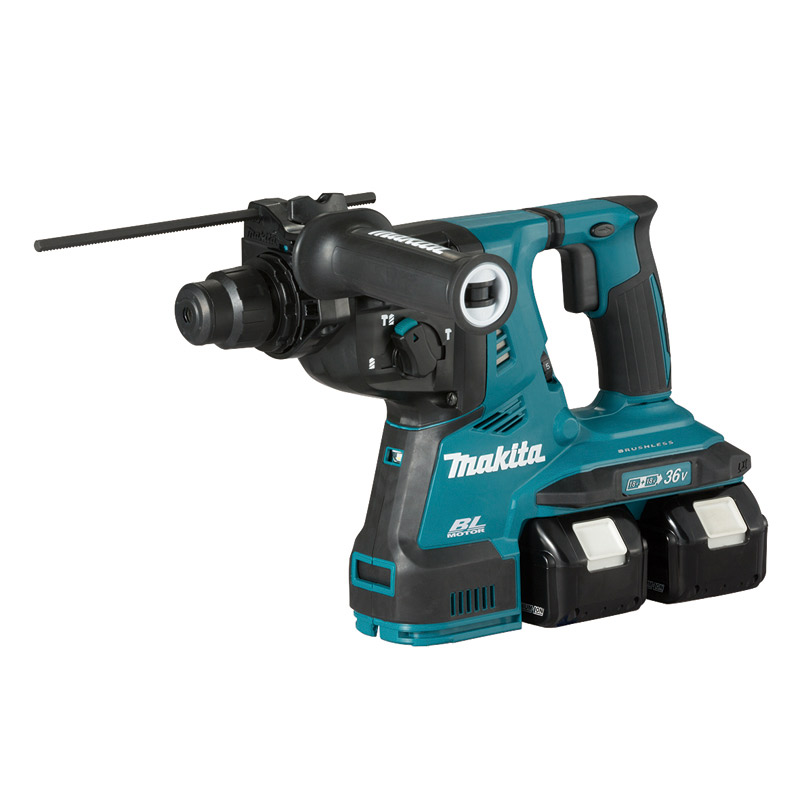

DHR280
Specifications
- 18V X2 (36V) LXT BL AFT AWS AVT SOFT NO LOAD Cordless 28 mm (1-1/8″) Combination Hammer, SDS-PLUS Bits
- BL Motor & AVT + SOFT NO LOAD Functions Deliver High Power and Low Vibration
- Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
- Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
- 18V solution for corded power demands
- Two 18V LXT Li-Ion batteries deliver the power and run time for corded demands without leaving the 18V LXT platform
- BL motor delivers 0-980 RPM, 0-5,000 BPM and 2.8 Joules (EPTA) of impact energy for faster drilling
- BL motor with high power to weight and size ratio
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Anti-Vibration Technology (AVT) for low vibration
- Soft no load function automatically reduces the motor speed during idling to suppress the vibration
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- One touch sliding chuck enables quick and easy bit changes
- Variable speed trigger allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Electric brake for maximum productivity and increased operator safety
- Compact and lightweight
- Dual LED lights with preglow and afterglow functions illuminate drilling surface for more productivity in low light applications. Reverse switch operable by one hand. eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions. Battery protection circuit protects against overloading, over-discharging and over-heating. Depth gauge for increased drilling consistency (country-specific). Optional dust cup for a cleaner work environment

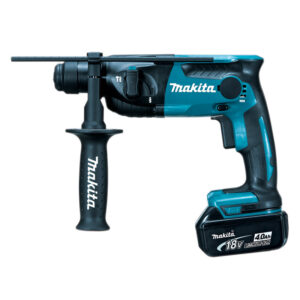

DHR165
Specifications
- 18V LXT Li-Ion Cordless 16 mm (5/8″) Rotary Hammer, SDS-PLUS Bits
- Compact and Light weight
- Ergonomic handle for perfect tool control and minimum hand fatigue and pain
- 2-mode operation for “Rotation Only” or “Hammering with Rotation”
- Side grip with elastomer soft grip
- Conveniently located push button for rotation reverse
- Built-in LED light with afterglow function illuminates the work area
- Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance in harsh job site conditions
- One touch sliding chuck enables quick and easy bit changes
- Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
- Inline soft grip design maximises power thrust
- Variable speed trigger allows operator to adjust speed based on materials or application
- Depth gauge for increased drilling consistency
- Electric brake for maximum productivity and increased operator safety
- 1.3 Joules (EPTA) impact energy delivers high performance
- Battery protection circuit protects against overloading, over-discharging and over-heating

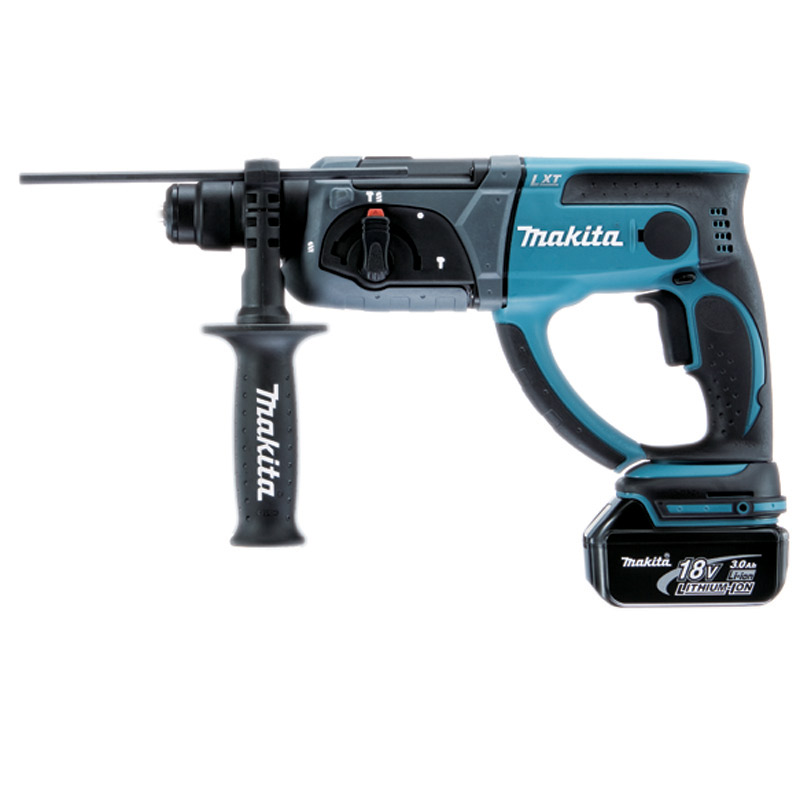

DHR202
Specifications
- 18V LXT Li-Ion Cordless 20 mm (13/16″) Combination Hammer, SDS-PLUS Bits
- Makita-built motor delivers 0-1,100 RPM and 0-4,000 BPM for 2X faster drilling
- Synchronized RPM and BPM prevents overlapping impacts for up to 50% more efficient drilling
- 3-mode operation;“rotation only”, “hammering with rotation” and “hammering only”
- 40 different chisel positions for increased comfort and performance
- Built-in torque limiter clutch disengages motor should bit bind
- Compact design and lightweight for reduced operator fatigue
- Compact, ergonomic design with large 2-finger trigger
- Soft grip handle provides increased comfort on the job
- LED light illuminates drilling surface for more productivity in low light applications
- Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
- One touch sliding chuck enables quick and easy bit changes
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Depth gauge for increased drilling consistency
- Side grip with elastomer soft grip
- Variable speed trigger allows operator to adjust speed based on materials or application
- Conveniently located push button for rotation reverse
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Externally accessible brushes for easy serviceability

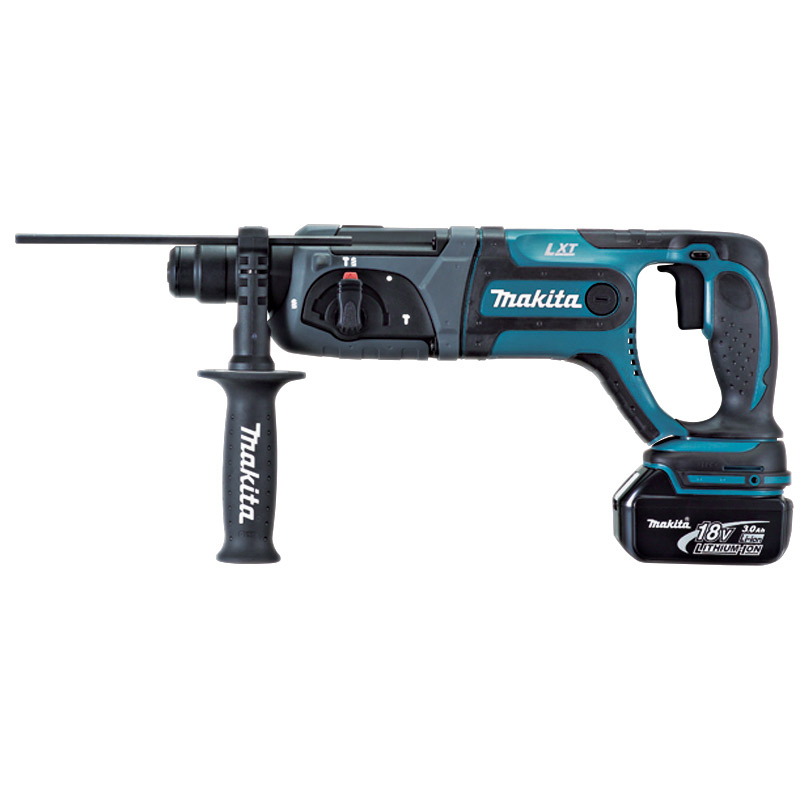

DHR241
Specifications.
- 18V LXT Li-Ion Cordless 20 mm (13/16″) Combination Hammer, SDS-PLUS Bits
- 0 – 1,100 RPM and 0 – 4,000 BPM for Demanding Applications
- Makita-built variable speed motor delivers 0-1,100 RPM and 0-4,000 BPM
- Synchronized RPM and BPM prevents overlapping impacts for up to 50% more efficient drilling
- 3-mode operation: “rotation only”, “hammering with rotation” or “hammering only”
- Job site tested shock absorbent handle protects the battery housing for durability
- Built-in clutch reduces gear damage by disengaging gears if bit binds
- One-touch sliding chuck for quick bit changes
- Ergonomic D-shaped handle with rubberized soft grip for increased comfort and control
- Large 2-finger variable speed trigger for added convenience
- Chisel rotates 360° with 40 different positions
- Compact design and lightweight for reduced fatigue
- Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
- Rubber housing bumper protects mode selector switch and gear housing from damage
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Side grip with elastomer soft grip
- 1.9 Joules (EPTA) impact energy delivers high performance
- Depth gauge for increased drilling consistency
- Variable speed trigger allows operator to adjust speed based on materials or application
- Conveniently located push button for rotation reverse. Electric brake for maximum productivity and increased operator safety. Battery protection circuit protects against overloading, over-discharging and over-heating. Externally accessible brushes for easy serviceability

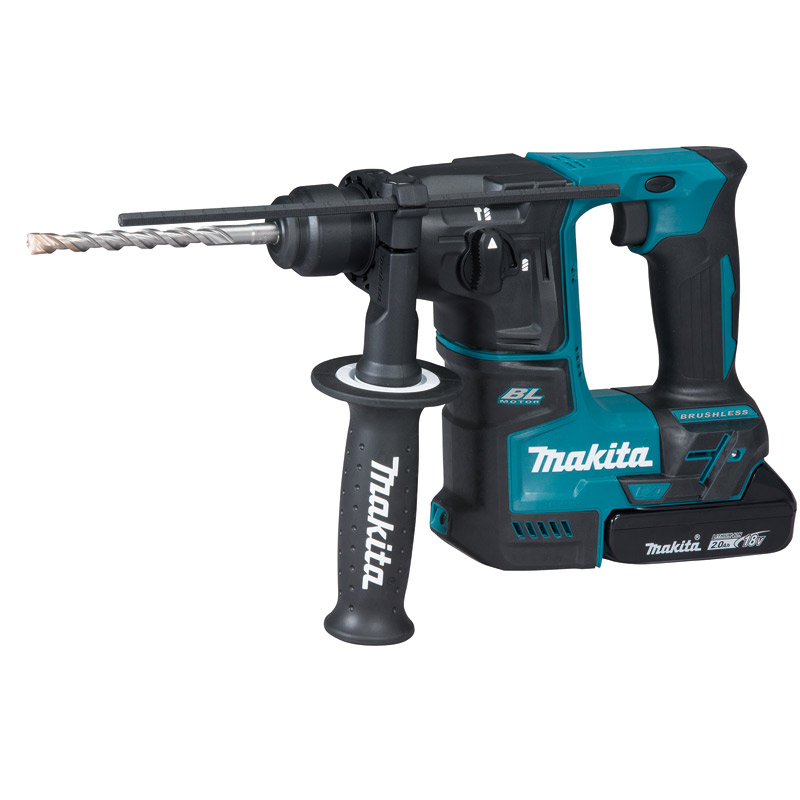

DHR171
Specifications
- 18V LXT BL Brushless Cordless 17 mm (11/16″) Rotary Hammer, SDS-PLUS Bits
- BL Motor Delivers 0-680 RPM, 0-4,800 BPM and 1.2 Joules of Impact Energy for Faster Drilling
- Compact and lightweight for reduced operator fatigue
- Vibration absorbing housing and ergonomic soft rubber grip design for vibration absorption and comfortable operation
- BL motor with high power to weight and size ratio
- BL motor generates less heat buildup and is ideal for prolonged use in high production applications
- BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Dust cup connectable to Makita vacuum cleaner (country-specific): Suitable for upward operation: For cleaner work environment
- Built-in LED light with afterglow function illuminates the work area
- 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Side grip with elastomer soft grip
- One touch sliding chuck enables quick and easy bit changes
- Variable speed trigger allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Depth gauge for increased drilling consistency
- Conveniently located push button for rotation reverse
- Electric brake for maximum productivity and increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating. Optional hook is convenient for temporarily hanging the tool

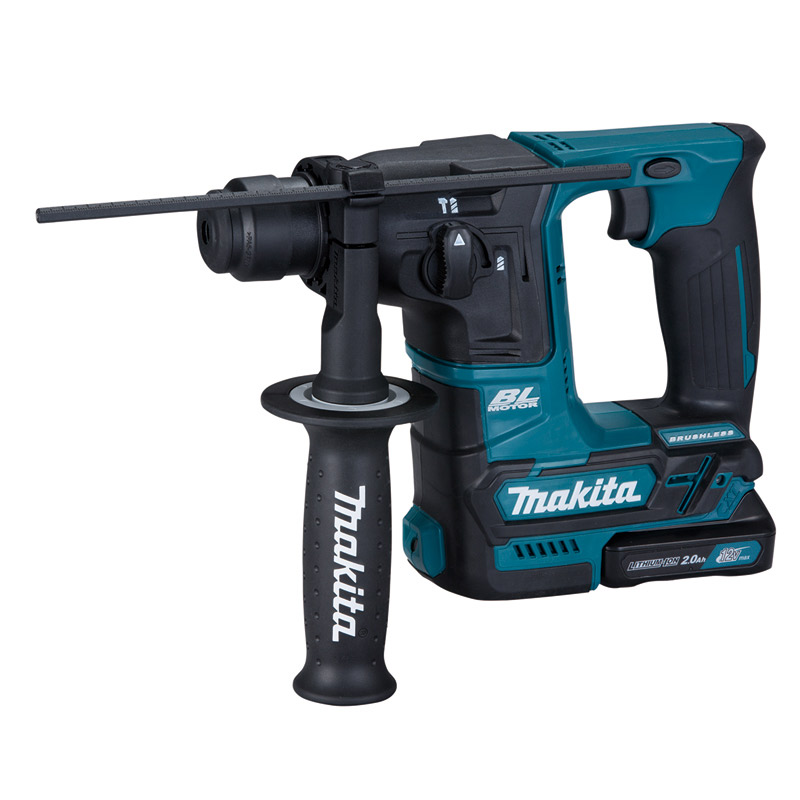

HR166D
Specifications
- 12V max CXT BL Brushless Cordless 16 mm (5/8″) Rotary Hammer, SDS-PLUS Bits
- High-efficiency drilling: Provides up to 50% more runtime, up to 40% more speed*¹
- 1.1 Joules (EPTA) impact energy delivers high performance
- Compact, lightweight “palm-size” design for ultimate usability: Suitable for upward and horizontal applications
- Vibration absorbing housing and ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Close-to-hand gravity center for optimum balance and control
- BL motor with high power to weight and size ratio
- BL motor generates less heat buildup and is ideal for prolonged use in high production applications
- BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Dust cup connectable to Makita vacuum cleaner (country-specific): Suitable for upward operation: For cleaner work environment
- Built-in LED light with afterglow function illuminates the work area
- 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Side grip with elastomer soft grip
- One touch sliding chuck enables quick and easy bit changes
- Variable speed trigger allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Depth gauge for increased drilling consistency
- Conveniently located push button for rotation reverse. Electric brake for maximum productivity and increased operator safety. Slide style battery and improved ergonomic grip. Battery protection circuit protects against overloading, over-discharging and over-heating. Multi-contact terminals ensure stable contact with battery. Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size. Optional hook is convenient for temporarily hanging the tool
HR140D
Specifications.
- 12V max CXT Li-Ion Cordless 14 mm (9/16″) Rotary Hammer, SDS-PLUS Bits
- Delivers 0-850 RPM, 0-4,900 BPM and 1.0 Joules of Impact Energy for Faster Drilling
- Compact and lightweight for reduced operator fatigue
- Vibration absorbing housing and ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Dust cup connectable to Makita vacuum cleaner (country-specific): Suitable for upward operation: For cleaner work environment
- Built-in LED light with afterglow function illuminates the work area
- 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Side grip with elastomer soft grip
- One touch sliding chuck enables quick and easy bit changes
- Variable speed trigger allows operator to adjust speed based on materials or application
- Depth gauge for increased drilling consistency
- Conveniently located push button for rotation reverse
- Electric brake for maximum productivity and increased operator safety
- Slide style battery and improved ergonomic grip
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Multi-contact terminals ensure stable contact with battery even under extreme vibration
- Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
- Optional hook is convenient for temporarily hanging the tool

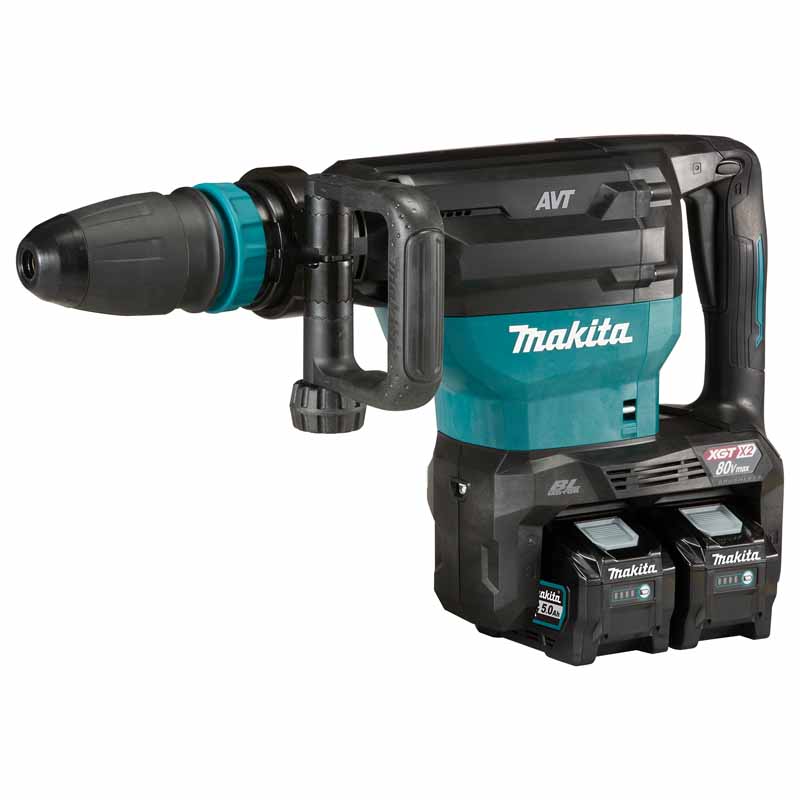

HM002G
Specifications
- 40Vmax X2 (80Vmax) XGT BL AWS AVT SOFT NO LOAD 20.9 J Demolition Hammer, SDS-MAX Bits
- 40Vmax X2 (80Vmax) XGT BL AWS AVT SOFT NO LOAD 20.9 J Demolition Hammer, SDS-MAX Bits
- 40Vmax X2 (80Vmax) & BL motor for 20.9 J high power
- Vibration absorbing handle provides comfortable operation
- Anti-Vibration Technology (AVT) ensures extra-low vibration performance
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Soft no-load function ensures low vibration performance
- Twin LED lights with preglow and afterglow functions for better illumination
- Powerful BL motor delivers 20.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- Variable speed control dial enables user to match the speed to the application for greater versatility
- 12 bit angle settings allow the bit to be set at different positions for operating convenience
- One-touch sliding chuck for easy bit changes
- Rubberized ergonomic soft grip provides more comfort
- Trigger lock-on/lock-off can be set simply by pushing the slide lever
- Extreme Protection Technology (XPT); For use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Optional dust extractor attachment; the same one as is already available for HM1213C, for cleaner work environment

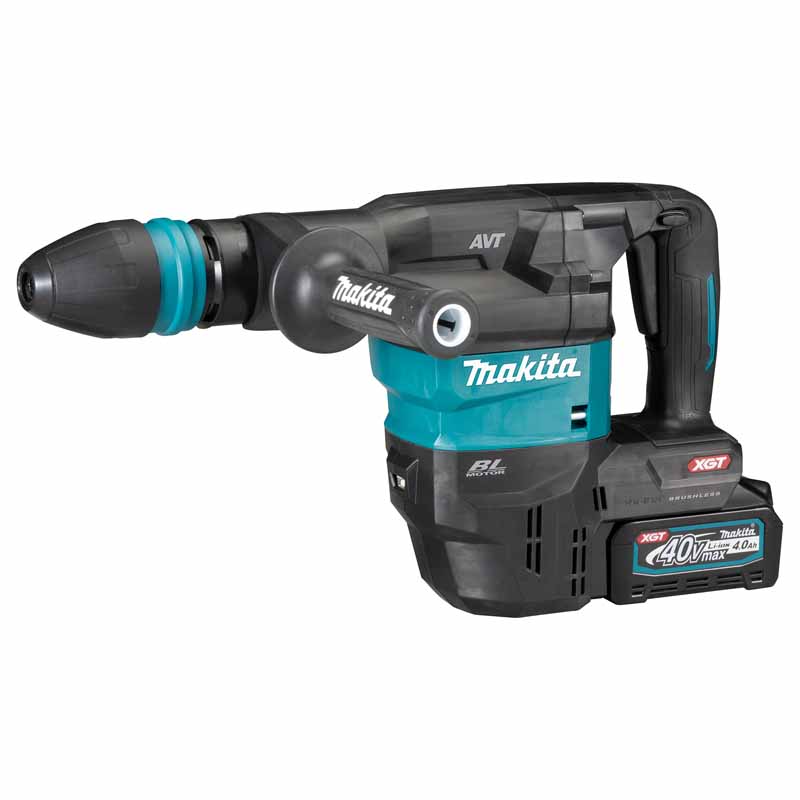

HM001G
Specifications
- 40Vmax XGT BL AWS AVT SOFT NO LOAD 9.4 J Cordless Demolition Hammer, SDS-MAX Bits
- 40Vmax XGT BL AWS AVT SOFT NO LOAD 9.4 J Cordless Demolition Hammer, SDS-MAX Bits
- High power and compact design
- Equipped with anti-vibration housing just like DHR400, reducing vibration not only to the hand holding the main handle, but also to the hand holding the side handle
- Use of one XGT battery instead of two LXT batteries minimizes increase in tool weight and dimensions, providing the same or higher power and maneuverability than corded models
- Anti-Vibration Technology (AVT) ensures extra-low vibration performance
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Soft no load function ensures low vibration performance
- Twin LED lights with preglow and afterglow functions for better illumination
- Powerful BL motor delivers 9.4 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- 5-stage max speed selection by dial with variable control by trigger in each range enables user to match the speed to the application for greater versatility
- 12 bit angle settings allow the bit to be set at different positions for operating convenience
- One-touch sliding chuck for easy bit changes
- Rubberized ergonomic soft grip can be installed on either side of the tool for increased operator convenience
- Trigger lock-on/lock-off can be set simply by pushing the slide lever
- Extreme Protection Technology (XPT); For use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Optional dust extractor attachment, the same one as is already available for HM0871C, for cleaner work environment
