Cordless Screwing & Drilling Machine

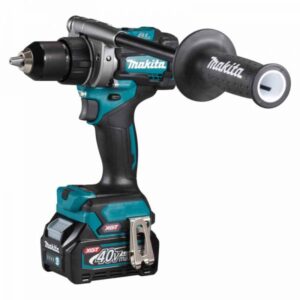

DF001G

Specifications

40Vmax XGT BL AFT Cordless 13 mm (1/2″) 125 N·m (1,100 in.lbs.) Driver Drill

Excellent performance in continuous heavy duty applications
Outstanding drilling speed; Delivers 20% or more higher speed than previous model
Increased max speed (0-2,600 RPM) in High mode for faster drilling speed in light duty applications
Variable 2-speed transmission (0-650 & 0-2,600 RPM) for a wide range of drilling and fastening applications
Compact overall length for easy handling and control
Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
Electronical clutch (41/21 settings in Low/High mode) allows for clutch setting in the torque range which cannot be covered
Jog dial for easy adjustment of fastening torque; with digital display for visual confirmation of selected torque
Electric brake for maximum productivity and increased operator safety
LED job light with afterglow feature illuminates the work area
All metal 13 mm self-ratcheting chuck for improved bit gripping strength and durability
Keyless chuck for quick and easy bit installation and removal
XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh conditions
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

DF002G

Specifications

40Vmax XGT BL Brushless Cordless 13 mm (1/2″) 65 N·m (580 in.lbs.) Driver Drill

Delivers higher drilling, driving and fastening speed than DDF484
Increased maneuverability due to more compact design than DDF484
Aluminum gear housing creates an impression of rigidity and luxuriousness
Variable 2-speed (0-600 & 0-2,200 RPM) for a wide range of drilling and fastening applications
Built-in twin LED lights with pre-glow and afterglow functions illuminate the work area
BL motor delivers 65 N·m (580 in.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
21 clutch settings and drill mode for added fastening control
Best possible ergonomic handle with soft grip for driver-drill applications
All metal gear construction for extra-high transmission durability
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 13 mm (1/2″) keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Electric brake for maximum productivity
Reversing switch is conveniently located. Durable, reversible belt clip convenient for temporary tool hanging

DDF486

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 125 N·m (1,100 in.lbs.) Driver Drill
Increased performance in continuous heavy-duty applications
Increased max clutch torque enables to adjust clutch torque even when tighteningfasteners into hard material
Compact and ergonomic design at only 178 mm long
BL motor delivers 125 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening and hammer drilling applications
All metal gears and gear housing for maximum job site durability
All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability
Lightweight for reduced operator fatigue
21 clutch settings and drill mode for added fastening control
3-stage LED gauge indicates battery charge level
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Twin LED lights with afterglow feature illuminate the work area
Electric brake for maximum productivity
Reversing switch is conveniently located

DDF484

Specifications

Delivers 25% more drilling, driving and fastening speed than previous model
Aluminum gear housing creates an impression of rigidity and luxuriousness
Compact and ergonomic design at only 172 mm (6-3/4″) long
Variable 2-speed (0-500 & 0-2,000 RPM) for a wide range of drilling and fastening applications
Built-in twin LED lights with pre-glow and afterglow functions illuminate the work area
BL motor delivers 60 N·m (530 in.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
21 Clutch settings and drill mode for added fastening control
Best possible ergonomic handle with soft grip for driver-drill applications
All metal gear construction for extra-high transmission durability
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 13 mm (1/2″) keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located. Durable, reversible belt clip convenient for temporary tool hanging

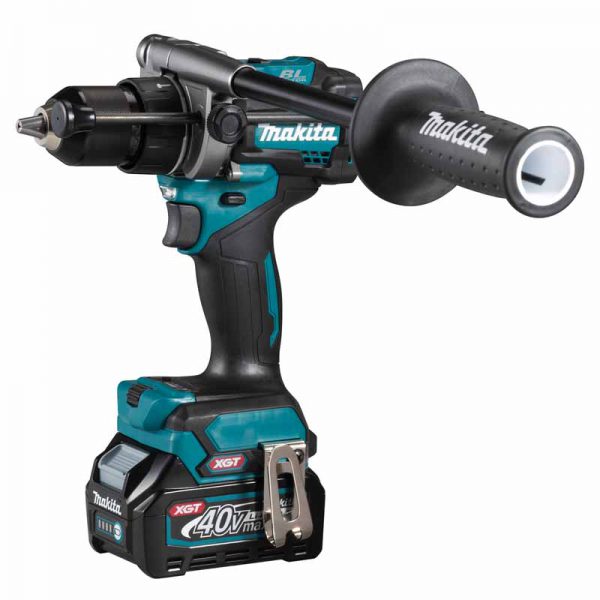

HP001G

Specifications

40Vmax XGT BL AFT Cordless 13 mm (1/2″) 125 N·m (1,100 in.lbs.) Hammer Driver Drill

Excellent performance in continuous heavy duty applications
Outstanding drilling speed; Delivers 20% or more higher speed than previous model
Increased max speed (0-2,600 RPM) in High mode for faster drilling speed in light duty applications
Variable 2-speed transmission (0-650 & 0-2,600 RPM) for a wide range of drilling, fastening and hammer drilling applications
Compact overall length for easy handling and control
Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
Electronical clutch (41/21 settings in Low/High mode) allows for clutch setting in the torque range which cannot be covered with mechanical clutch
Jog dial for easy adjustment of fastening torque; with digital display for visual confirmation of selected torque
Electric brake for maximum productivity and increased operator safety
LED job light with afterglow feature illuminates the work area
All metal 13 mm self-ratcheting chuck for improved bit gripping strength and durability
Keyless chuck for quick and easy bit installation and removal
Depth gauge for increased drilling consistency
XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh conditions
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

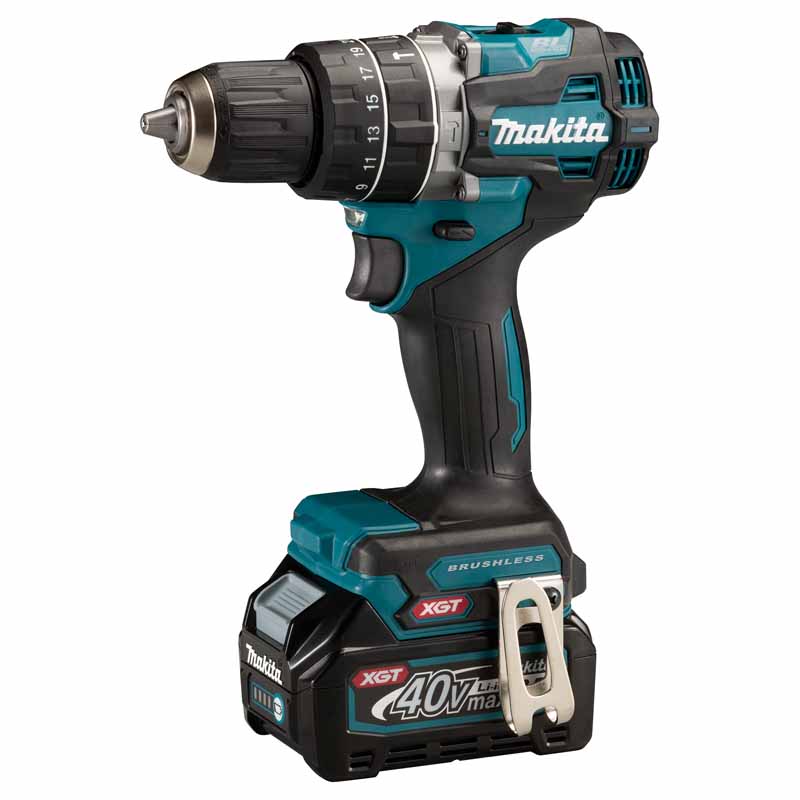

HP002G

Specifications

40Vmax XGT BL Brushless Cordless 13 mm (1/2″) 65 N·m (580 in.lbs.) Hammer Driver Drill
Delivers higher hammer drilling speed than DHP484
Increased maneuverability due to more compact design than DHP484
Aluminum gear housing creates the impression of rigidity of the machine
Variable 2-speed (0-600 & 0-2,200 RPM) for a wide range of drilling, fastening and hammer drilling applications
0-33,000 IPM for fast hammer drilling in masonry materials
BL motor delivers 65 N·m (580 in.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
Best possible ergonomic handle with soft grip for driver-drill applicatios provides increased comfort on the job
All metal gears for increased durability
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 13 mm (1/2″) keyless chuck for quick bit changes
21 clutch settings and drill mode for added fastening control
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Battery protection circuit protects against overloading, over-discharging and over-heating

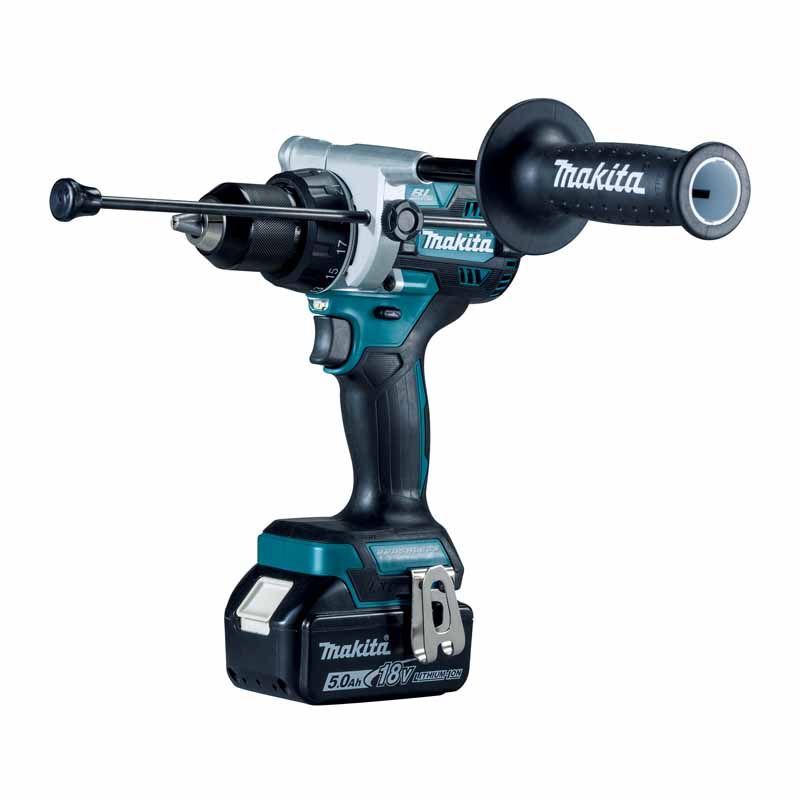

DHP486

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 125 N·m (1,100 in.lbs.) Hammer Driver Drill
Increased performance in continuous heavy-duty applications
Increased max clutch torque enables to adjust clutch torque even when tighteningfasteners into hard material
Compact and ergonomic design at only 178 mm long
0-31,500 IPM for fast hammer drilling in masonry materials
BL motor delivers 125 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening and hammer drilling applications
All metal gears and gear housing for maximum job site durability
All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability
Lightweight for reduced operator fatigue
21 clutch settings and drill mode for added fastening control
3-stage LED gauge indicates battery charge level
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Twin LED lights with afterglow feature illuminate the work area
Electric brake for maximum productivity
Reversing switch is conveniently located

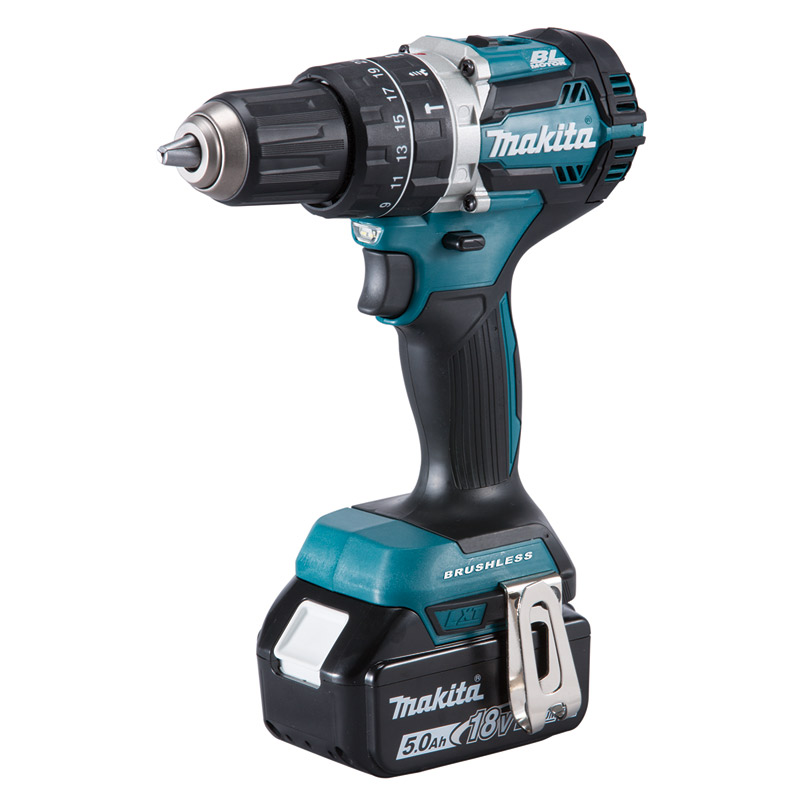

DHP484

Specifications

Delivers up to 55% higher hammer drilling speed than previous model
Aluminum gear housing creates the impression of rigidity of the machine
Compact and ergonomic design at only 182 mm (7-1/8″) long
Variable 2-speed (0-500 & 0-2,000 RPM) for a wide range of drilling, fastening and hammer drilling applications
0-30,000 IPM for fast hammer drilling in masonry materials
BL motor delivers 60 N·m (530 in.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
Best possible ergonomic handle with soft grip for driver-drill applicatios provides increased comfort on the job
All metal gears for increased durability
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 13 mm (1/2″) keyless chuck for quick bit changes
21 Clutch settings and drill mode for added fastening control
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Battery protection circuit protects against overloading, over-discharging and over-heating
Electric brake for maximum productivity and increased operator safety. Reversing switch is conveniently located. Durable, reversible belt clip convenient for temporary tool hanging

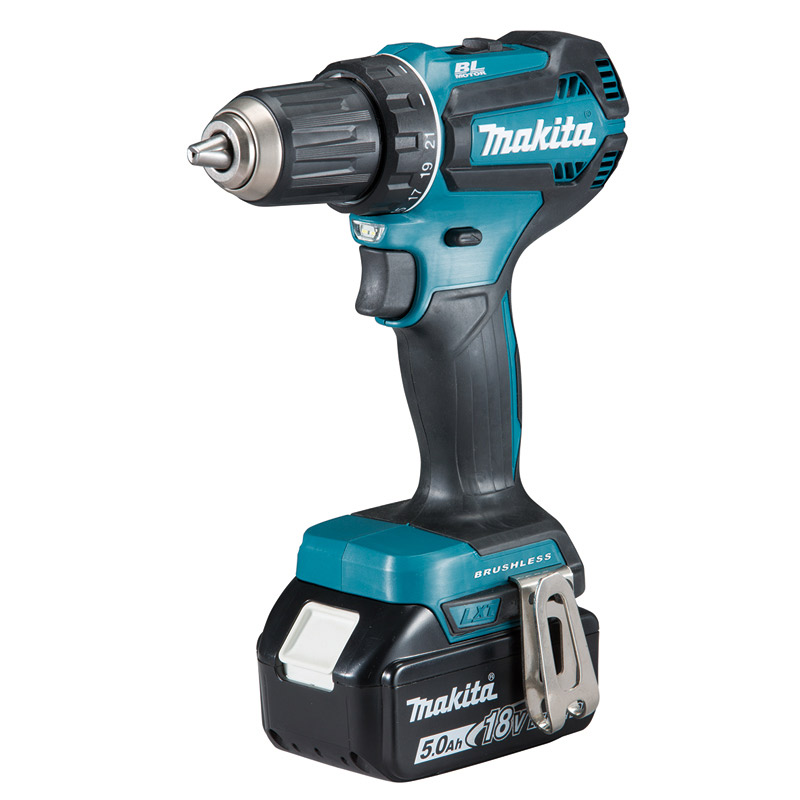

DDF485

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 50 N·m (440 in.lbs.) Driver Drill

Max 1,900 RPM & 50 N·m (440 in.lbs.) for Increased Efficiency
Compact design for reduced operator fatigue
Dual LED lights with preglow and afterglow functions illuminate the work area
Ergonomically designed grip for comfortable handling
Variable 2-speed (0-500 & 0-1,900 RPM) for a wide range of drilling and fastening applications
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 50 N·m (440 in.lbs.) of max torque
All metal gear construction provides increased durability
Soft grip provides increased comfort on the job
Convenient 13 mm (1/2″) keyless chuck for quick bit changes
21 adjustable torque settings plus drill mode
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Battery protection circuit protects against overloading, over-discharging and over-heating
Durable, reversible belt clip convenient for temporary tool hanging

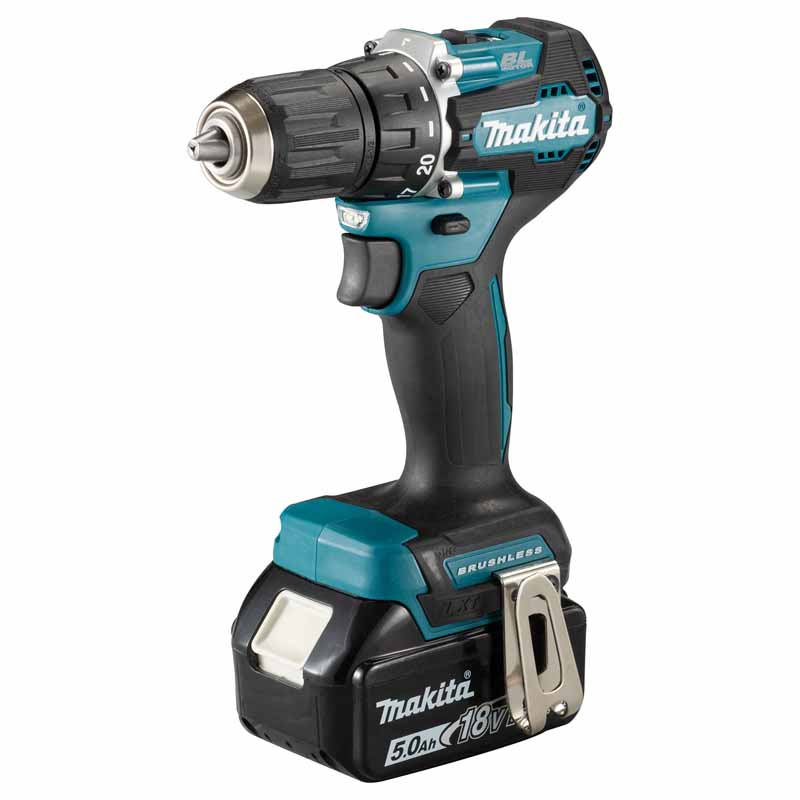

DDF487

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 40 N·m (350 in.lbs.) Driver Drill
Compact design at only 150 mm long for increased operability
Aluminum cover around gear housing case creates the impression of rigidity of the machine
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling and fastening applications
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 40 N·m (350 in.lbs.) of max torque
BL motor with high power to weight and size ratio
Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
Ergonomically designed handle with soft grip provides increased comfort
Convenient 13 mm keyless chuck for quick bit changes
20 clutch settings and drill mode for added fastening control
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Battery protection circuit protects against overloading, over-discharging and over-heating

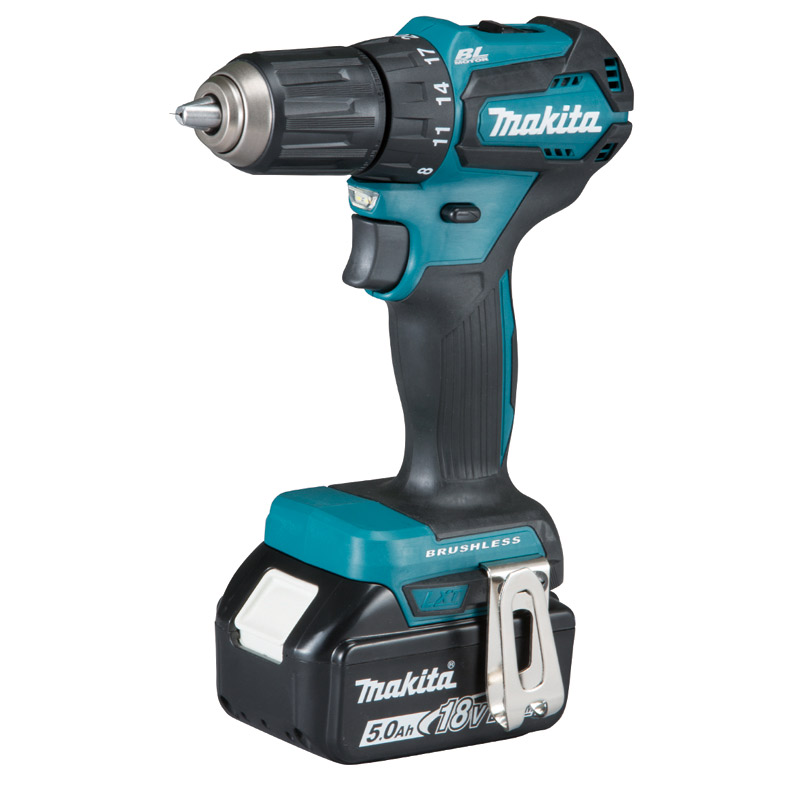

DDF483

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 40 N·m (350 in.lbs.) Driver Drill

Ultra-compact and ergonomic design at only 162 mm long and lightweight for reduced operator fatigue
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling and fastening applications
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 40 N·m of max torque
BL motor with high power to weight and size ratio
Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
Ergonomically designed handle with soft grip provides increased comfort
Convenient 13 mm keyless chuck for quick bit changes
20 Clutch settings and drill mode for added fastening control
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Battery protection circuit protects against overloading, over-discharging and over-heating
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging

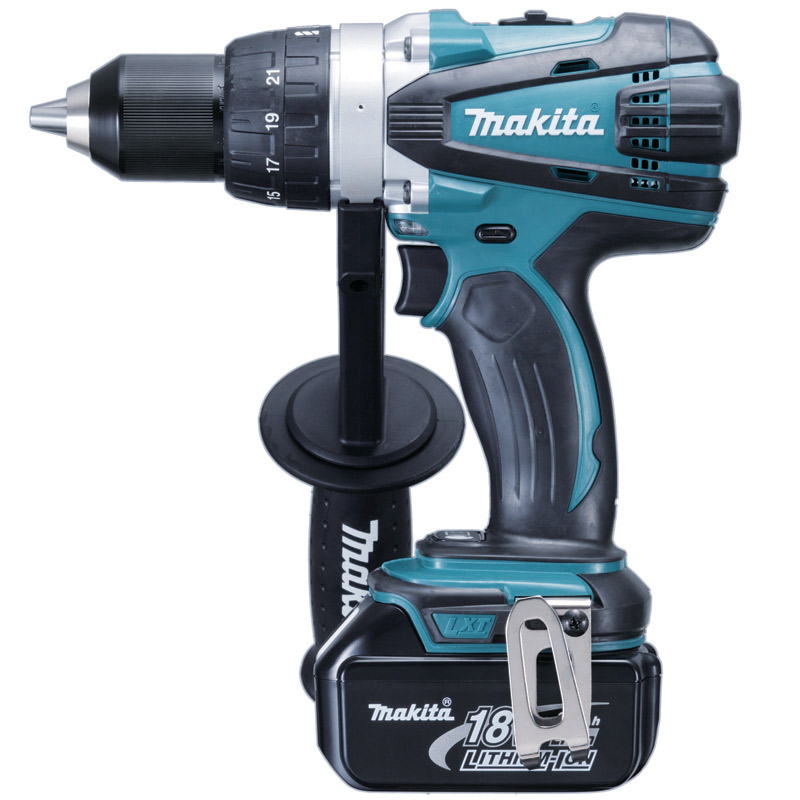

DDF458

Specifications

18V LXT Li-Ion Cordless 13 mm (1/2″) 84 N·m (750 in.lbs.) Driver Drill

Delivers 91 N·m (810 in.lbs.) of Max Torque
Mechanical 2-speed transmission (0 – 400 & 0 – 2,000 RPM) covers a wide range of drilling and fastening applications
Compact design at only 225 mm (8-7/8″) long and lightweight for reduced operator fatigue
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
All metal gears and aluminum gear housing for maximum jobsite durability
Dual LED lights with afterglow enhanced illumination of work area
Ergonomic shape fits like a glove with even pressure and easy control
Soft grip handle provides increased comfort on the job
Single sleeve keyless chuck allows for easy bit installation/removal
High power to weight ratio obtained by employing a 4-pole motor
Battery fuel gauge for increased maneuverability
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Belt clip and bit holder convenient for both right and left-handed users
Battery protection circuit protects against overloading, over-discharging and over-heating
21 clutch settings and drill mode for added fastening control

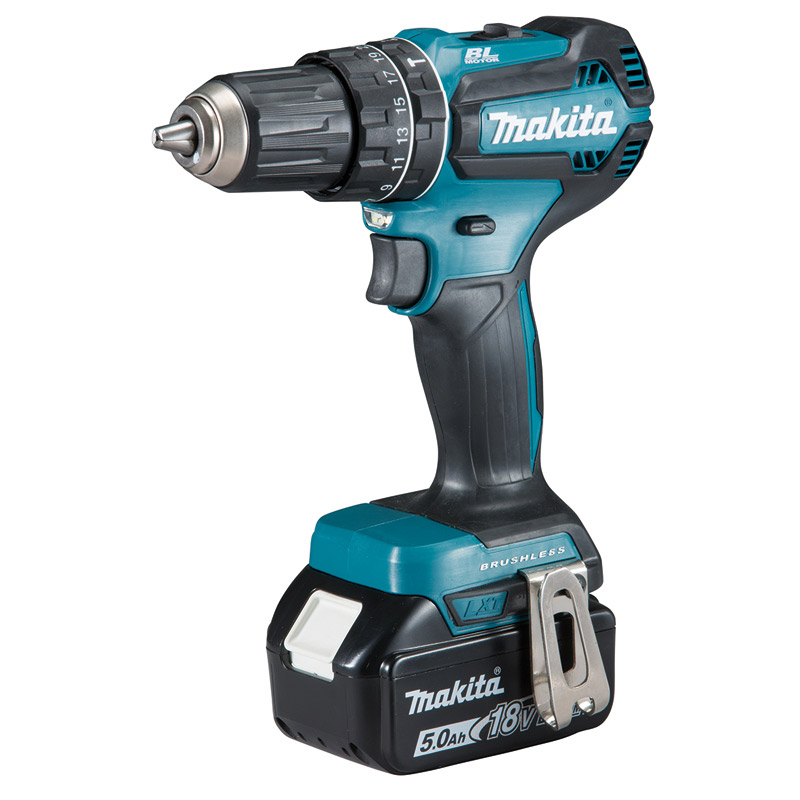

DHP485

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 50 N·m (440 in.lbs.) Hammer Driver Drill

Max 1,900 RPM, 28,500 IPM & 50 N·m (440 in.lbs.) for Increased Efficiency
Compact design for reduced operator fatigue
Dual LED lights with preglow and afterglow functions illuminate the work area
Ergonomically designed grip for comfortable handling
Variable 2-speed (0-500 & 0-1,900 RPM) for a wide range of drilling, fastening and hammer drilling applications
0-28,500 IPM for fast hammer drilling in masonry materials
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 50 N·m (440 in.lbs.) of max torque
All metal gear construction provides increased durability
Soft grip provides increased comfort on the job
Convenient 13 mm (1/2″) keyless chuck for quick bit changes
21 adjustable torque settings plus drill mode
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Battery protection circuit protects against overloading, over-discharging and over-heating
Durable, reversible belt clip convenient for temporary tool hanging

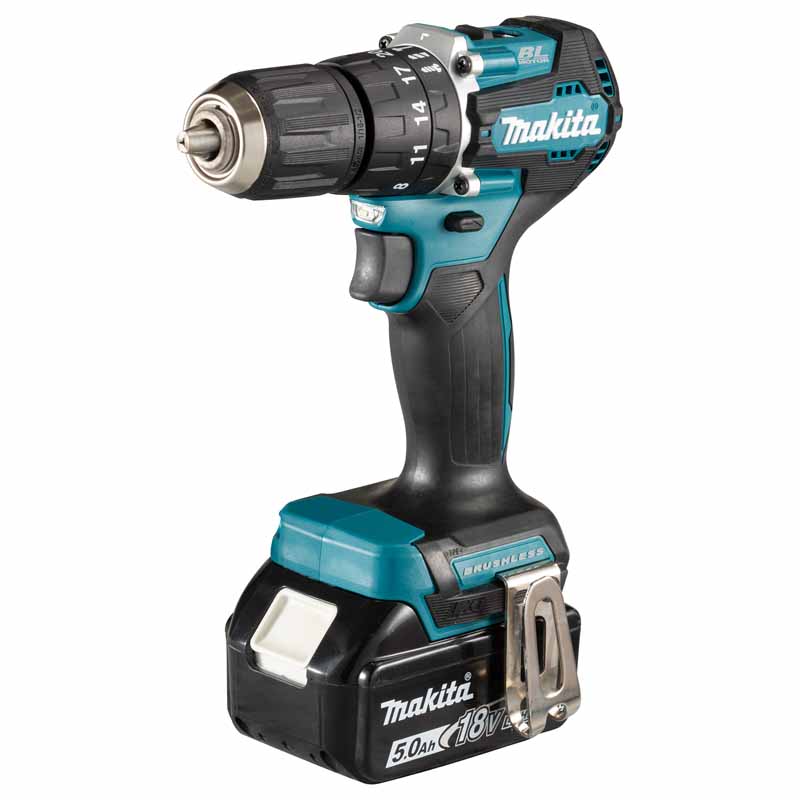

DHP487

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 40 N·m (350 in.lbs.) Hammer Driver Drill
Compact design at only 164 mm long for increased operability
Aluminum diecast cover around gear housing case creates the impression of rigidity of the machine
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling, fastening and hammer drilling applications
0-25,500 IPM for fast hammer drilling in masonry materials
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 40 N·m (350 in.lbs.) of max torque
BL motor with high power to weight and size ratio
Built-in twin LED lights with pre-glow and afterglow functions illuminate the work area
Ergonomically designed handle with soft grip provides increased comfort
Convenient 13 mm keyless chuck for quick bit changes
20 clutch settings and drill mode for added fastening control
Reversing switch is conveniently located

DHP458

Specifications

18V LXT Li-Ion Cordless 13 mm (1/2″) 84 N·m (750 in.lbs.) Hammer Driver Drill

Delivers 84 N·m (750 in.lbs.) of Max Torque
Mechanical 2-speed transmission (0 – 400 & 0 – 2,000 RPM) covers a wide range of drilling, fastening and hammer drilling applications
Compact design at only 225 mm (8-7/8″) long and lightweight for reduced operator fatigue
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
All metal gears and aluminum gear housing for maximum jobsite durability
Dual LED lights with afterglow enhanced illumination of work area
Ergonomic shape fits like a glove with even pressure and easy control
Soft grip handle provides increased comfort on the job
All metal ratcheting chuck engineered to prevent bit slippage and improves bit rentention
Single sleeve keyless chuck allows for easy bit installation/removal
High power to weight ratio obtained by employing a 4-pole motor
Battery fuel gauge for increased maneuverability
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Belt clip and bit holder convenient for both right and left-handed users
Battery protection circuit protects against overloading, over-discharging and over-heating
21 clutch settings and drill mode for added fastening control

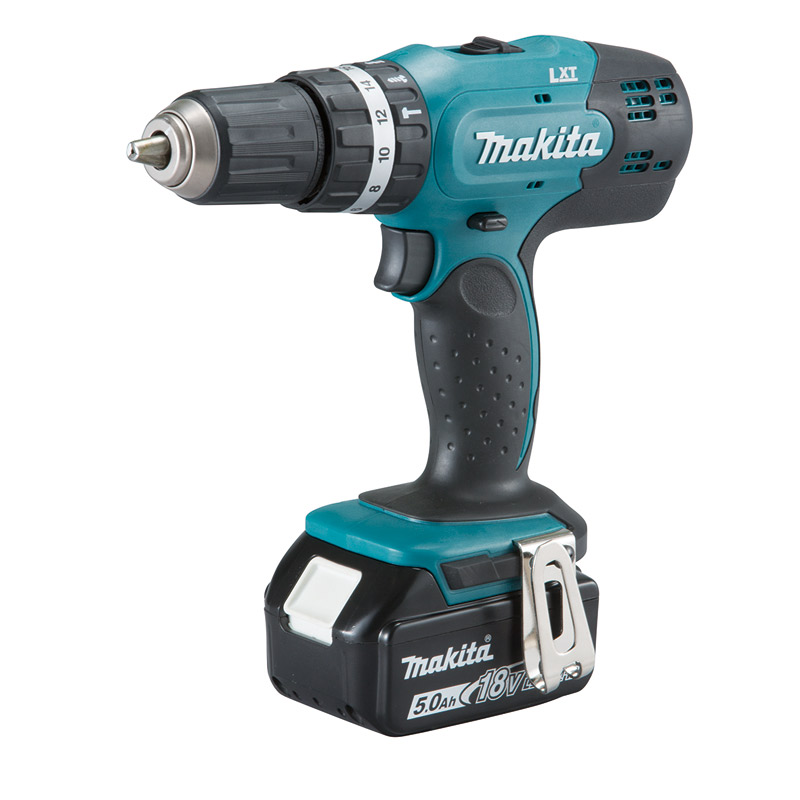

DHP453

Specifications

18V LXT Li-Ion Cordless 13 mm (1/2″) 38 N·m (340 in.lbs.) Hammer Driver Drill

Compact and lightweight design
Variable 2-speed design (0-400 & 0-1,300 RPM) covers a wide range of drilling, driving and hammer applications
All metal gear construction ensures high transmission durability
Single sleeve keyless chuck enables easy bit installation/removal with one hand
Ergonomically designed rubberized soft grip provides more control and comfort
Electric brake for maximum productivity and increased operator safety
16 Adjustable torque settings plus drill mode
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects the battery from overdischarge, high temperature and overload current

DDF482

Specifications

18V LXT Li-Ion Cordless 13 mm (1/2″) 54 N·m (480 in.lbs.) Driver Drill

High speed model with compact and lightweight design
Compact overall length: 185 mm for increased maneuverability
Lightweight for reduced operator fatigue
Higher speed of 1,900 RPM (High) and 600 RPM (Low)
Variable 2-speed transmission (0-600 & 0-1,900 RPM) for a wide range of drilling and fastening applications
Higher luminance twin LED Job light with preglow and afterglow functions
All metal gear construction for extra-high transmission durability
21 Clutch settings and drill mode for added fastening control
Newly designed ergonomic handle
Soft grip provides increased comfort on the job
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 13 mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging

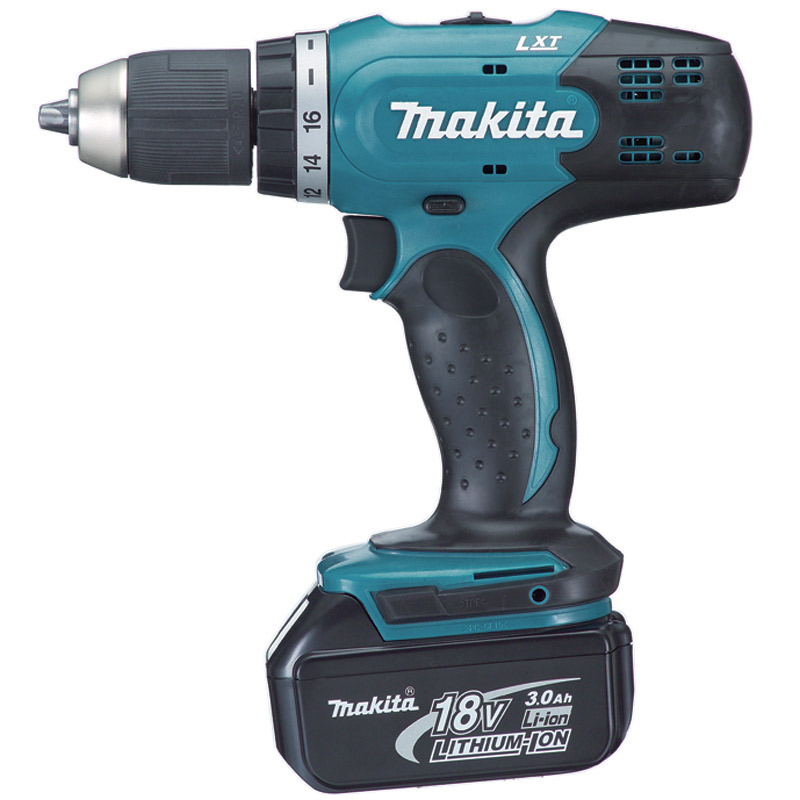

DDF453

Specifications

18V LXT Li-Ion Cordless 13 mm (1/2″) 38 N·m (340 in.lbs.) Driver Drill

Compact and lightweight design
Variable 2-speed design (0-400 & 0-1,300 RPM) covers a wide range of drilling, driving and hammer applications
All metal gear construction ensures high transmission durability
Single sleeve keyless chuck enables easy bit installation/removal with one hand
Ergonomically designed rubberized soft grip provides more control and comfort
Electric brake for maximum productivity and increased operator safety
16 adjustable torque settings plus drill mode
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects the battery from overdischarge, high temperature and overload current

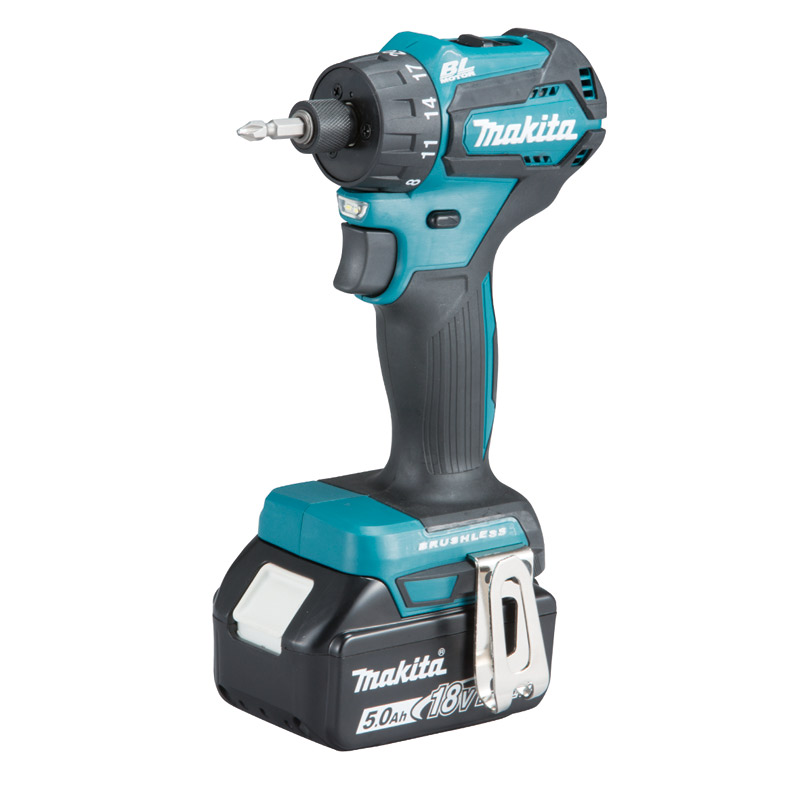

DDF083

Specifications

18V LXT BL Brushless Cordless 6.35 mm (1/4″) Hex 40 N·m (350 in.lbs.) Driver Drill

Ultra-compact and ergonomic design at only 124 mm long and lightweight for reduced operator fatigue
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling and fastening applications
Convenient 6.35 mm (1/4″) Hex chuck for quick bit changes
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 40 N·m of max torque
BL motor with high power to weight and size ratio
Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
Ergonomically designed handle with soft grip provides increased comfort
20 Clutch settings and drill mode for added fastening control
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Battery protection circuit protects against overloading, over-discharging and over-heating
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging

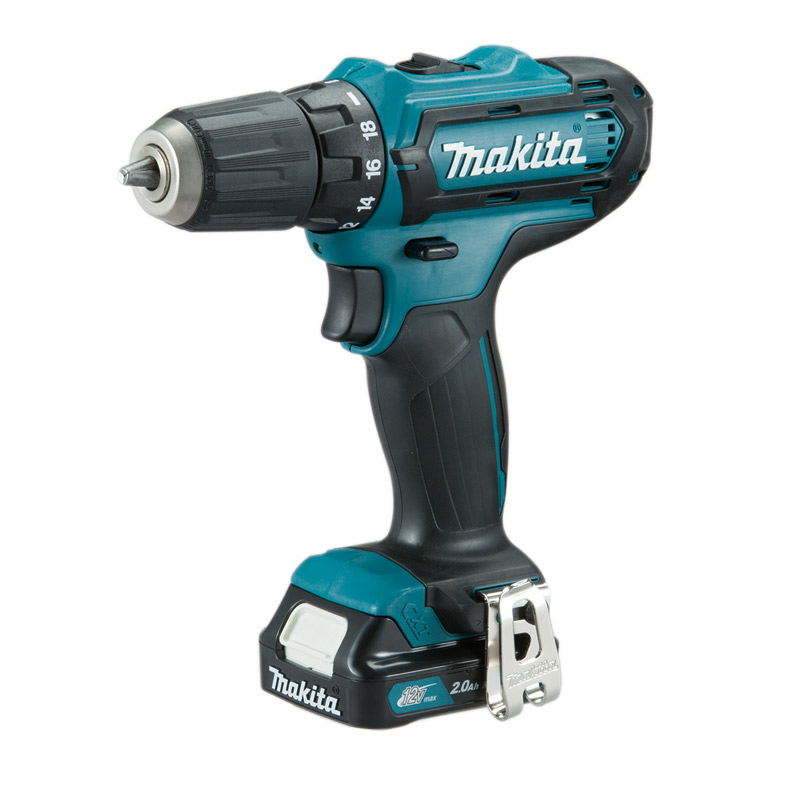

DF331D

Specifications

12V max CXT Li-Ion Cordless 10 mm (3/8″) 28 N·m (250 in.lbs.) Driver Drill

Slide style battery and improved ergonomic grip
Variable 2-speed (0-450 & 0-1,700 RPM) for a wide range of drilling and fastening applications
Increased motor power for higher application speed and max tightening torque
Best possible ergonomic handle for drilling applications
Ergonomically designed handle with soft grip provides increased comfort
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Compact and ergonomic design at only 189 mm long
Lightweight for reduced operator fatigue
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Convenient 10mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
18 Clutch settings and drill mode for added fastening control
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Reversing switch is conveniently located
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging
Ideal for work in tight spaces

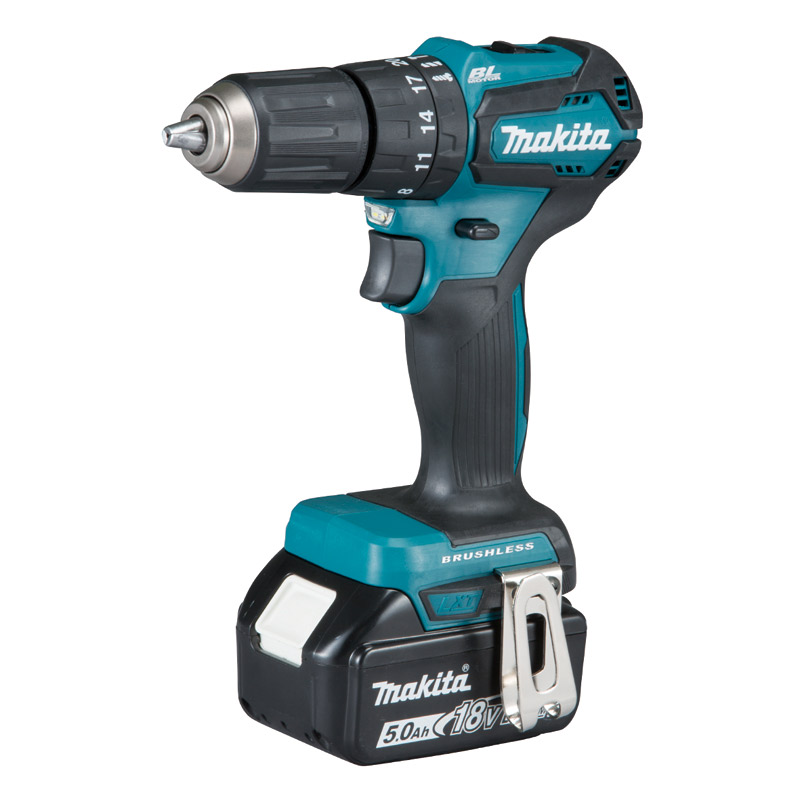

DHP483

Specifications

18V LXT BL Brushless Cordless 13 mm (1/2″) 40 N·m (350 in.lbs.) Hammer Driver Drill

Ultra-compact and ergonomic design at only 176 mm long and lightweight for reduced operator fatigue
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Variable 2-speed (0-500 & 0-1,700 RPM) for a wide range of drilling, fastening and hammer drilling applications
0-25,500 IPM for fast hammer drilling in masonry materials
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
BL motor delivers 40 N·m of max torque
BL motor with high power to weight and size ratio
Built-in dual LED lights with pre-glow and afterglow functions illuminate the work area
Ergonomically designed handle with soft grip provides increased comfort
Convenient 13 mm keyless chuck for quick bit changes
20 Clutch settings and drill mode for added fastening control
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Battery protection circuit protects against overloading, over-discharging and over-heating
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Electric brake for maximum productivity and increased operator safety
- Durable, reversible belt clip convenient for temporary tool hanging

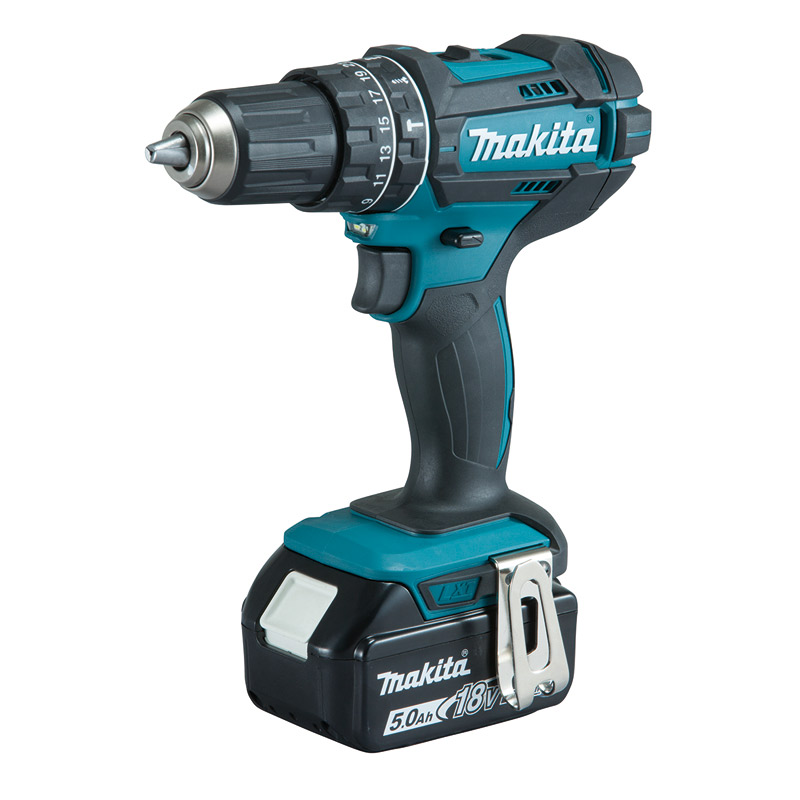

DHP482

Specifications

18V LXT Li-Ion Cordless 13 mm (1/2″) 54 N·m (480 in.lbs.) Hammer Driver Drill

High speed model with compact and lightweight design
Compact overall length: 198 mm for increased maneuverability
Lightweight for reduced operator fatigue
Higher speed of 1,900 RPM (High) and 600 RPM (Low)
Variable 2-speed transmission (0-600 & 0-1,900 RPM) for a wide range of drilling and fastening applications
Higher luminance twin LED Job light with preglow and afterglow functions
All metal gear construction for extra-high transmission durability
21 Clutch settings and drill mode for added fastening control
Newly designed ergonomic handle
Soft grip provides increased comfort on the job
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 13 mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging

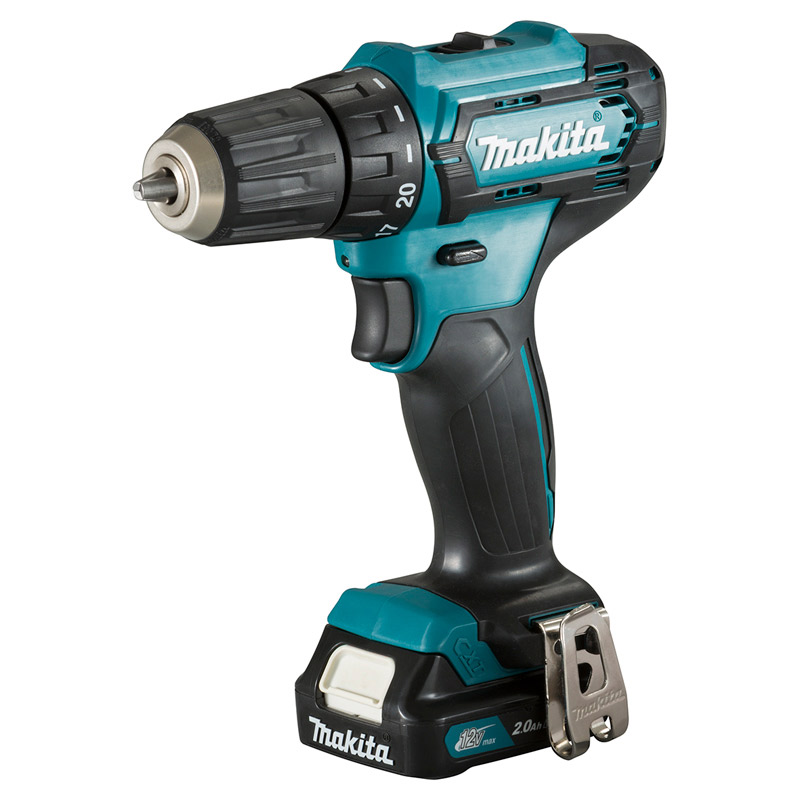

DF333D

Specifications

12V max CXT Li-Ion Cordless 10 mm (3/8″) 28 N·m (250 in.lbs.) Driver Drill

Compact and Ergonomic Design at Only 179 mm Long
Ball bearing reduces bit wobbling
Slide style battery and improved ergonomic grip
Variable 2-speed (0-450 & 0-1,700 RPM) for a wide range of drilling and fastening applications
Increased motor power for higher application speed and max tightening torque
Lightweight for reduced operator fatigue
Best possible ergonomic handle for drilling applications
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Battery protection circuit protects against overloading, over-discharging and over-heating
Convenient 10mm keyless chuck for quick bit changes
20 clutch settings and drill mode for added fastening control
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Reversing switch is conveniently located
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging. Ideal for work in tight spaces

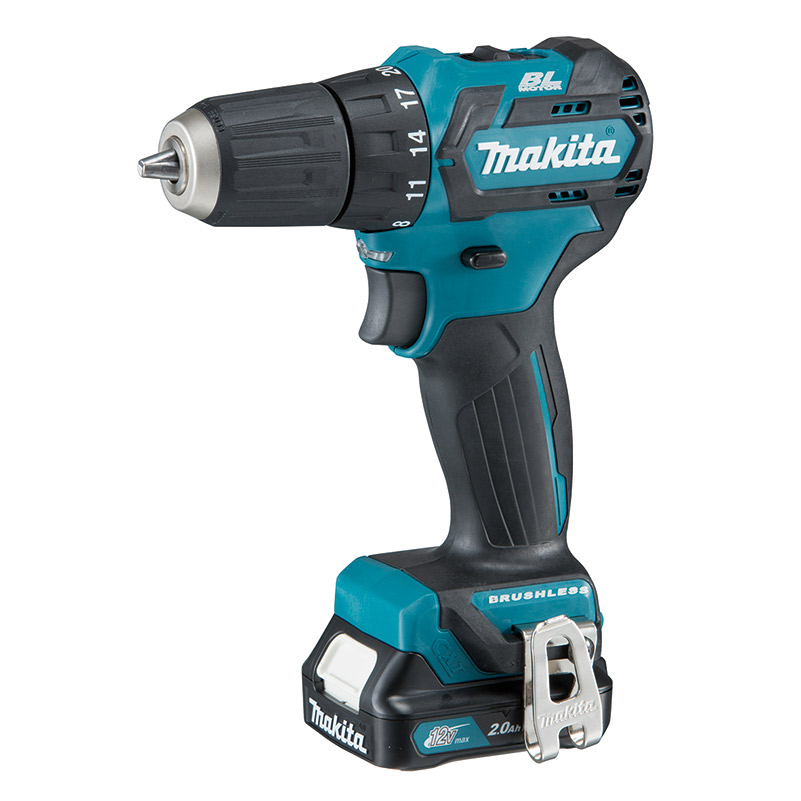

DF332D

Specifications

12V max CXT BL Brushless Cordless 10 mm (3/8″) 32 N·m (280 in.lbs.) Driver Drill

Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Li-Ion battery
Slide style battery and improved ergonomic grip
BL motor delivers 35 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor with high power to weight and size ratio
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Compact and ergonomic design at only 154 mm long
Lightweight for reduced operator fatigue
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Variable 2-speed (0-450 & 0-1,500 RPM) for a wide range of drilling and fastening applications
Best possible ergonomic handle for drilling applications
Convenient 10 mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
20 Clutch settings and drill mode for added fastening control. Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque. Reversing switch is conveniently located. Electric brake for maximum productivity and increased operator safety. Durable, reversible belt clip convenient for temporary tool hanging. Ideal for work in tight spaces. eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

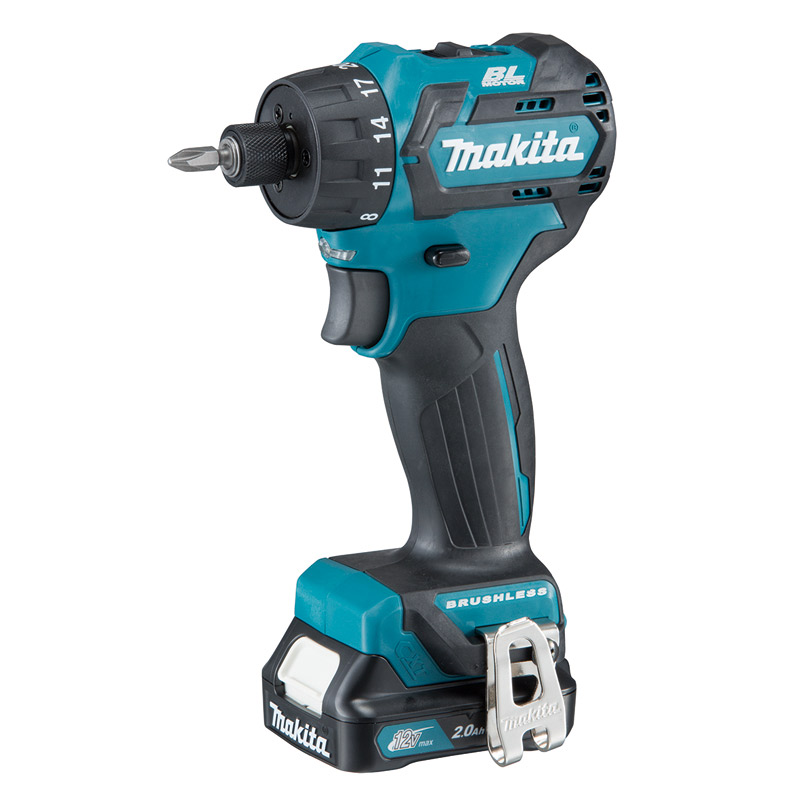

DF032D

Specifications

12V max CXT BL Brushless Cordless 6.35 mm (1/4″) Hex 32 N·m (280 in.lbs.) Driver Drill

Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Lithium-Ion battery
BL motor delivers 35 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor with high power to weight and size ratio
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Compact and ergonomic design at only 124 mm long
Lightweight for reduced operator fatigue
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Variable 2-speed design (0-450 & 0-1,500 RPM) covers a wide range of drilling and driving applications
Best possible ergonomic handle for drilling applications
Convenient 6.35 mm (1/4″) Hex chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
20 Clutch settings and drill mode for added fastening control
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque. Reversing switch is conveniently located. Electric brake for maximum productivity and increased operator safety. Durable, reversible belt clip convenient for temporary tool hanging. Ideal for work in tight spaces. eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

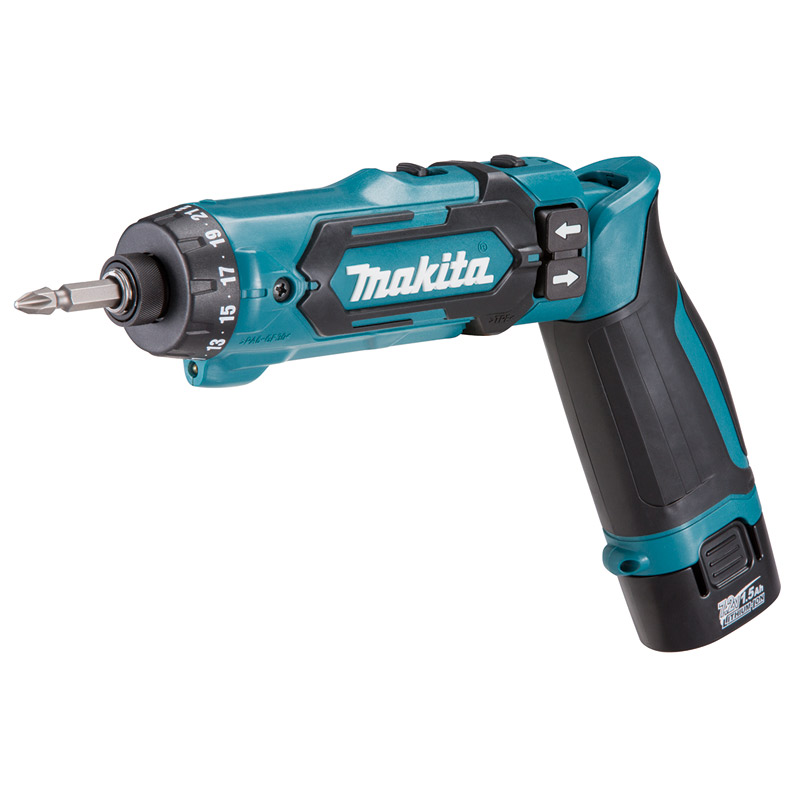

DF012D

Specifications

7.2V Li-Ion Cordless Two-Position 5 mm (3/16″) 8 N·m (71 in.lbs.) Driver Drill

Up to X2 More Work Amount than DF010D
Delivers 8.0 N·m (71 in.lbs.) of Max Torque in a compact design
Ultra-lightweight and compact tool
LED job light brightly illuminates a spot and the periphery by enlarging the illuminated area than DF010D
Compact 6.35 mm (1/4″) hex chuck for quick bit changes
Auto-stop clutch: tool shuts off when clutch disengages for extra fastening control; prevents overdriving the fastener
2-Speed design (200 RPM and 650 RPM) for high or low torque applications
Comfortable grip design operates in straight or pistol grip positions
Can be also used as a hand driver
Soft grip handle provides increased comfort on the job
21 Clutch settings and drill mode for added fastening control
Built-in LED light flashes when it is time to recharge the battery
Lock lever prevents accidental startup
Battery protection system automatically cuts off power to the motor when the remaining battery capacity gets too low to extend battery life

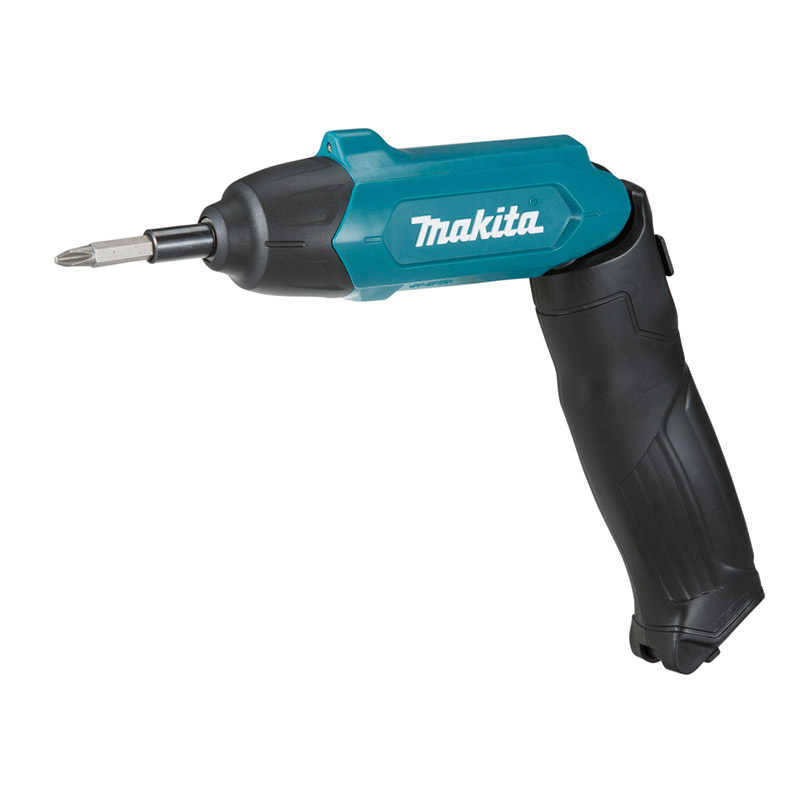

DF001D

Specifications

3.6V Li-Ion In-Line Cordless 6.0 N·m (53 in.lbs.) Screwdriver, Built-In Battery

Convenient in a narrow space
Operates in straight or pistol grip positions for comfortable operation
Delivers 6.0 N·m (53 in.lbs.) of max torque in a compact design
Work amount is about 1.4 times as large as 6723DW
Built-in LED job light with independent on/of switch
On/off switch with forward and reverse modes
Compact and lightweight for reduced operator fatigue
Soft grip handle provides increased comfort on the job
Powered by a built-in rechargeable battery
Includes Micro USB type AC adapter
Battery protection circuit protects against over-discharging and over-heating
Includes 81-piece bit set (country-specific)

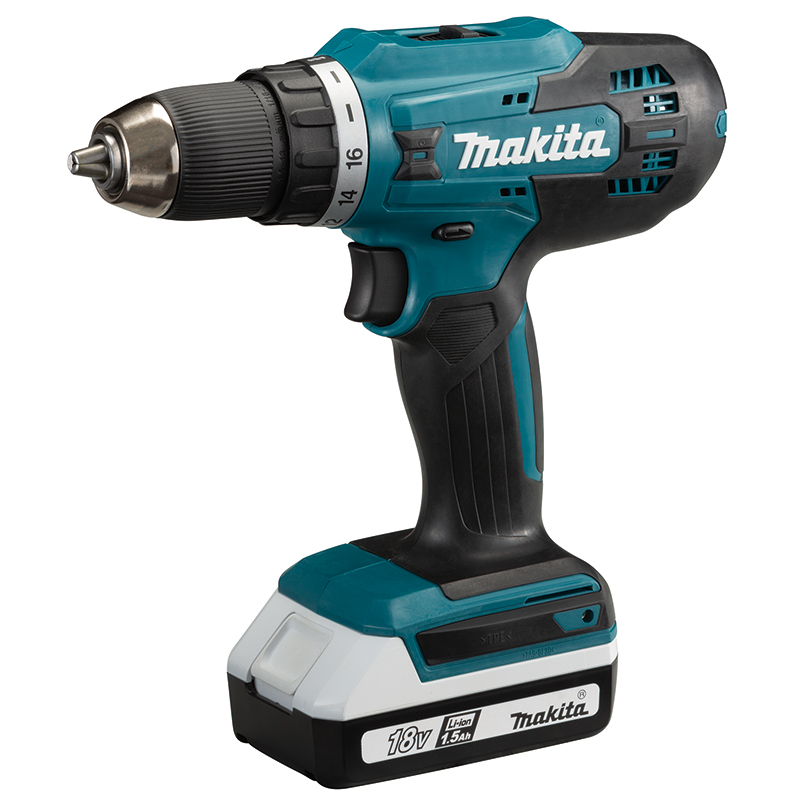

DF488D

Specifications

18V Li-Ion Cordless 13 mm (1/2″) 38 N·m (340 in.lbs.) Driver Drill, G-Batter

All metal gear construction ensures high transmission durability
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Variable speed control dial enables user to match the speed to the application
16 clutch settings and drill mode for added fastening control
Single sleeve keyless chuck allows for easy bit installation/removal with one hand
Rubberized soft grip provides more control and reduced fatigue
Compact and lightweight design for easy handling and high maneuverability
Low noise level for improved user comfort
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located
The G-series range from Makita is a different lithium-ion battery platform to the Makita LXT range of professional cordless power tools, and is powered exclusively by the G-series battery and DC18WA charger
Produced to a quality far exceeding that of DIY products, the G-series range offers a comprehensive catalogue of tools at an attractive market price
The G-Series battery is identifiable by the white or grey top section, and offers a 1.5 amp hour battery capacity in 18V platform
A 60-minute charge time is achieved with the G-Series DC18WA battery charger

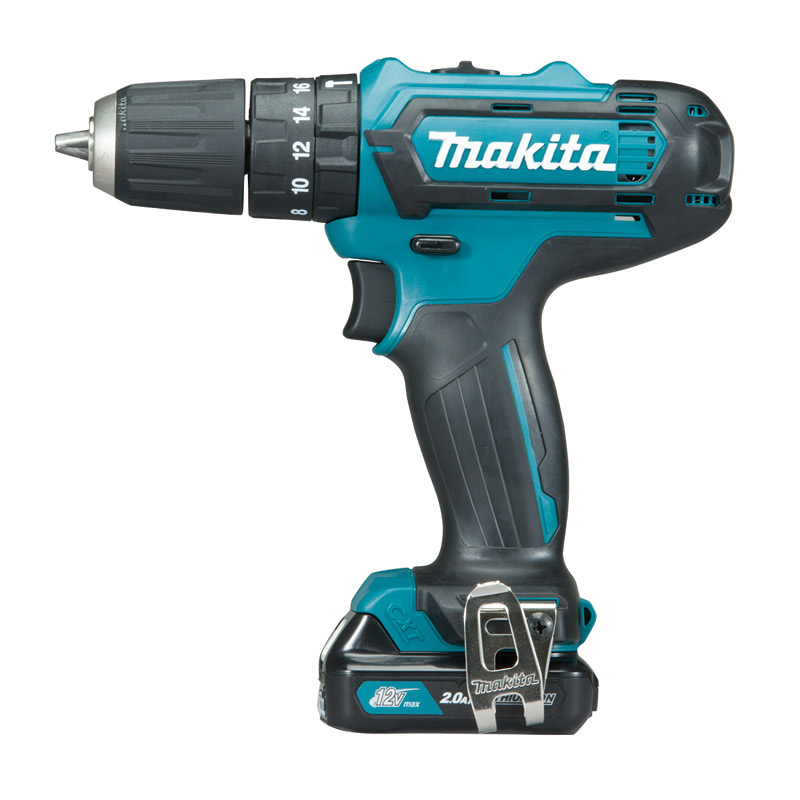

HP331D

Specifications.

12V max CXT Li-Ion Cordless 10 mm (3/8″) 28 N·m (250 in.lbs.) Hammer Driver Drill

Slide style battery and improved ergonomic grip
Variable 2-speed (0-450 & 0-1,700 RPM) for a wide range of drilling, fastening and hammer drilling applications
Increased motor power for higher application speed and max tightening torque
0-25,500 IPM for fast hammer drilling in masonry materials
Compact and ergonomic design at only 201mm long
Lightweight for reduced operator fatigue
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Best possible ergonomic handle for drilling applications
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Convenient 10mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
18 Clutch settings and drill mode for added fastening control
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging. Ideal for work in tight spaces

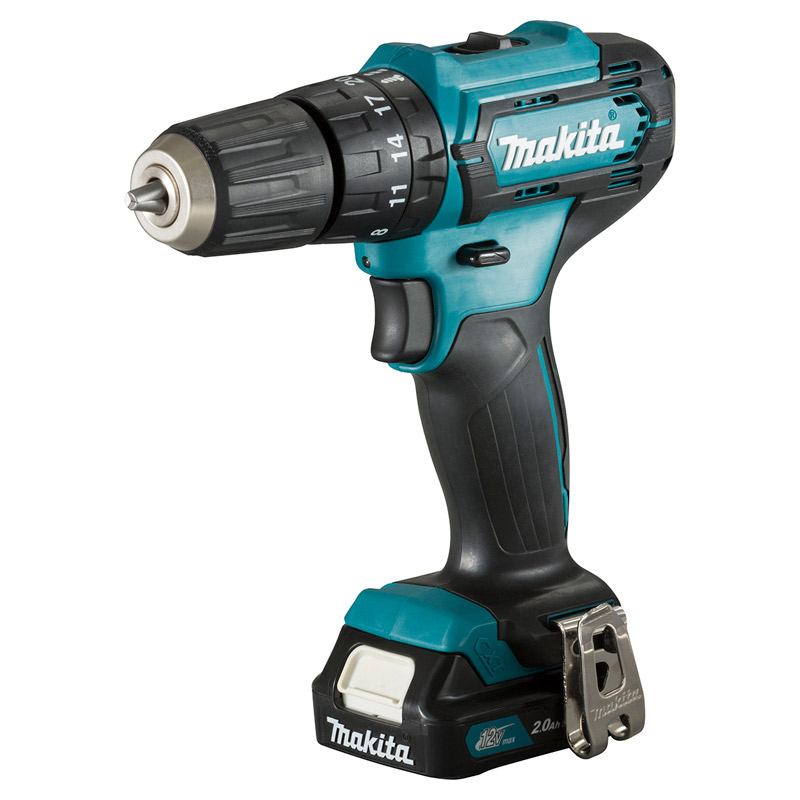

HP333D

Specifications

12V max CXT Li-Ion Cordless 10 mm (3/8″) 28 N·m (250 in.lbs.) Hammer Driver Drill

Compact and Ergonomic Design at Only 193 mm Long
Ball bearing reduces bit wobbling
Slide style battery and improved ergonomic grip
Variable 2-speed (0-450 & 0-1,700 RPM) for a wide range of drilling, fastening and hammer drilling applications
Increased motor power for higher application speed and max tightening torque
0-25,500 IPM for fast hammer drilling in masonry materials
Lightweight for reduced operator fatigue
Best possible ergonomic handle for drilling applications
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Battery protection circuit protects against overloading, over-discharging and over-heating
Convenient 10mm keyless chuck for quick bit changes
20 clutch settings and drill mode for added fastening control
Reversing switch is conveniently located
Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
Electric brake for maximum productivity and increased operator safety. Durable, reversible belt clip convenient for temporary tool hanging. Ideal for work in tight spaces

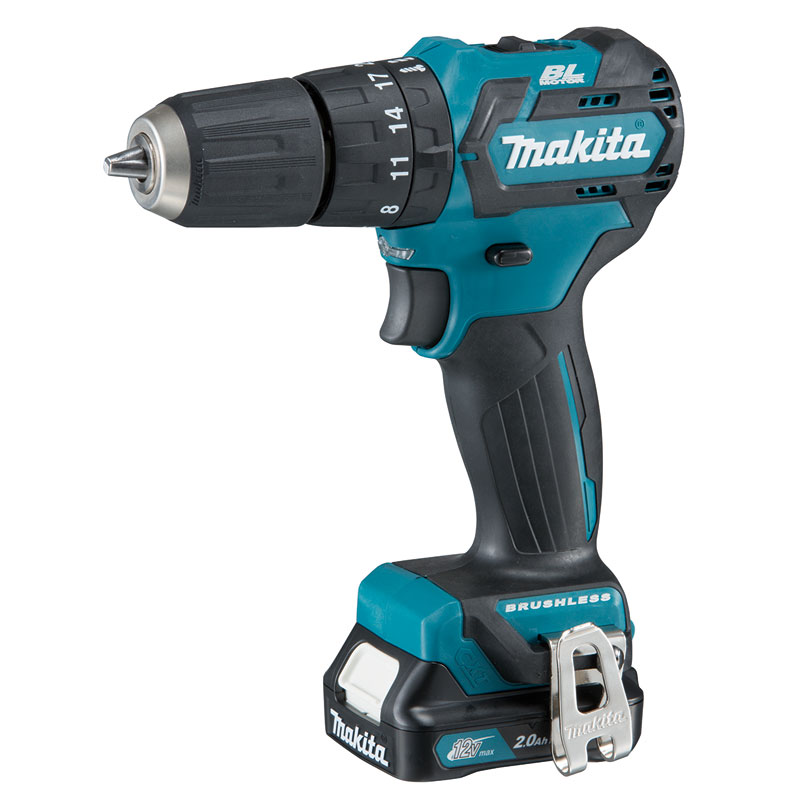

HP332D

Specifications

12V max CXT BL Brushless Cordless 10 mm (3/8″) 32 N·m (280 in.lbs.) Hammer Driver Drill

Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Lithium-Ion battery
BL motor delivers 35 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor with high power to weight and size ratio
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
0-22,500 IPM for fast hammer drilling in masonry materials
Compact and ergonomic design at only 168 mm long
Lightweight for reduced operator fatigue
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Variable 2-speed (0-450 & 0-1,500 RPM) for a wide range of drilling, fastening and hammer drilling applications
Best possible ergonomic handle for drilling applications
Convenient 10 mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
20 Clutch settings and drill mode for added fastening control. Reversing switch is conveniently located. Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque. Electric brake for maximum productivity and increased operator safety. Ideal for work in tight spaces. Durable, reversible belt clip convenient for temporary tool hanging. eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

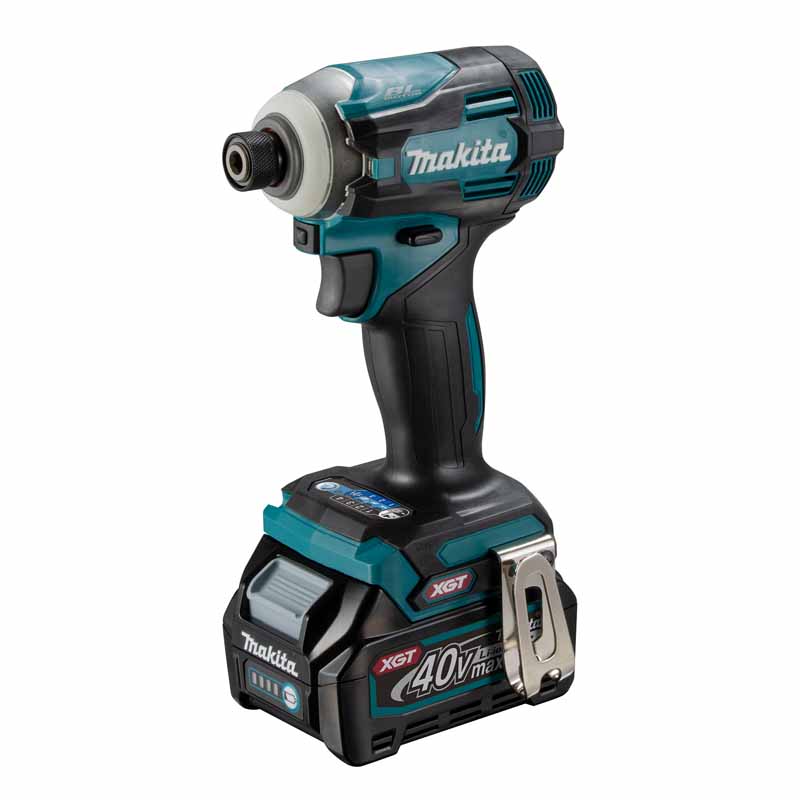

TD001G

Specifications

40Vmax XGT BL Brushless Cordless Wood/Bolt/T-Mode 220 N·m Impact Driver

High Power 220 N·m
Genuine solution for high demand industrial users
Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws
Delivers up to 50% higher work speed than DTD171
Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes)
Improved bolt modes for more convenience in tightening machine screws
Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity
New one-touch bit installation; In order to minimize the bit from unexpectedly falling off, more effective mechanism has been realized by increasing the spring load of the sleeve holding spring and by adding a coil spring not to increase resistance against insertion of the bit
One-touch speed selector provides precise fastening control for a wide range of applications
Enhanced anvil holder rigidity; Material change from Needle bearing to Ball bearing provides reduction of bit wobbling
Variable speed control by trigger for precise fastening in a wide variety of applications
Built-in LED light illuminates the work area
Phosphorescent bumper glows in dark places
Ergonomically designed handle with rubberized soft grip for increased comfort
Reversing switch is conveniently located
Electric brake for maximum productivity
Durable, reversible belt clip convenient for temporary tool hanging
eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Battery protection circuit protects against overloading, over-discharging and over-heating

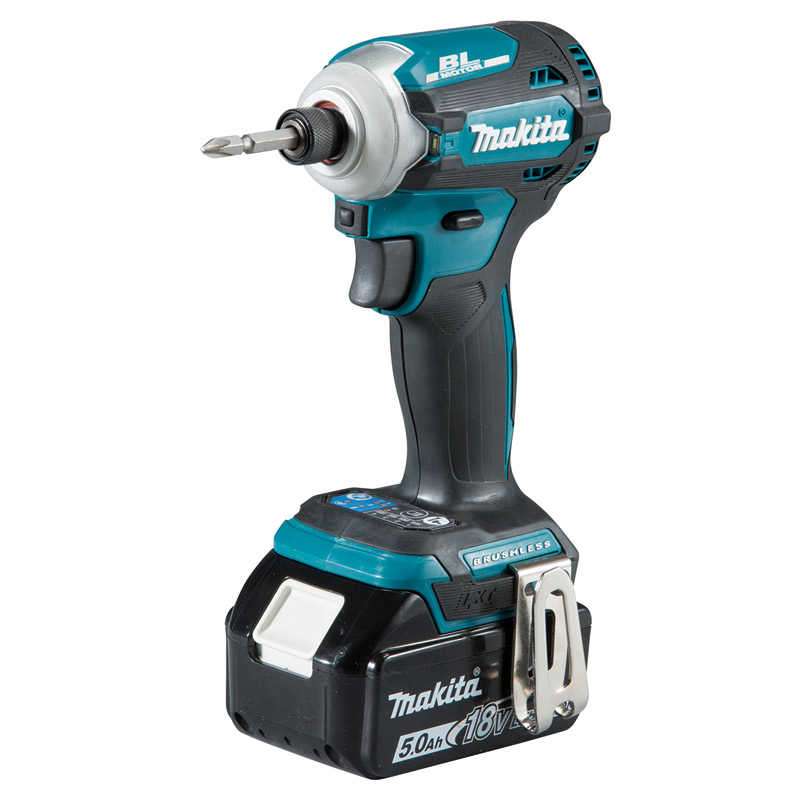

DTD171

Specifications

18V LXT BL Brushless Cordless Wood/Bolt/T-Mode 180 N·m Impact Driver

Wood/Bolt/T-Mode (1, 2)/Max/Hard/Medium/Soft Mode for Multiple Applications
Redesigned mode selection switch for one-handed mode selection
ULTRA-COMPACT and perfect balance at only 116 mm long for maximum control and maneuverability
Rigid anvil retention for reduced bit wobbling
Dual LED lights on both sides illuminate the work area for increased visibility
Power selection switch provides the user with precise fastening control for a wide range of applications
BL motor delivers 3,600 max RPM and 180 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
Convenient one-touch 6.35 mm (1/4″) hex chuck for quick bit changes (for some countries only)
Soft grip provides increased comfort on the job
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Phosphorescent bumper glows blue in dark places
Battery protection circuit protects against overloading, over-discharging and over-heating
Electric brake for maximum productivity and increased operator safety
Easy-to-operate, push button type F/R change switch
Durable, reversible belt clip convenient for temporary tool hanging. Battery protector for enhanced protection from dust and dripping water (available as an option) designed to protect the battery cartridge from dust and dripping water in outdoor applications or harsh environments. Tool catcher (available as an option) enables to hook the machine quickly on a snap hook of waist belt

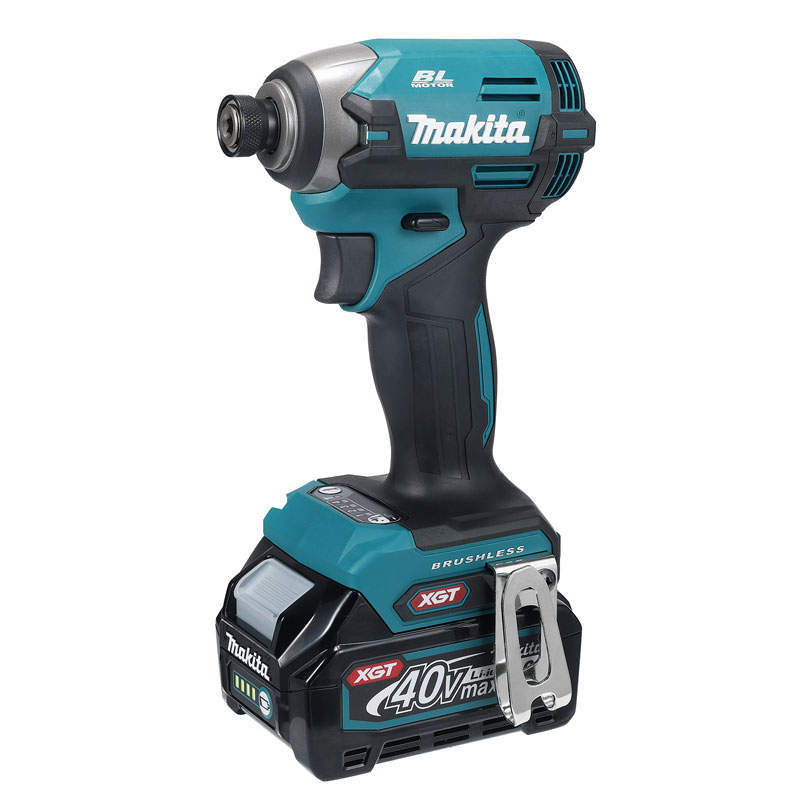

TD003G

Specifications

40Vmax XGT BL Cordless T-Mode 210 N·m (1,860 in.lbs.) Impact Driver
Combination of sufficient fastening performance and high cost-competitiveness achieved by carefully selecting the functions
Aluminum hammer case + Black bumper
Simple impact power selection:
∙ 4 modes (Max/ Hard/ Medium/ Soft for bolt)
∙ 1 T-mode (for thin metal only)
Max fastening torque: 210 N·m
• Despite increased cost-competitiveness, the max fastening torque is close to that of TD001G, the flagship model of our XGT Impact drivers
• Extended overall length ensures sufficient performance of hammer, enabling to outperform TD001G in heavy-duty operation
Light mode
• To turn on the light, set F/R change lever in the neutral position, then pull the switch trigger. To turn off the light, pull the switch trigger again
• The light turns off automatically one hour after turned on
Excellent performance in continuous heavy-duty operation
High power 40Vmax XGT Li-Ion battery reduces the current load on the controller, allowing for continuous heavy-duty operation
Constant speed control allows to operate the tool at the same speed as that at which you operate the tool on a full charged battery, even when the remaining battery capacity becomes low
One-touch bit installation
• Smoother installation of the bit has been achieved by reducing the resistance against insertion of the bit
• By increasing the load of sleeve holding spring, we have reduced the chance of unexpected falling off of the bit
Anti-bit wobbling structure
XPT (eXtreme Protection Technology)
BL motor
Soft grip
Belt clip
One LED job light each on both sides

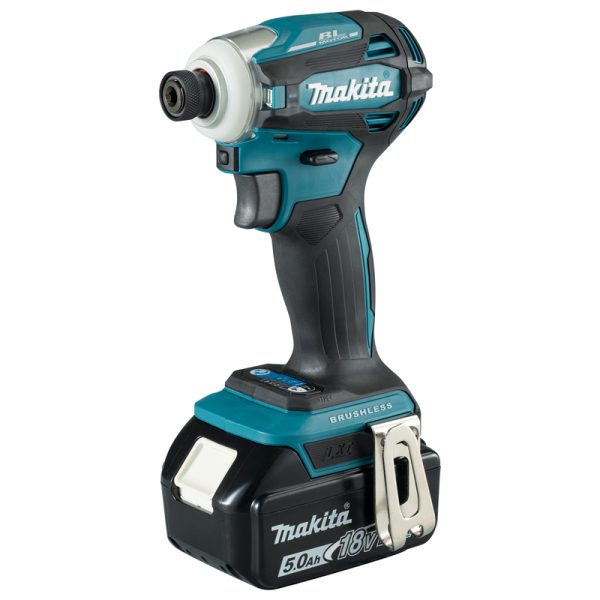

DTD172

Specifications

18V LXT BL Brushless Cordless Wood/Bolt/T-Mode 180 N·m Impact Driver

Tool head slimmer than DTD171 enables easy screwdriving in tight corners or confined spaces
Slimmer tool body due to smaller controller circuit
Light mode enables to use DTD172 as a handy light on dark job sites
Anti-bit wobbling structure; Two ball bearings are used to securely hold the anvil for reduced bit wobbling
One-touch bit installation; Reduced resistance allows for easier bit installation; Designed to hold the bit more securely
Twin LED lights on both sides illuminate the work area for increased visibility
Wood/Bolt/T-Mode (1, 2)/Max/Hard/Medium/Soft Mode for Multiple Applications
Redesigned mode selection switch for one-handed mode selection
Rigid anvil retention for reduced bit wobbling
Power selection switch provides the user with precise fastening control for a wide range of applications
BL motor delivers 3,600 max RPM and 180 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
Convenient one-touch 6.35 mm (1/4″) hex chuck for quick bit changes (for some countries only)
Soft grip provides increased comfort on the job

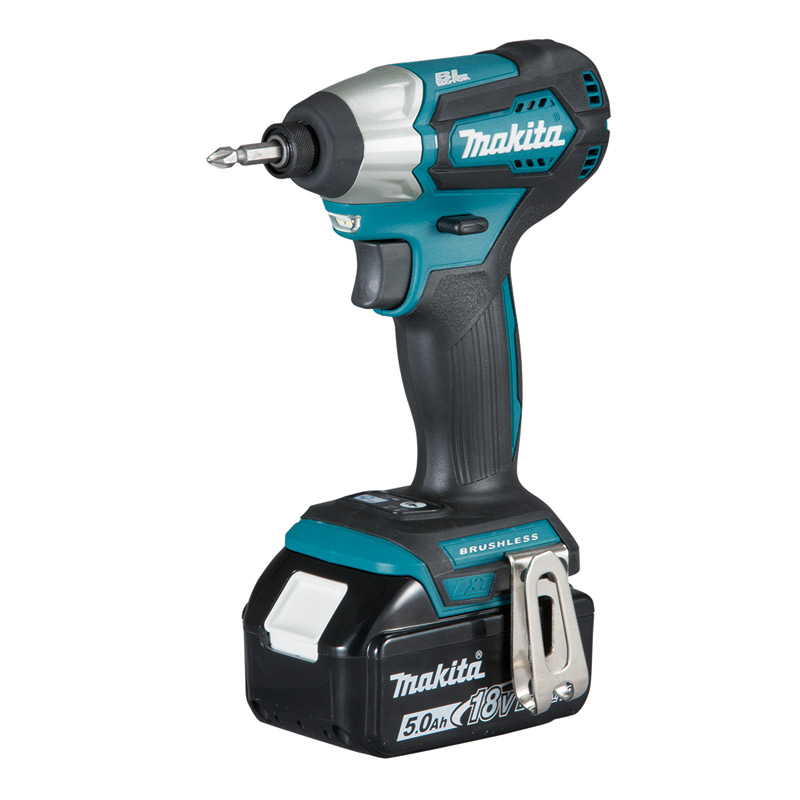

DTD155

Specifications

18V LXT BL Brushless Cordless A-Mode (Assist Mode) 140 N·m (1,240 in.lbs.) Impact Driver

3-Mode operation for A-mode / Hard mode / Soft mode for multiple applications
A-mode feature helps eliminate “screw cam-out” and “cross threading” by driving at low speed until tightening begins
Variable speed (0-1,300/0-3,000 RPM & 0-1,600/0-3,900 IPM) for a wide range of fastening applications
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Compact and lightweight for reduced operator fatigue
Ideal for working in tight spaces
Best possible ergonomic handle for screwdriving applications
Ergonomically designed handle with soft grip provides increased comfort
Built-in dual LED light with preglow and afterglow functions illuminates the work area
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 6.35 mm (1/4″) hex chuck for quick bit changes
Electric brake for maximum productivity and increased operator safety
Aluminum hammer case creates the impression of rigidity of the machine
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging

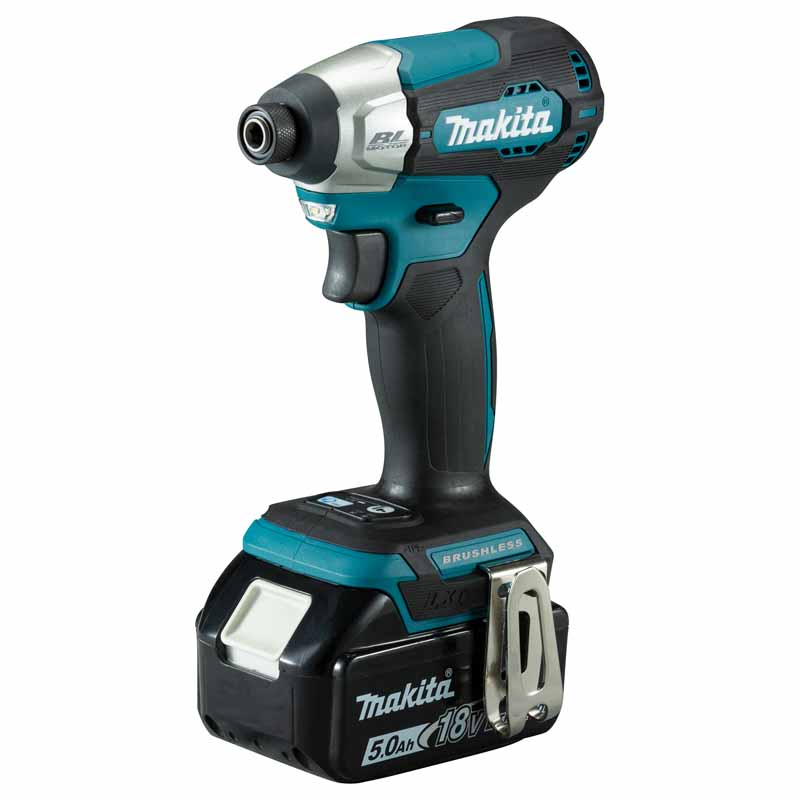

DTD157

Specifications

18V LXT BL Brushless Cordless A-Mode (Assist Mode) 140 N·m (1,240 in.lbs.)

18V LXT BL Brushless Cordless A-Mode (Assist Mode) 140 N·m (1,240 in.lbs.) Impact Driver
Anti-bit wobbling structure
Two ball bearings are used to securely hold the anvil for reduced bit wobbling
Despite the internal design change for the rigidity, redesigned gear section makes the overall length 2 mm shorter than DTD155
Compact body for easy screwdriving in narrow space
3-mode operation for A-mode / Hard mode / Soft mode for multiple applications
A-mode feature helps eliminate “screw cam-out” and “cross threading” by driving at low speed until tightening begins
Variable speed (0-1,300/0-3,000 RPM & 0-2,000/0-4,100 IPM) for a wide range of fastening applications
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Compact and lightweight for reduced operator fatigue
Ideal for working in tight spaces
Best possible ergonomic handle for screwdriving applications
Ergonomically designed handle with soft grip provides increased comfort
Built-in twin LED light with preglow and afterglow functions illuminates the work area
eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient 6.35 mm (1/4″) hex chuck for quick bit changes

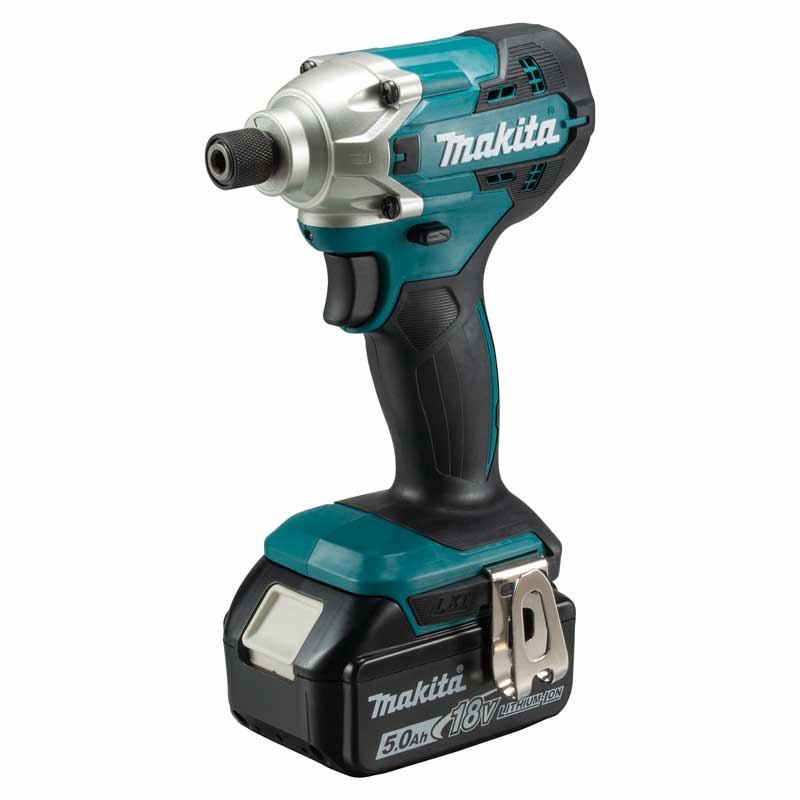

DTD156

Specifications

18V LXT Li-Ion Cordless 155 N·m (1,370 in.lbs.) Impact Driver

Aluminum hammer case for creating the impression of rigidity
Compact design with a short overall length of 143mm (5-5/8″)
Variable speed (0-2,500 RPM & 0-3,000 IPM) provides 155 N·m (1,370 in.lbs.) of Max Torque for a wide range of fastening applications
Compact, lightweight but powerful 4-pole motor
Rubberized soft grip provides increased comfort on the job
Lightweight for reduced operator fatigue
Built-in LED light with pre-glow and afterglow illuminates the work area
Reversing switch is conveniently located
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

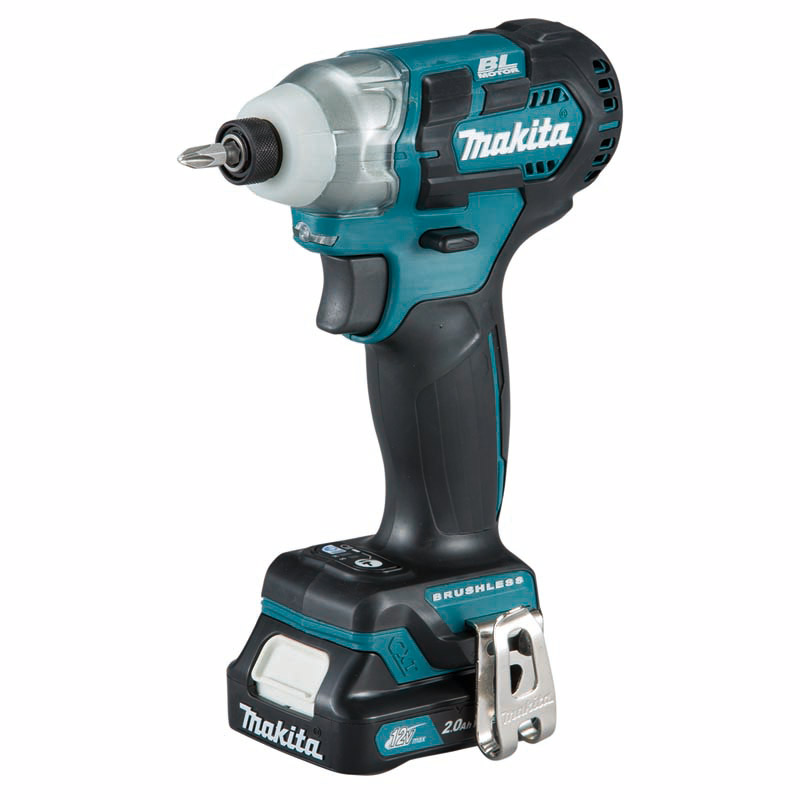

TD111D

Specifications

12V max CXT BL Brushless Cordless A-Mode (Assist Mode) 135 N·m (1,200 in.lbs.) Impact Driver

Ultra compact and slim design at only 135 mm (5-5/16″) long
Ultra lightweight for reduced operator fatigue
Power-increased motor delivers 135 N·m (1,200 in.lbs.) of Max Torque in an ultra compact size
3-Mode operation: A-mode / Hard mode / Soft mode for multiple applications
A-Mode feature helps eliminate “screw cam-out” and “cross threading” by driving at low speed until tightening begins
2-Speed power selection switch (0-3,000 / 1,300 RPM & 0-3,900 / 1,600 IPM) provides the user with precise fastening control for a wide range of applications
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Best possible ergonomic handle for screwdriving applications
Ergonomically designed handle with soft grip provides increased comfort
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Built-in LED light with preglow and afterglow functions illuminates the work area
Convenient 6.35 mm (1/4″) hex chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Slide style battery and improved ergonomic grip
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Reversing switch is conveniently located. Electric brake for maximum productivity and increased operator safety. Durable, reversible belt clip convenient for temporary tool hanging. Ideal for work in tight spaces. eXtreme Protection Technology (XPT) engineered to provide increased dust and water resistance in harsh job site conditions

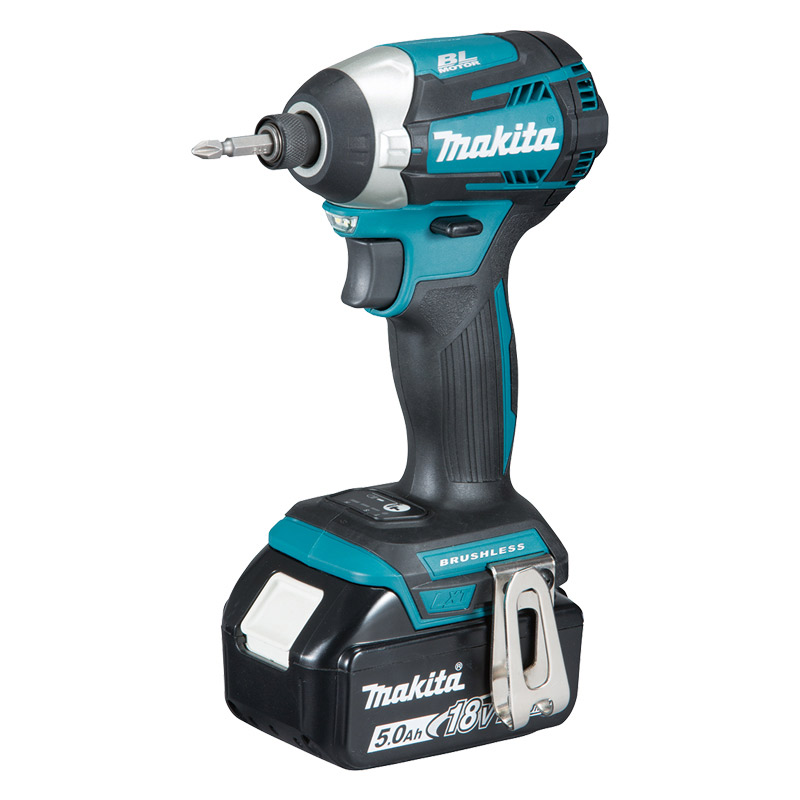

DTD154

Specifications

18V LXT BL Brushless Cordless T-Mode 3-Speed 175 N·m (1,550 in.lbs.) Impact Driver

ULTRA-COMPACT and ergonomic design at only 117 mm long
Aluminum hammer case creates the impression of rigidity of the machine
Dual LED lights with preglow and afterglow functions illuminate the work area more widely
T-mode has an automatic electronic controller that downshifts and reduces rotation and impact speed prior to driving screw into place, and is engineered to minimize screw thread stripping, screw breakage and damage to work
BL motor delivers 3,600 Max RPM and 175 N·m (1,550 in.lbs.) of Max Torque
3-Speed power selection switch (0-1,100 / 0-2,100 / 0-3,600 RPM & 0-1,100 / 0-2,600 / 0-3,800 IPM) provides the user with precise fastening control for a wide range of applications
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Lightweight for reduced operator fatigue
Convenient one-touch 6.35 mm (1/4″) hex chuck for quick bit changes (country-specific)
Soft grip provides increased comfort on the job
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Electric brake for maximum productivity and increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

DTD152

Specifications

18V LXT Li-Ion Cordless 165 N·m (1,460 in.lbs.) Impact Driver

Developed for main applications such as tightening of self-drilling screws or light duty machine screws
Delivers 2,900 max RPM and 165 N·m (1,460 in.lbs.) of max torque
Compact and lightweight design
Aluminum hammer case creates the impression of rigidity of the machine
Dual LED lights with preglow and afterglow functions illuminate the work area more widely
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Convenient one-touch 6.35 mm (1/4″) hex chuck for quick bit changes (country-specific)
Variable speed (0-2,900 RPM & 0-3,500 IPM) for a wide range of fastening applications
Soft grip provides increased comfort on the job
Battery protection circuit protects against overloading, over-discharging and over-heating
Reversing switch is conveniently located
Phosphorescent bumper glows in dark places
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging

TD110D

Specifications

12V max CXT Li-Ion Cordless 110 N·m (970 in.lbs.) Impact Driver

Slide style battery and improved ergonomic grip
Variable speed (0-2,600 RPM & 0-3,500 IPM) for a wide range of fastening applications
Power-increased motor delivers 110 N·m (970 in.lbs.) of Max Torque in an ultra compact size
Best possible ergonomic handle for screwdriving applications
Ergonomically designed handle with soft grip provides increased comfort
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Compact and ergonomic design at only 153 mm long
Lightweight for reduced operator fatigue
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Convenient 6.35 mm (1/4″) hex chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Reversing switch is conveniently located
Electric brake for maximum productivity and increased operator safety
Durable, reversible belt clip convenient for temporary tool hanging
Ideal for work in tight spaces

TD022D

Specifications

7.2V Li-Ion Cordless Two-Position 25 N·m (220 in.lbs.) Impact Driver

Delivers 25 N·m (220 in.lbs.) of Max Torque in a compact design
0-2,450 RPM and 0-3,000 IPM for reduced fastening time
40% more work amount and 10% higher work speed than TD021D
LED job light with pre-glow function brightly illuminates a spot and the periphery by enlarging the illuminated area than TD021D
Battery protection system automatically cuts off power to the motor when the remaining battery capacity gets too low to extend battery life
Compact and lightweight design with precision control and high fastening torque
Comfortable grip design operates in straight or pistol grip positions
Can be also used as a hand driver
Multi-function variable speed rotary switch allows operator to adjust driving speed and direction simultaneously for precise fastening applications
Switch position enables easy access for left or right handed users
Soft grip handle provides increased comfort on the job
Adjustable handle with enhanced hinge mechanism for operational versatility
Convenient 6.35 mm (1/4″) hex chuck for quick bit changes
Electric brake for maximum productivity and increased operator safety
Lock button prevents accidental startup

TL065D

Specifications

12V max CXT Li-Ion Cordless 60 N·m (530 in.lbs.) Angle Impact Wrench

Compact & lightweight right angle impact wrench for fastening and loosening in tight spaces
60 N·m (530 in.lbs.) of maximum torque and 0-3,000 IPM
Variable speed (0-2,000 RPM) for a range of applications from auto repair to product assembly
Large conveniently located paddle switch for comfortable operation
Over one foot of tool extension for extra reach into deep tight spaces
LED light with preglow and afterglow feature illuminates the work area
Soft grip handle provides increased comfort on the job
Compact angled head for easy access in confined spaces
Machined aluminum head for added durability
360 degrees rotatable head enables operation from optimum angle
Conveniently located forward/reverse switch
Phosphorescent bumper ring for locating tool in dark work areas
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating
Slide style battery and improved ergonomic grip
Multi-contact terminals ensure stable contact with battery
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Optional straight head and ratchet head are compatible with those for DTL060 / DTL061
Electric brake for maximum productivity

DA001G

Specifications

40Vmax XGT BL ADT Cordless 13 mm (1/2″) Angle Drill with Keyed Chuck

Lightweight for reduced operator fatigue
Fall-prevention holder also usable as skyhook
High power similar to AC tool
Powerful drilling even large diameter holes
Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
BL motor delivers 1,500 RPM
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 2-speed (0-400 & 0-1,500 RPM) for increased drilling versatility
Front handle can be installed in any position within 0° – 112.5°
Easy-to-grip, ergonomically designed handle with soft grip provides a sure and comfortable grip
Built-in clutch reduces gear damage by automatically disengaging gears if the bit binds (low speed only)
Protection for user’s hand and batteries protects user’s hand and batteries from hitting a material during operation
Twin LED light with preglow and afterglow feature illuminate the work area
Soft start for smooth start-ups
Auto power-off function
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Electric brake for increased productivity

DDA460

Specifications

18V LXT BL Cordless Angle Drill with Keyed Chuck
Compact and lightweight for increased maneuverability in various work postures and reduced user fatigue
Hook assembly (anti-drop attachment) also usable as skyhook; Anti-drop strap can be attached
Mechanical 2-speed transmission; Able to drill large diameter holes in low speed mode; Able to do drilling with 2-9/16″ self-feed bit
High-speed drilling beyond AC tool
Powerful drilling even large diameter holes
Exceptional high power and high speed
BL motor delivers 1,400 RPM
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 2-speed (0-450 & 0-1,400 RPM) for increased drilling versatility
Easy-to-grip, ergonomically designed handle with soft grip provides a sure and comfortable grip
Protection for user’s hand and batteries protects user’s hand and batteries from hitting a material during operation
Twin LED lights with preglow and afterglow feature illuminate the work area
Soft start for smooth start-ups
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Electric brake for increased productivity

DA333D

Specifications

12V max CXT Li-Ion Cordless 10 mm (3/8″) Angle Drill, Keyless Chuck

Compact Angle Head Height & Center Height for Use in Close Quarters
Up to 40% faster drilling and 380% longer runtime*¹
Slide style battery and improved ergonomic grip
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Battery protection circuit protects against overloading, over-discharging and over-heating
LED light with preglow and afterglow feature illuminates the work area
Variable speed (0-1,100 RPM) for a range of applications
Easy to operate large type switch trigger
Conveniently located forward/reverse switch
Single sleeve keyless chuck enables easy bit instlation/removal by one hand
Electric brake for increased productivity
Durable, reversible belt clip convenient for temporary tool hanging

TW007G

Specifications

40Vmax XGT BL Cordless 1/2″ (12.7 mm) 760 N·m (560 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode

Increased torque 760 N·m (560 ft.lbs.)
Increased nut busting torque 1,100 N·m (810 ft.lbs.)
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode allows for less hand and finger fatigue
Compact design with a short overall length of 170 mm (6-11/16″)
Socket can be fixed with C-ring (ring spring)
BL motor delivers 760 N·m (560 ft.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 4-speed provides fastening control for a wide range of applications
Twin LED lights with preglow and afterglow functions for better illumination
Convenient 1/2″ (12.7 mm) square drive for quick socket changes
Ergonomically designed handle with soft grip provides increased comfort on the job
eXtreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions
Electric brake for increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

DA332D

Specifications

12V max CXT Li-Ion Cordless 10 mm (3/8″) Angle Drill, Keyed Chuck

Compact Angle Head Height & Center Height for Use in Close Quarters
Up to 40% faster drilling and 380% longer runtime*¹
Slide style battery and improved ergonomic grip
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Battery protection circuit protects against overloading, over-discharging and over-heating
LED light with preglow and afterglow feature illuminates the work area
Variable speed (0-1,100 RPM) for a range of applications
Easy to operate large type switch trigger
Conveniently located forward/reverse switch
10 mm (3/8″) keyed metal chuck for improved bit gripping power
On-tool chuck key storage for fast and convenient bit changes
Chuck key holder can be attached and removed for added maneuverability
Electric brake for increased productivity
Durable, reversible belt clip convenient for temporary tool hanging

TW001G

Specifications

40Vmax XGT BL Cordless 3/4″ (19 mm) 1,800 N·m (1,330 ft.lbs.) Impact Wrench, Reverse Rotation Auto Stop Mode

Higher torque and more compact than DTW1001
High torque but compact overall length for easy handling and control
Electronic 4 stage impact power selection for added versatility
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode allows for less hand and finger fatigue
Style of socket retention: C ring
Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough
Twin LED job light ×2 with preglow and afterglow functions; Even when a large socket of M27 or larger is attached to the tool, another LED job light added above the battery provides bright illumination on the socket and workpiece
Powered by 40Vmax XGT Li-Ion battery
BL motor delivers 1,800 N·m (1,330 ft.lbs.) of max torque and 2,050 N∙m (1,510 ft.lbs.) of nut-busting torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Excellent performance in continuous heavy duty applications
Ergonomically designed handle with rubberized soft grip
XPT (eXtreme Protection Technology); For use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
Electric brake stops the rotation gently but fast, allowing user to quickly resume operation
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating

TW004G

Specifications

40Vmax XGT BL Cordless 1/2″ (12.7 mm) 350 N·m (260 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode

Increased motor speed under load delivers higher torque than DTW300 and DTW301
Electronic 4 stage impact power selection for added versatility
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode allows for less hand and finger fatigue
Compact design with a short overall length of 144 mm
Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity
Style of socket retention: C ring
Reverse Rotation Auto Stop Mode stops after the bolt/nut loosened enough
Twin LED lights with preglow and afterglow functions for better illumination
Powered by 40Vmax XGT Li-Ion battery
BL motor delivers 350 N·m (260 ft.lbs.) of max torque and 630 N∙m (465 ft.lbs.) of nut-busting torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
Excellent performance in continuous heavy duty applications
Ergonomically designed handle with rubberized soft grip
XPT (eXtreme Protection Technology); For use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
Electric brake stops the rotation gently but fast, allowing user to quickly resume operation
Reversing switch is conveniently located
Phosphorescent bumper glows blue in dark places. Durable, reversible belt clip convenient for temporary tool hanging. Battery protection circuit protects against overloading, over-discharging and over-heating

DTW1001

Specifications

18V LXT BL Brushless Cordless 3-Speed 3/4″ (19 mm) 1,050 N·m (780 ft.lbs.) Impact Wrench

Makita’s Most Powerful Impact Wrench
Compact and lightweight design thanks to BL motor
Extremely high power equivalent to AC model TW1000
Overall length is extremely shortened
Electronic 3 stage impact power selection reduces fault tightening
Hammer case securely fastened with four bolts
Dual LED job light with preglow and afterglow functions
Efficient impact system (Max 2,200 IPM) with less vibration
Easy-to-operate, push button type F/R change switch
Best possible ergonomic handle perfectly fits your hand
Electric brake stops the rotation gently but fast, allowing user to quickly resume operation
Variable speed control by trigger
Hook for operator convenience
BL BrushLess motor
– Maintenance-free due to no brush
– Energy production is more efficient than brushed motor because of no friction loss caused by brushes, enabling to lower amperage for reduced heat production and increased work amount on a single full battery charge

DTW700

Specifications

18V LXT BL Cordless 1/2″ (12.7 mm) 700 N·m (520 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode

Increased rotation speed delivers higher torque than DTW450
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode allows for less hand and finger fatigue
Compact design with a short overall length of 170 mm (6-11/16″)
Socket can be fixed with C-ring (ring spring)
BL motor delivers 700 N·m (520 ft.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 4-speed provides fastening control for a wide range of applications
Twin LED lights with preglow and afterglow functions for better illumination
Convenient 1/2″ (12.7 mm) square drive for quick socket changes
Ergonomically designed handle with soft grip provides increased comfort on the job
eXtreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions
Electric brake for increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating. Powered by Makita 18V LXT Li-Ion battery

DTW181

Specifications

18V LXT BL Brushless Cordless 1/2″ (12.7 mm) 210 N·m (155 ft.lbs.) Impact Wrench, Reverse Rotation Auto Stop Mode

Lightweight & Compact 55 mm Width of Motor Portion
Reverse Rotation Auto Stop Mode stops in 0.2 seconds after the bolt/nut loosened enough
BL motor delivers 210 N·m (155 ft.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Ideal for working in tight spaces and overhead applications
Aluminum hammer case creates the impression of rigidity of the machine
Variable 2-speed (0-1,300/0-2,400 RPM & 0-2,000/0-3,600 IPM) provides fastening control for a wide range of applications
Dual LED lights with preglow and afterglow functions illuminate the work area
Convenient 1/2″ (12.7 mm) square drive for quick socket changes
Ergonomically designed handle with soft grip provides increased comfort on the job
Extreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions
Electric brake for increased operator safety
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating
Powered by Makita 18V LXT Li-Ion battery

DTW285

Specifications

18V LXT BL Brushless Cordless 3-Speed 1/2″ (12.7 mm) 280 N·m (210 ft.lbs.) Impact Wrench, Reverse Rotation Auto Stop Mode

Reverse Rotation Auto Stop Mode Stops Rotation and Impact in 0.2 Seconds when Fastener is Loosened Adequately to Prevent Bolt/Nut Get Lost
BL motor delivers 280 N·m (210 ft.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
3-speed power selection switch (0-1,600 / 0-2,100 / 0-2,800 RPM & 0-1,800 / 0-2,600 / 0-3,500 IPM) for precise fastening control in a wide range of applications
Compact and ergonomic design at only 147 mm (5-3/4″) long
Lightweight for reduced operator fatigue
3-stage LED gauge indicates battery charge level
Extreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions
Electric brake for increased operator safety
Built-in LED light with an independent on/off switch & pre-glow/afterglow functions illuminates the work area
Phosphorescent bumper glows in dark places
Ergonomically designed handle with soft grip provides increased comfort on the job
Variable speed control by trigger for precise fastening in a wide variety of applications
Reversing switch is conveniently located
Hammer case cover securely fastened with four bolts
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating. Powered by Makita 18V LXT Li-Ion battery

DTW1002

Specifications

18V LXT BL Brushless Cordless 3-Speed 1/2″ (12.7 mm) 1,000 N·m (740 ft.lbs.) Impact Wrench

Makita’s Most POWERFUL 1,000 N·m (740 ft.lbs.) 1/2″ Impact Wrench / Compact and Lightweight design thanks to BL motor
Extremely high power equivalent to AC model TW1000
Overall length is extremely shortened
Electronic 3 stage impact power selection reduces fault tightening
Hammer case securely fastened with four bolts
Twin LED job light with preglow and afterglow functions
Efficient impact system (Max 2,200 IPM) with less vibration
Easy-to-operate, push button type F/R change switch
Best possible ergonomic handle perfectly fits your hand
Electric brake stops the rotation gently but fast, allowing user to quickly resume operation
Variable speed control by trigger
Hook for operator convenience
BL BrushLess motor
– Maintenance-free due to no brush
- – Energy production is more efficient than brushed motor because of no friction loss caused by brushes, enabling to lower amperage for reduced heat production and increased work amount on a single full battery charge

DTW300

Specifications

18V LXT BL Cordless 1/2″ (12.7 mm) 330 N·m (240 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
Increased rotation speed delivers higher torque than DTW285
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode allows for less hand and finger fatigue
Compact design with a short overall length of 144 mm (5-5/8″)
Socket can be fixed with C-ring (ring spring)
BL motor delivers 330 N·m (240 ft.lbs.) of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 4-speed provides fastening control for a wide range of applications
Twin LED lights with preglow and afterglow functions for better illumination
Convenient 1/2″ (12.7 mm) square drive for quick socket changes
Ergonomically designed handle with soft grip provides increased comfort on the job
Extreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions
Electric brake for increased operator safety
Reversing switch is conveniently located
Phosphorescent bumper glows blue in dark places
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating. Powered by Makita 18V LXT Li-Ion battery

DTW450

Specifications

18V LXT Li-Ion Cordless 1/2″ (12.7 mm) 440 N·m (325 ft.lbs.) Impact Wrench

Delivers 440 N·m (325 ft.lbs.) of torque for tough jobs
Top no load speed 1,600 RPM creates 2,200 IPM
Powerful DC motor with replaceable carbon brush for economic repair and maintenance
Compact ang lightweight design provides superior balance and control
Large rocker switch for more convenience and comfort
Single LED light with independent on/off switch conveniently illuminates the work area
Job site tested shock absorbent handle protects the battery housing for extra durability
Large bumper, protects workpiece from scratches, increasing manoeuvrability
Soft grip handle provides increased comfort on the job
Large removable tool hook for a range of trades
Unique rubber joint construction suppresses the transmission of vibration to battery terminals, minimizing battery failures such as terminal breakage or poor electrical contact
Externally accessible brushes for easy serviceability

DTW251

Specifications

18V LXT Li-Ion Cordless 1/2″ (12.7 mm) 230 N·m (170 ft.lbs.) Impact Wrench

High torque to weight ratio at 230 N·m (170 ft.lbs.)
Makita built 4-pole motor design with dual steel ball bearings provides maximum torque
Compact body provides more control and maneuverability
High power, compact and lightweight 4-pole motor
Electric brake for increased operator safety
LED job light with afterglow function for more illuminated accurate work
Phosphorescent bumper glows in dark places
Ergonomically designed handle with rubberized soft grip provides more control and comfort
Variable speed control by trigger for precise fastening in a wide variety of applications
Reversing switch is conveniently located
Hammer case cover protects work piece from scratches, increasing maneuverability
Durable, reversible belt clip convenient for temporary tool hanging
Battery protection circuit protects against overloading, over-discharging and over-heating
Powered by Makita 18V LXT Li-Ion battery

DTW190

Specifications

18V LXT Li-Ion Cordless 1/2″ (12.7 mm) 190 N·m (140 ft.lbs.) Impact Wrench

190 N·m (140 ft.lbs.) of Max torque optimal for scaffold bulding
Shoulder strap improves freedom of operator’s movement during work at height
0-2,300 RPM & 0-3,000 IPM for a wide range of fastening applications
Compact and ergonomic design at only 176 mm long
Lightweight for reduced operator fatigue
Built-in LED light with preglow illuminates the work area
Ergonomically designed handle with soft grip provides increased comfort on the job
Variable speed control by trigger for precise fastening in a wide variety of applications
Electric brake for increased operator safety
Reversing switch is conveniently located
Belt clip (optional accessory) can be attached for increased operator comfort
Powered by Makita 18V LXT Li-Ion battery
Equipped with Battery protection circuit to protect against overloading, over-discharging and over-heating

TW160D

Specifications

12Vmax CXT BL Brushless Cordless 3/8″ (9.5 mm) 160 N·m (120 ft.lbs.) Impact Wrench

Delivers 160 N·m (120 ft.lbs.) of Max Torque in an Ultra Compact Size
Reverse Rotation Auto-Stop Mode stops in 0.2 seconds after the bolt/nut loosened enough
BL motor delivers 2,400 max RPM, 3,600 max IPM and 160 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 2-speed (0-1,300/0-2,400 RPM & 0-2,000/0-3,600 IPM) provides fastening control for a wide range of applications
Ergonomic shape fits like a glove with even pressure and easy control
Soft grip handle provides increased comfort on the job
Ultra compact design at only 144 mm (5-5/8″) long and lightweight for reduced operator fatigue
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Aluminum hammer case creates the impression of rigidity of the machine
Convenient 3/8″ (9.5 mm) square drive for quick socket changes
3/8″ (9.5 mm) square drive fits most common automotive sockets
Electric brake for increased operator safety
Reversing switch is conveniently located
Slide style battery and improved ergonomic grip
Battery protection circuit protects against overloading, over-discharging and over-heating
Multi-contact terminals ensure stable contact with battery even under extreme vibration. Part of the expanding 12Vmax CXT series, combining performance with superior ergonomics in a compact size

TW100D

Specifications

10.8V (12V max) Li-Ion Cordless 3/8″ (9.5 mm) 110 N·m (1,000 in.lbs.) Impact Wrench

Makita-built motor delivers 110 N·m (1,000 in.lbs.) of Max Torque in an ultra compact size
Variable speed (0-2,300 RPM & 0-3,000 IPM) for a wide range of fastening applications
Ultra compact design at only 163 mm (6-3/8″) long and lightweight for reduced operator fatigue
Built-in LED light with pre-glow function illuminates the work area
Convenient 3/8″ (9.5 mm) square drive for quick socket changes
3/8″ (9.5 mm) square drive fits most common automotive sockets
Ergonomic shape fits like a glove with even pressure and easy control
Soft grip handle provides increased comfort on the job
Makita’s proprietary hammer and anvil are made using the highest quality steel and heat hardened to last longer
Electric brake for increased operator safety
Reversing switch is conveniently located
Phosphorescent bumper glows in dark places

TW161D

Specifications

12Vmax CXT BL Brushless Cordless 1/2″ (12.7 mm) 165 N·m (122 ft.lbs.) Impact Wrench

Delivers 165 N·m (122 ft.lbs.) of Max Torque in an Ultra Compact Size
Reverse Rotation Auto-Stop Mode stops in 0.2 seconds after the bolt/nut loosened enough
BL motor delivers 2,400 max RPM, 3,600 max IPM and 165 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable 2-speed (0-1,300/0-2,400 RPM & 0-2,000/0-3,600 IPM) provides fastening control for a wide range of applications
Ergonomic shape fits like a glove with even pressure and easy control
Soft grip handle provides increased comfort on the job
Ultra compact design at only 150 mm (5-7/8″) long and lightweight for reduced operator fatigue
Ideal for working in tight spaces and overhead applications
Built-in LED light with pre-glow and afterglow function illuminates the work area
Aluminum hammer case creates the impression of rigidity of the machine
Electric brake for increased operator safety
Reversing switch is conveniently located
Convenient 1/2″ (12.7 mm) square drive for quick socket changes
Slide style battery and improved ergonomic grip
Battery protection circuit protects against overloading, over-discharging and over-heating
Multi-contact terminals ensure stable contact with battery even under extreme vibration. Part of the expanding 12Vmax CXT series, combining performance with superior ergonomics in a compact size

TW140D

Specifications

12V max CXT Li-Ion Cordless 3/8″ (9.5 mm) 140 N·m (100 ft.lbs.) Impact Wrench

Delivers 140 N·m (100 ft.lbs.) of Max Torque in an Ultra Compact Size
Variable speed (0-2,600 RPM & 0-3,200 IPM) for a wide range of fastening applications
Ergonomic shape fits like a glove with even pressure and easy control
Soft grip handle provides increased comfort on the job
Ultra compact design at only 161 mm (6-3/8″) long and lightweight for reduced operator fatigue
Built-in LED light with pre-glow and afterglow function illuminates the work area
Convenient 3/8″ (9.5 mm) square drive for quick socket changes
3/8″ (9.5 mm) square drive fits most common automotive sockets
Electric brake for increased operator safety
Reversing switch is conveniently located
Slide style battery and improved ergonomic grip
Battery protection circuit protects against overloading, over-discharging and over-heating
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size

TW0350

Specifications

1/2″ (12.7 mm) 350 N·m (260 ft.lbs.) Impact Wrench

Huge 350 N·m (260 ft.lbs.) of power and lightweight
Large, efficient hammer creates more impacts for greater power
Externally accessible brushes for greater serviceability and ball bearings for longer tool life
Compact and lightweight design for use in tight spaces
Ideal for Framers, Anchor Setters, Deck Builders, Installers, Automotive Mechanics, Dismantlers, and Many Other Applications
Rocker type switch for one-handed forward or reverse operation
Efficient impact system with less vibration and longer tool life
Impact resistant aluminum gear case with rubber boot protects the all metal gears and offers increased durability
Ergonomically designed rubberized comfort grip for more comfort, control and reduced operator fatigue
Double insulated
