Drain Cleaning Machine
Drain Cleaning Butt Welding Machine Supplier
Reliable Drain Cleaning Butt Welding Machine Supplier – Yusufally And Sons
If you’re involved in sanitation, plumbing, or municipal drainage projects, having the right welding equipment is essential for long-lasting, leak-proof pipe joints. Yusufally And Sons, a renowned Drain Cleaning Butt Welding Machine Supplier, serves contractors and departments across Kolkata, West Bengal, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam with high-performance machines built for sewer and drain line installations.
Our drain pipe welding machines are designed to fuse thermoplastic pipes like HDPE and PP, commonly used in underground drainage systems. Built for rugged conditions, these machines ensure strong joints, minimal maintenance, and extended pipeline life—even in highly corrosive and debris-prone environments.
Why Drain Cleaning and Sewer Projects Need Butt Welding Machines
Drainage systems demand robust, corrosion-resistant, and leak-proof pipelines. Using butt welding ensures:
✅ No Joint Leaks
✅ Smooth Internal Pipe Surfaces (no flow restriction)
✅ High Chemical Resistance
✅ Long-Term Durability in Harsh Environments
By using Drain Cleaning Butt Welding Machines, contractors can weld HDPE and PP pipes used for waste water, storm water, and sewage—creating a seamless connection with excellent pressure resistance.
Why Choose Yusufally And Sons?
✔️ Proven Supplier Across Eastern India
✔️ Machines Available for 50mm to 630mm Pipes
✔️ Field-Tested for Sanitary & Drainage Applications
✔️ Durable, Heavy-Duty Frames & Heating Systems
✔️ Fast Delivery & Technical Support Available
✔️ Spare Parts & Accessories Always in Stock
From small residential drains to large-scale municipal waste management systems, Yusufally And Sons has the right equipment and support to keep your project on track.

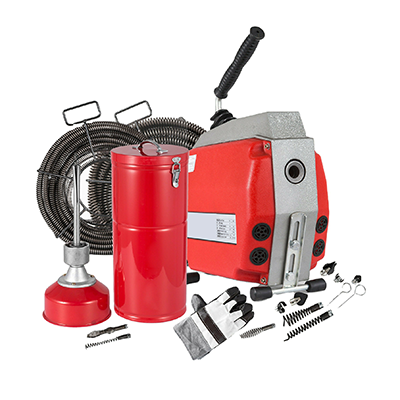

Our Variety of Drain Cleaning Machines
We provide a range of high-performance Drain Cleaning Machines, including:
Inspection Camera
- Allows precise detection of blockages inside pipes.
- High-definition visuals for effective troubleshooting.
- Compact design for easy handling and storage.
RX-160
- A powerful machine built for heavy-duty cleaning tasks.
- Suitable for medium to large pipelines.
- Delivers consistent performance in challenging conditions.
Drain Cleaning Machine Features You Won’t Find Anywhere Else
- High-Performance Motors: Ensures quick and effective cleaning.
- Advanced Technology: Equipped with tools like cameras for inspection.
- Durable Construction: Designed to withstand heavy industrial use.
- User-Friendly Operation: Simple controls for hassle-free use.
- Portable Design: Lightweight and easy to transport.

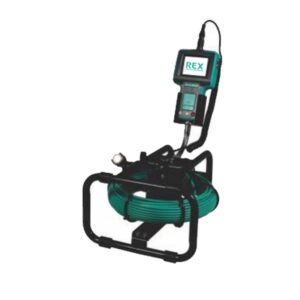

Inspection Camera
Specifications
SPECIFICATIONS | PIPE INSPECTION MACHINE |
Dimensions / Weight | Main Unit 118(W) X 207(L) X 37(H)/80 gms. Reel : 280(W) X 210(L) X 450(H) / 4.4 Kg |
Power Supply | Lithium-ion Polymer Battery AC 100V-240V – 50/60 Hz |
Size: Applicable pipe dia. | Φ28/ Φ30-Φ110 |
Camera Head- Flexibility | Capable of Passing through two 90 elbows (>Φ40mm) |
Waterproofing | Waterproof structure confirms to JIS-IP68 to 10m |
Camera Cable Dia./Length | Φ6.6 / 20m (Usable length 19m) |
Minimum Bend Radius | R100 (at normal temperatures) |
TV System | NTSC |
Imaging Device | 3,00,000 Pixels |
LCD Monitor | 3.5” TFT LCD Color Monitor |
Data Storage Format | Still picture format : JPEG VGA (640 X 480 pixels) Video : MPEG QVGA (320 X 240 pixels) |
Data Storage Medium | SD Card (4 GB included) |
Standard Accessories | Carrying Case, AC Adapter, USB Cable, AV Cable, SD Card (4 GB) |

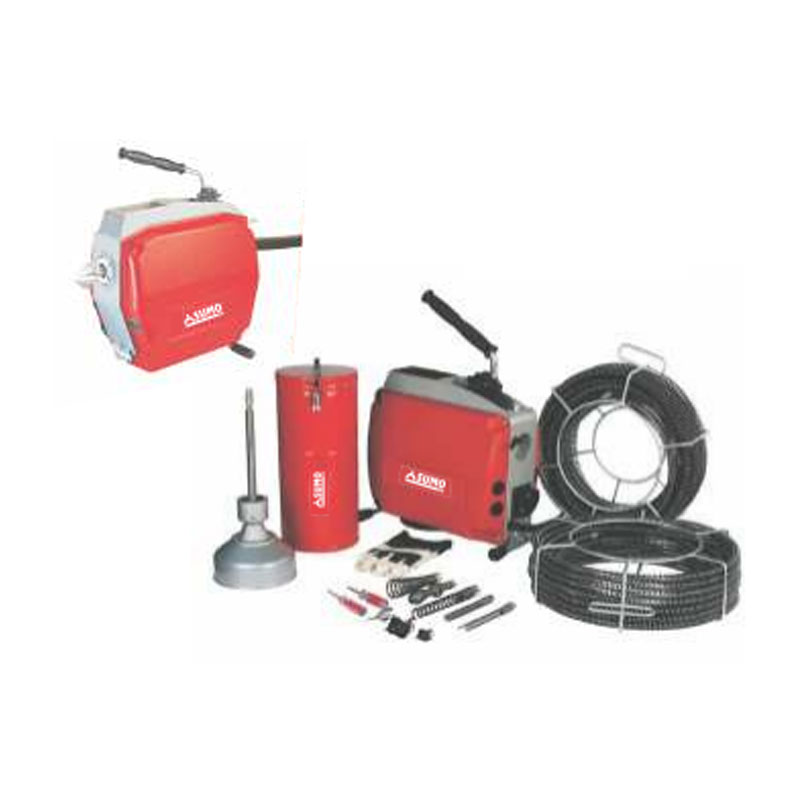

RX-160
Specifications
|
SPECIFICATIONS : RX – 160 |
|
|
Diameter of pipes |
Ø20mm-Ø150mm |
|
Max. working length |
30Mtrs. |
|
Soft Shaft Spec. |
Ø8mm, Ø15mm, Ø16mm, Ø22mm |
|
Input Power |
570 W |
|
Rated Voltage / Frequency |
220-240V / 50Hz |
|
Speed |
400RPM |
|
Protection Class |
IP 54 |
- Using soft shafts of Ø8mm, the cleaning diameter range is Ø20-75mm, cleaning length is 4.3 meters, especially suitable for small diameter pipes or complex pipes like traps.
- Using sectional helical flexible shafts of Ø16mm, pipes of Ø32-100mm in diameter can be cleaned, the soft shafts can be lengthened at will.
- Using sectional helical flexible shafts of Ø22mm, pipes of Ø50-150mm in diameter can be cleaned, the soft shafts can be lengthened at will.
|
Scope of Delhivery |
||||
|
NO:2.2113 RH1-3 2.0131 Ø16mm soft shaft |
2.0131 |
R-3-1 |
One piece Ø15mm x 2.3m flexible soft shafts |
|
|
2.0141 |
R-4-1 |
Five piece Ø16mm x 2.3m flexible soft shafts |
||
|
2.0316 |
F-1-f |
Ø430 soft shaft holder |
||
|
NO:2.2113 RH2-3 Ø430 soft shaft holder Ø22mm soft shafts |
2.0142 |
R-4-2 |
Three piece Ø22mm x 4.6m flexible soft shafts |
|
|
2.0316 |
R-1-f |
Ø430 soft shaft holder |
- Support is provided to adjust the height and angle of the machine, to accommodate different working environment.
- Press the clutch, the rotating speed is up to 400 rpm, and the soft shaft stops when the handle is released.
Where Our Machines Are Used
Our drain pipe welding machines are ideal for:
Urban Drainage Projects
Rural Sanitation Missions
Municipal Sewer Construction
Plumbing and Septic Tank Installations
Industrial Wastewater Management
From laying down underground sewage systems in Patna to municipal stormwater systems in Bhubaneswar, our machines deliver quality and consistency.
Service Locations Across Eastern India
We proudly supply and support customers in:
Kolkata, Howrah, Siliguri (West Bengal)
Patna, Muzaffarpur, Gaya (Bihar)
Bhubaneswar, Cuttack, Sambalpur (Odisha)
Ranchi, Jamshedpur, Dhanbad (Jharkhand)
Raipur, Bilaspur, Bhilai (Chhattisgarh)
Guwahati, Silchar, Dibrugarh (Assam)
With prompt delivery and hands-on support, Yusufally And Sons is known for fast service—even to remote locations.
Why Industry Experts Prefer Yusufally And Sons
✅ Experienced Team with Technical Know-How
✅ Machines for Both Government and Private Projects
✅ 100% Genuine Equipment with Warranty
✅ Excellent After-Sales Service
✅ Custom Solutions Available on Request
We’ve supplied machines for government sanitation tenders, private plumbing contractors, and infrastructure firms throughout Eastern India.
Accessories and Spare Parts Available
Heating Elements
Trimming Tools / Facers
Pipe Clamps
Temperature Controllers
Hydraulic Control Units
Carrying Frames & Toolkits
We keep your welding system running without delays.
Get in Touch with Yusufally And Sons Today
Looking for a dependable Drain Cleaning Butt Welding Machine Supplier in Eastern India? Partner with Yusufally And Sons – the name trusted by professionals for quality, service, and reliability.
📞 Call : +91 9007306745
✉️ Email : info@yusufallysons.com
