Hammer Drilling & Chiselling
Hammer Drilling & Chiselling
HR2020
Specifications
- 20 mm (3/4″) Adapted for SDS-PLUS bits
- 2 operation modes -hammering with rotation and rotation only
- Variable speed + reversible rotation

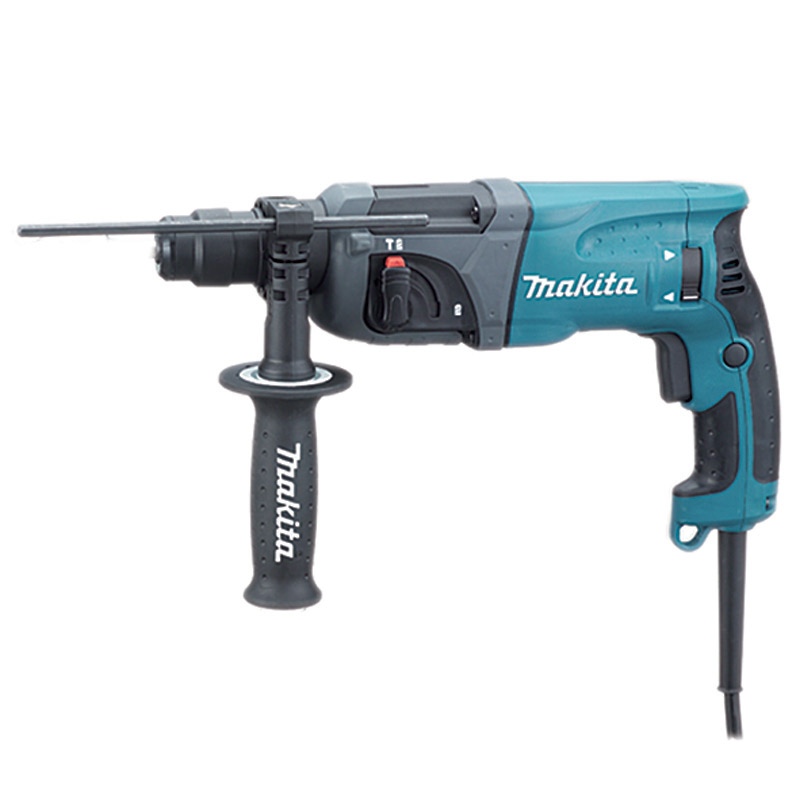

HR2230
Specifications
- 22 mm (7/8″) 2.2 J Rotary Hammer, SDS-PLUS Bits
- High durability in mechanical parts, motor and carbon brush
- 2.2 Joules (EPTA) impact energy delivers high performance
- 2 operation modes – hammering with rotation and rotation only
- Speed and torque in reverse are the same as forward rotation by using brush holder unit
- One-touch sliding chuck enables easy bit change
- Variable speed trigger allows operator to adjust speed based on materials or application
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Ergonomically designed rubberized grip provides more control and comfort
- Side grip with elastomer soft grip
- Easy-to-operate large trigger switch and lock-on button
- Depth gauge for increased drilling consistency
- Double insulated

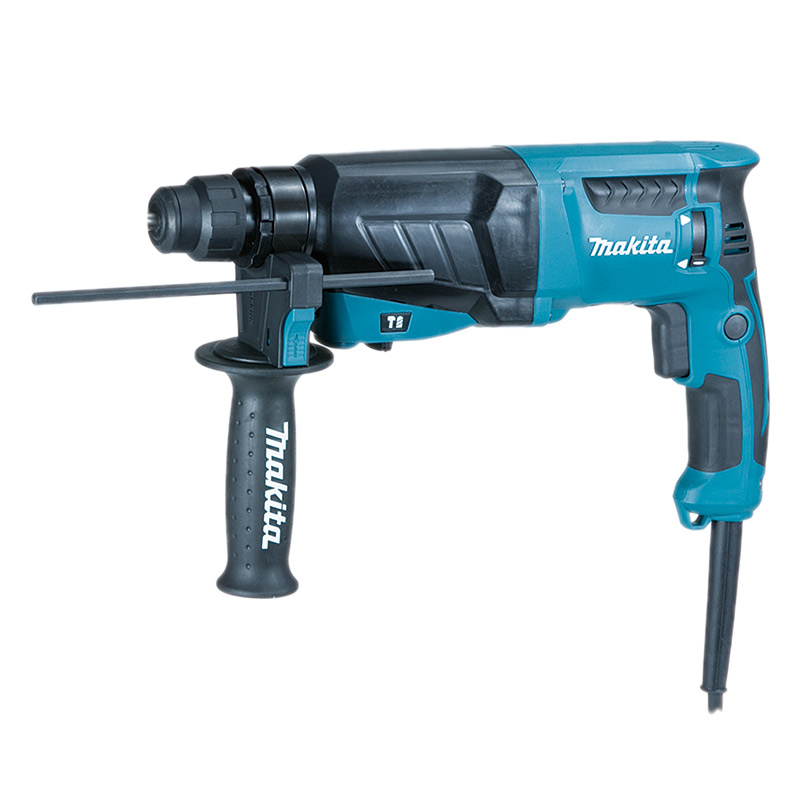

HR2630
Specifications
- 26 mm (1″) 2.4 J Combination Hammer, SDS-PLUS Bits
- Re-located operating mode lever for increased protection and durability; enables switch to rotate both left and right
- Improved bit guide for increased bit stability during drilling applications
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
- Soft grip provides more comfort and control
- High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
- Compact & Lightweight design obtained by minimizing motor weight, with a newly designed tool-structure
- Powerful 800 W motor delivers 2.4 J of impact energy to handle the most demanding applications
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
- 3-Mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- Variable speed trigger allows operator to adjust speed based on materials or application
- 40 Bit angle settings allow the bit to be set at optimum positions
- One-touch sliding chuck for easy bit installation and removal
- Depth gauge for increased drilling consistency
- Recessed lock-on button for continuous use
- Optional dust cup connectable to Makita vacuum cleanesr without joint parts
- Double insulated
HR2653
Specifications
- 26 mm (1″), Adapted for SDS-PLUS bits
- 26 mm (1″) 2.2 J AVT Combination Hammer with HEPA Self Dust Collection, SDS-PLUS Bits
- 26 mm (1″) 2.2 J AVT Combination Hammer with HEPA Self Dust Collection, SDS-PLUS Bits
- Filter Cleaning Mechanism for More Efficient Drilling
- HEPA filter removes particles with an efficiency rating of 99.75%
- Dust collecting port on telescopic guide with a sliding range of 190 mm enables to accept longer drill bits
- Secure connection between dust case and dust collecting section for less dust leakage
- See-through dust case for easy checking of collected dust amount
- Easy dust case removal for convenient dust disposal and cleaning
- Easy to adjust position of dust collecting port
- A desired drilling depth can be obtained simply by sliding a push button on telescopic guide
- AVT (Anti-Vibration Technology) – extremely low vibration achieved by a counterweight mechanism and damper spring
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
- Soft grip provides more comfort and control
- Powerful 800 W motor delivers 2.2 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
- Variable speed trigger allows operator to adjust speed based on materials or application
- Depth gauge for increased drilling consistency

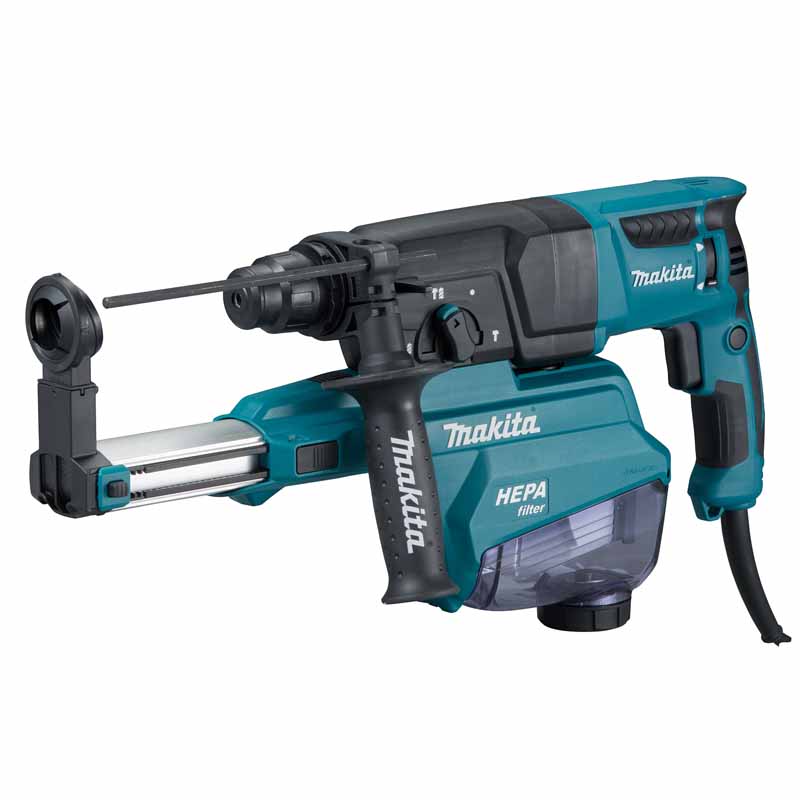

HR2652
Specifications
- 26 mm (1″) 2.2 J Combination Hammer with HEPA Self Dust Collection, SDS-PLUS Bits
- 6 mm (1″) 2.2 J Combination Hammer with HEPA Self Dust Collection, SDS-PLUS Bits
- Filter Cleaning Mechanism for More Efficient Drilling
- HEPA filter removes particles with an efficiency rating of 99.75%
- Dust collecting port on telescopic guide with a sliding range of 190 mm enables to accept longer drill bits
- Secure connection between dust case and dust collecting section for less dust leakage
- See-through dust case for easy checking of collected dust amount
- Easy dust case removal for convenient dust disposal and cleaning
- Easy to adjust position of dust collecting port
- A desired drilling depth can be obtained simply by sliding a push button on telescopic guide
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
- Soft grip provides more comfort and control
- Powerful 800 W motor delivers 2.2 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
- Variable speed trigger allows operator to adjust speed based on materials or application
- Depth gauge for increased drilling consistency

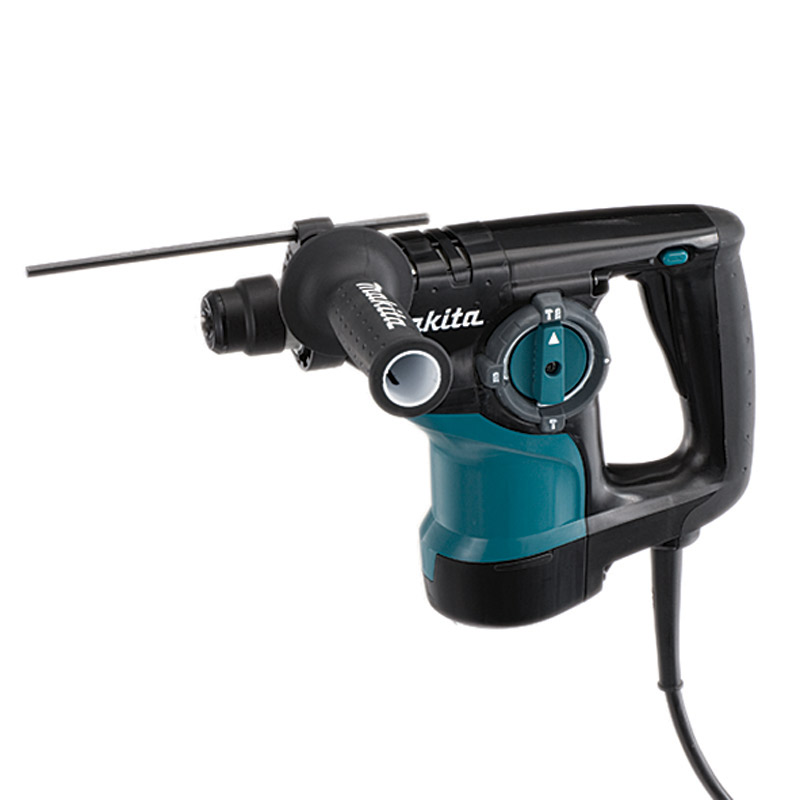

HR2810
Specifications
- 28 mm (1-1/8″) 2.8 J Combination Hammer, SDS-PLUS Bits
- Torque Limiting Clutch Engineered to Prevent Gear Damage
- Powerful 800 W motor delivers 2.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- 3 operation modes – hammering, hammering with rotation, rotation
- “No hammering when idling” function helps increase tool life
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Ergonomic “D-shaped” handle with rubberized soft grip for increased comfort
- Recessed lock-on button for continuous operation
- Extended life brushes for more work between service intervals and less downtime
- Makita Motor Advantage engineered with field core interlocking steel laminations, dual ball bearing armature and more copper commutator bars, increasing energy transfer efficiency for more power and longer tool life
- Depth gauge for increased drilling consistency
- Double insulated

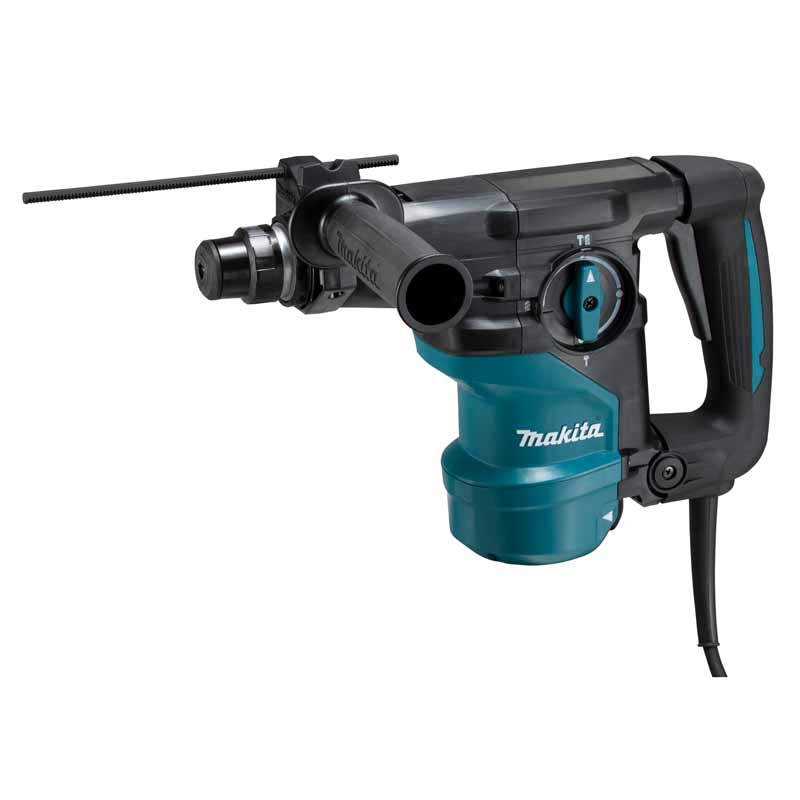

HR3001C
Specifications
- 30 mm (1-3/16″) 3.9 J Combination Hammer, SDS-PLUS Bits
- Drilling efficiency drastically increased by redesigned hammering mechanism
- Anti-vibration side grip absorbs excess vibration beyond the canceling capacity of the two counterweights
- Anti-vibration rear handle; Vibration absorbing performance is increased by two cushion rings added to connecting parts
- Less bit wobbling achieved by making bit guide portion 8 mm longer than that of HR2811F series
- Powerful 1,050 W motor delivers 3.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- “No hammering when idling” function helps increase tool life
- Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds
- Ergonomic “D-shaped” handle with rubberized soft grip for increased comfort
- Variable speed control dial allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Recessed lock-on button for continuous operation
- Depth gauge for increased drilling consistency
- Double insulated
HR3011FC
Specifications
- 30 mm (1-3/16″) 3.9 J AVT Combination Hammer, SDS-PLUS Bits, LED Light
- Drilling efficiency drastically increased by redesigned hammering mechanism
- Anti-Vibration Technology (AVT) for low vibration
- Powerful yet with low vibration due to 2 Counterweights, Anti-vibration rear handle and Anti-vibration side grip yet maintaining high power
- Anti-vibration side grip absorbs excess vibration beyond the canceling capacity of the two counterweights
- Anti-vibration rear handle; Vibration absorbing performance is increased by two cushion rings added to connecting parts
- Less bit wobbling achieved by making bit guide portion 8 mm longer than that of HR2811F series
- Powerful 1,050 W motor delivers 3.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- LED light illuminates drilling surface for more productivity in low light applications
- 3-mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only”
- “No hammering when idling” function helps increase tool life
- Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds
- Ergonomic “D-shaped” handle with rubberized soft grip for increased comfort
- Variable speed control dial allows operator to adjust speed based on materials or application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Recessed lock-on button for continuous operation
- Depth gauge for increased drilling consistency
- Double insulated

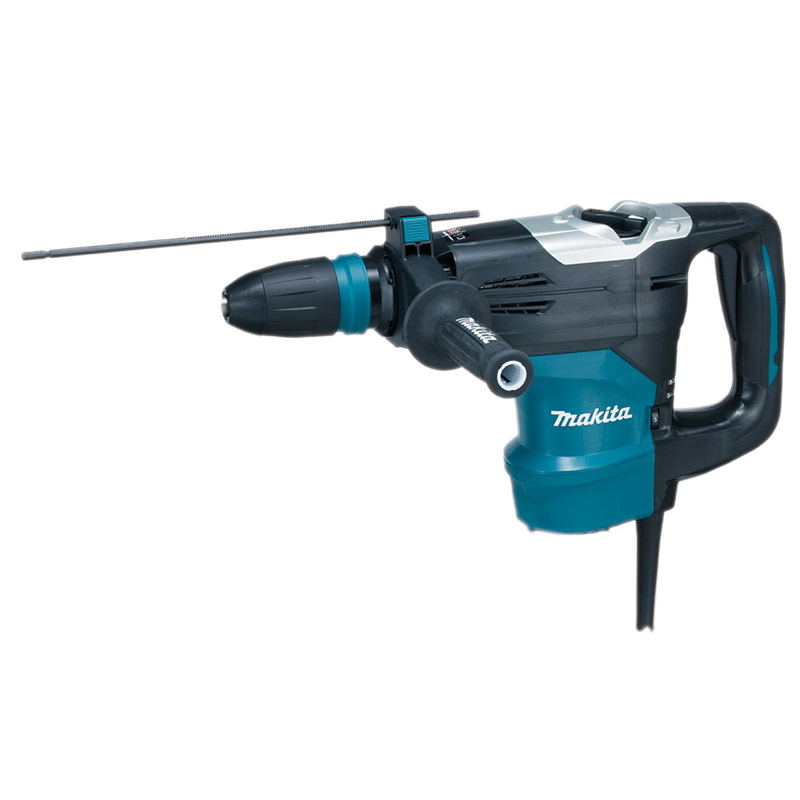

HR4003C
Specifications
- 40 mm (1-9/16″) 8.3 J Rotary Hammer, SDS-MAX Bits
- Powerful 1,100 W motor delivers 8.3 J of impact energy to handle the most demanding applications
- Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- LED service light notifies the user approximately 8 hours before the brushes need to be replaced
- LED power light indicates switch failure or cord damage
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Depth gauge for increased drilling consistency
- Double insulated

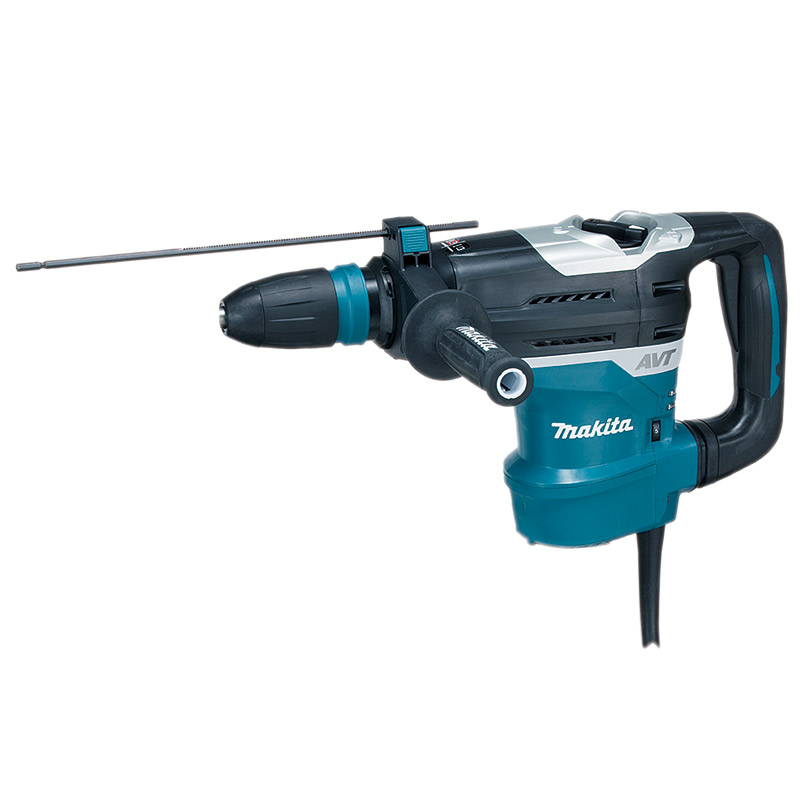

HR4013C
Specifications
- 40 mm (1-9/16″) 8.0 J AVT SOFT NO LOAD Rotary Hammer, SDS-MAX Bits
- Powerful 1,100 W motor delivers 8.0 J of impact energy to handle the most demanding applications
- Anti-Vibration Technology (AVT) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5 m/s²
- Air actuated counterbalance directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the drive piston actively reducing vibration
- Vibration absorbing housing features a spring loaded main handle and upper housing that move independently of the motor and drive mechanism efffectively isolating most of the vibration away from the user
- Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
- Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- LED service light notifies the user approximately 8 hours before the brushes need to be replaced
- LED power light indicates switch failure or cord damage
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Depth gauge for increased drilling consistency
- Double insulated

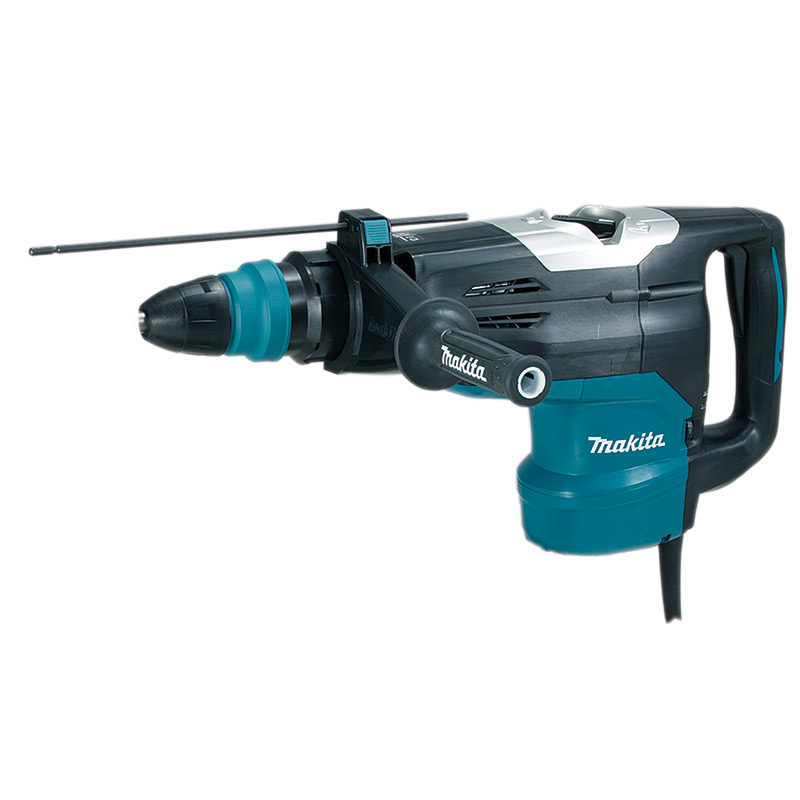

HR5202C
Specifications
- 52 mm (2-1/16″) 19.1 J Rotary Hammer, SDS-MAX Bits
- Powerful 1,510 W motor delivers 19.1 J of impact energy to handle the most demanding applications
- Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Soft start suppresses start-up reaction for more control and better accuracy
- LED service light notifies the user approximately 8 hours before the brushes need to be replaced
- LED power light indicates switch failure or cord damage
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
- Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
- Depth gauge for increased drilling consistency
- Double insulated

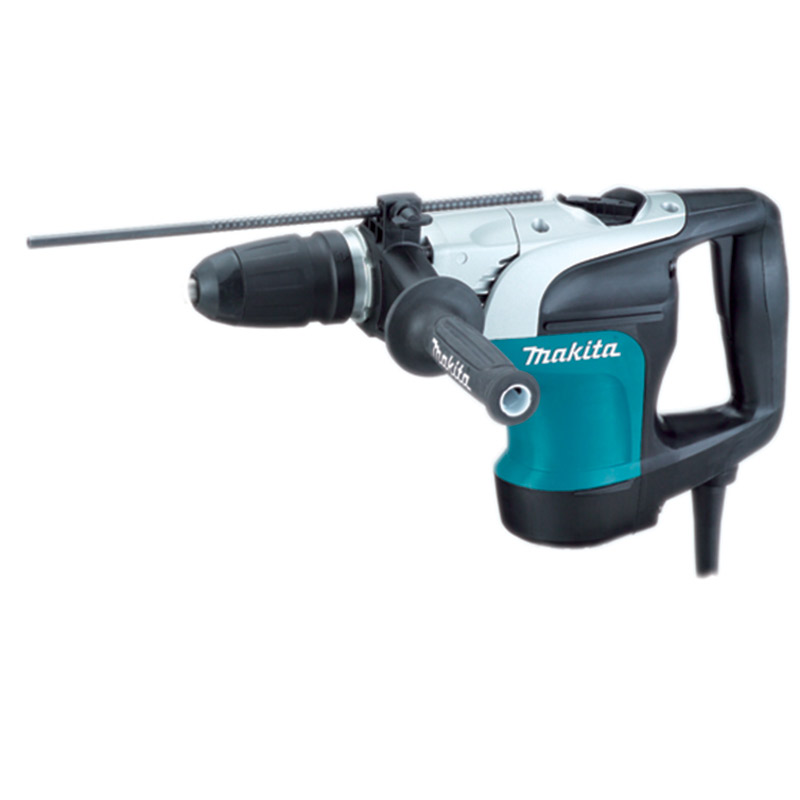

HR4002
Specifications
- 40 mm (1-9/16″) 6.1 J Rotary Hammer, SDS-MAX Bits
- Built-in torque limiting clutch disengages if bit jams
- Powerful 1,050 W motor delivers for the most demanding applications
- One-touch sliding chuck for quick & easy bit changes
- Dual mode operation rotation with hammering and hammering only
- Soft grip helps reduce vibration felt by the end-user
- No hammering when idling increases the tool life and performance
- Chisel lock allows the end-user to set their chisel in one of 12 positions
- Built-in torque limiter ensures stable torque control
- Soft grip helps reduce vibration felt by the end-user
- Recessed operation mode switch helps prevent it from being damaged
- Depth gauge for increased drilling consistency
- Double insulated

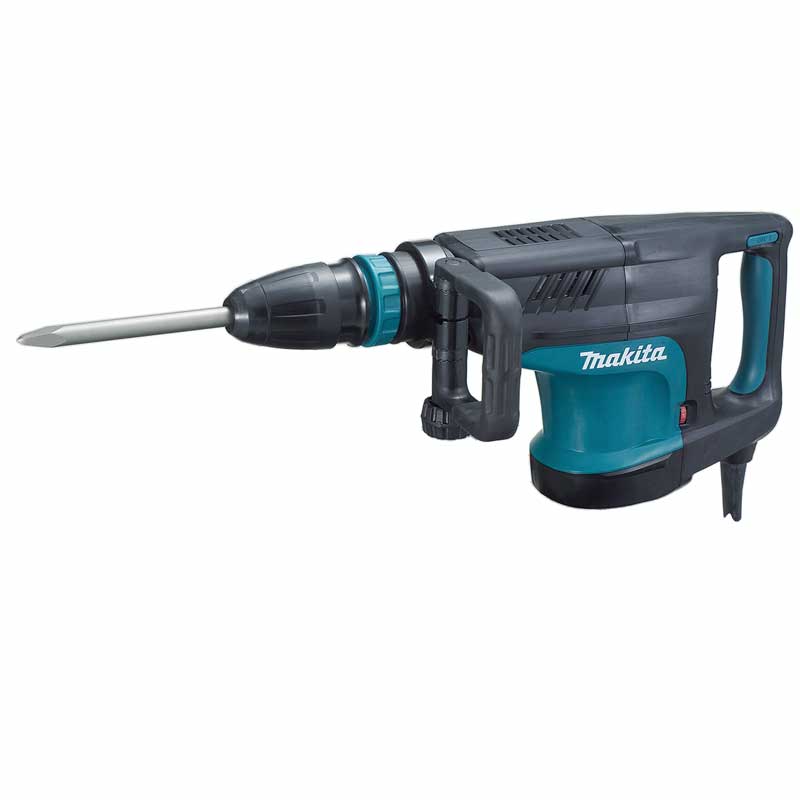

HM1205C
Specifications
19.1 J Demolition Hammer, SDS-MAX Bits
- Enhanced chipping sensation to soft materials
- Powerful 1,510 W motor delivers 19.1 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- One touch sliding chuck for easy bit installation and removal
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- Bit can be set at 12 positions for convenience
- LED lamp indicates when to replace carbon brush
- LED power light that indicates trouble with the electric circuit
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Soft grip provides more comfort and control
- Soft start suppresses start-up reaction for more control and better accuracy
- Extended life brushes are longer for more work between service intervals and less downtime
- 12 Bit angle settings allow the bit to be set at different positions for operating convenience
- Rubberized ergonomic soft grip provides more comfort
- Double insulated

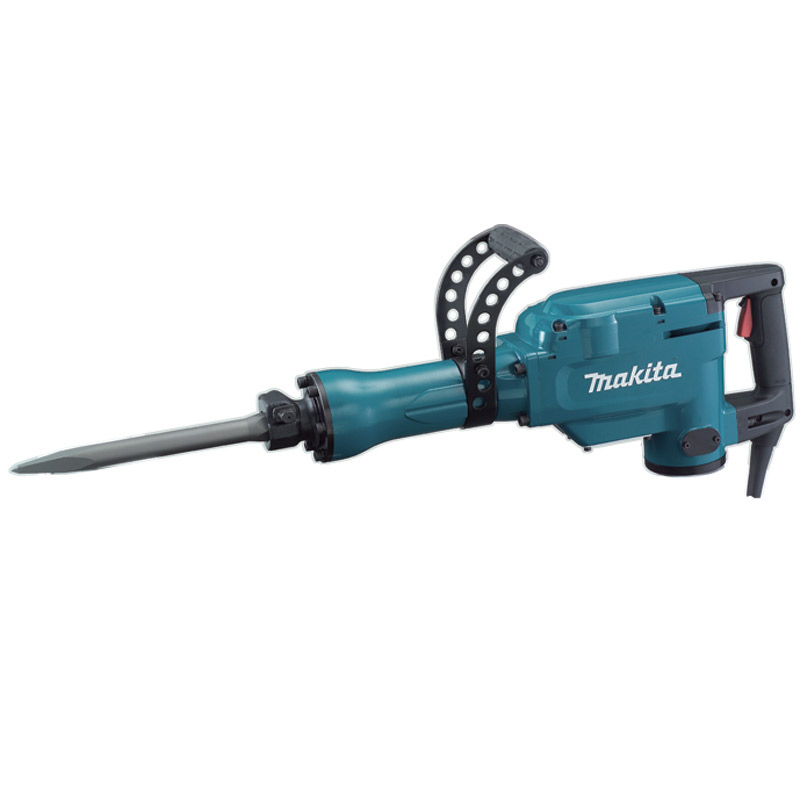

HM1306
Specifications
- 21.7 J Demolition Hammer, 30 mm Hex Shank
- Chipping performance ensures minimum power loss even when bull point is kept pushed against concrete in chipping operation
- High durability
- Powerful 1,510 W motor to handle the most demanding applications; 1,450 BPM to tackle demanding jobs
- Rubberized soft grip provides more control and less hand fatigue
- Adjustable large side handle improves operator comfort and control
- Lock-on button: easy to operate for both right and left handed users
- Aluminum housing of Makita-blue
- Auto lubrication
- Accepts 30 mm Hex shank

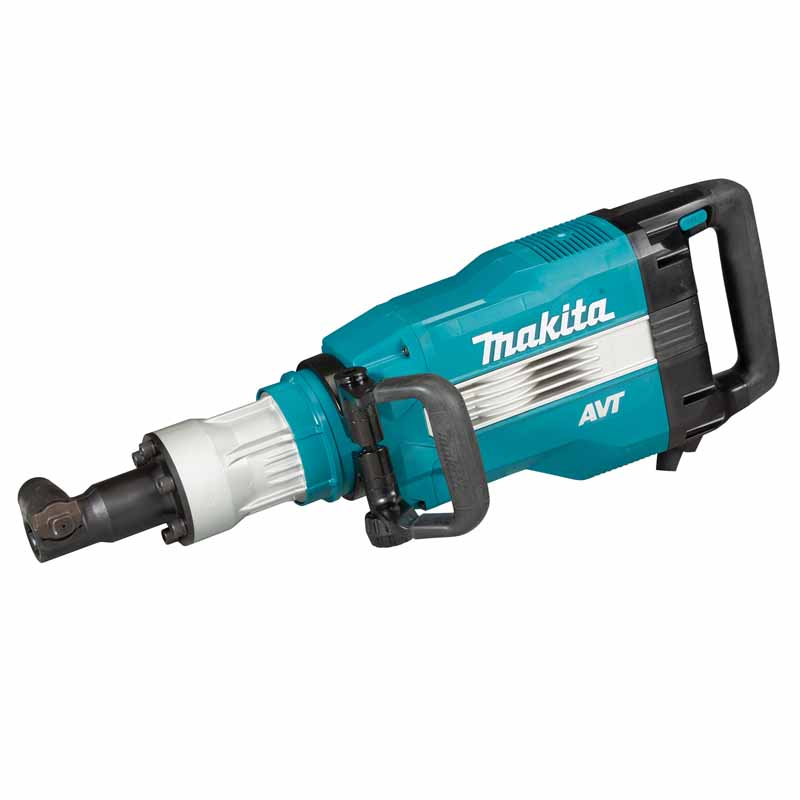

HM1511
Specifications
- 1-3/16″: 30 mm Hex Shank
- 48.9 J AVT SOFT NO LOAD Electric Breaker, 30 mm Hex Shank
- Both drastically increased power and low vibration are achieved with minimum increase in tool size and weight
- Powerful 1,850 W motor delivers 48.9 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Thanks to completely redesigned hammering mechanism and increased motor power as compared with HM1317C series, higher power is achieved with minimum increase in tool size and weight
- Despite the drastically increased power; Anti-vibration housing, Active dynamic vibration absorber and Soft no-load keep the vibration lower than that of HM1317C series, allowing for efficient chipping for a long period
- L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
- Variable speed control dial enables user to match the speed to the application for greater versatility
- L.E.D. power light indicates switch failure or cord damage
- Rubberized ergonomic soft grip provides more comfort
- Soft start suppresses start-up reaction for more precision and better accuracy
- Extended life brushes are longer for more work between service intervals and less downtime
- Automatic brush cut-off protects commutator from damage for longer tool life
- Easy-to-operate slide switch increases productivity and allows for continuous use
- Side handle swivels 360° for greater control
- Double insulated

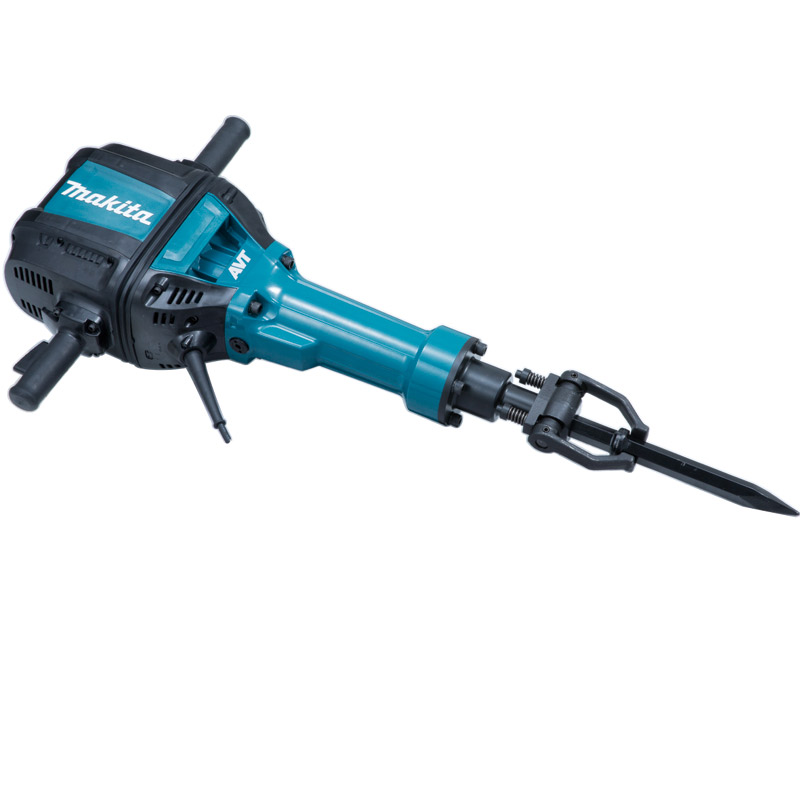

HM1812
Specifications
- 72.8 J AVT SOFT NO LOAD Electric Breaker, 28.6 mm Hex Shank
- Hits like air without the vibration
- Efficient 2,000 W motor with improved hammer mechanism delivers 72.8 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
- Advanced AVT is a synchronized, three-component system that more effectively reduces vibration in varying conditions resulting in a low 6.5m/s²
- Advanced AVT is a mechanical counterbalance system which greatly reduces vibration and directs more impact energy to the work surface for increased user comfort and greater productivity
- Advanced AVT provides vibration absorbing housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
- LED service & power light indicates switch failure or cord damage
- Fixed movement handles engineered for more control and greater accuracy
- LED service light notifies the user approximately 8 hours before brushes need to be replaced
- Soft start suppresses start-up reaction for more control and better accuracy
- Recessed lifting handles provide more convenience
- Automatic brush cut-off protects commutator from damage for longer tool life
- “No hammering when idling” function helps increase tool life
- Includes 5.0 m (16.4 ft.) power cord and integrated cord guide which positions the power cord away from working area
- Double insulated

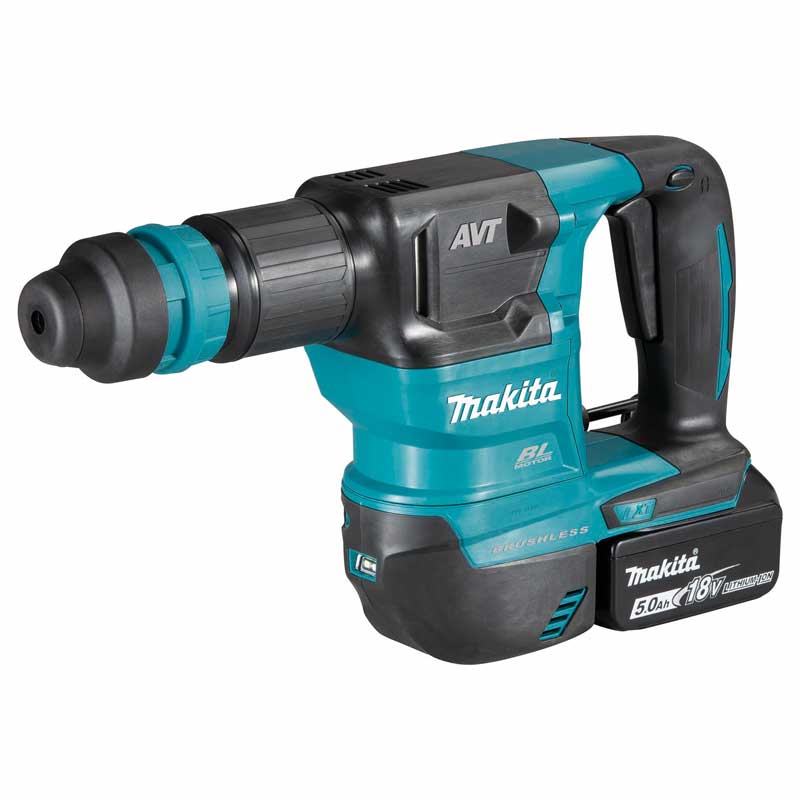

DHK180
Specifications
- 18V LXT BL AVT Cordless Power Scraper, SDS-PLUS Bits
- High power & low vibration
- A cordless solution for corded power demands
- Provides high power and compact and lightweight design similar to the AC model HK1820
- Anti-vibration housing and AVT for reduced operator fatigue
- Powerful BL motor delivers 0-3,200 BPM and 3.1 J of impact energy to handle the most demanding applications
- More controlled, easier scraping achieved by moderating the increase in impact power during rise time
- Twin LED job light with preglow and afterglow functions illuminates the work area
- Trigger lock-on/lock-off can be set simply by pushing the slide lever
- Adapted for SDS-plus shank
- 12 bit angle settings enable chisels to be positioned at optimum angle of operation
- One-touch sliding chuck for easy bit installation and removal
- Variable speed control by trigger and dial enables to adjust scraping power to the material of subfloor/subwall
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- XPT (eXtreme Protection Technology); For use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
- Battery protection circuit protects against overloading, over-discharging and over-heating

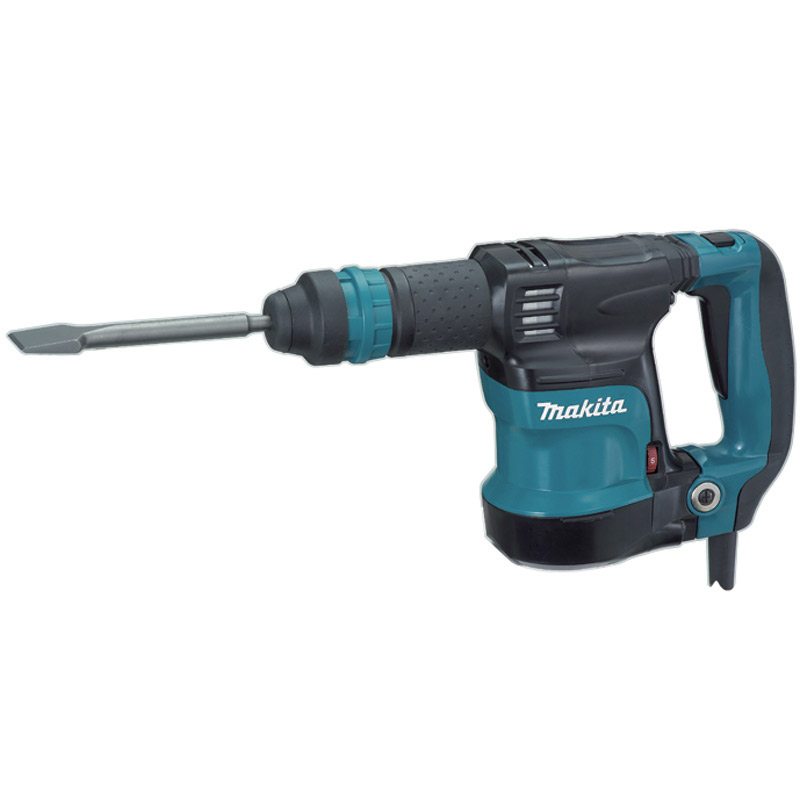

HK1820
Specifications
- 3.1 J Power Scraper, SDS-PLUS Bits
- Compact and lightweight
- One-touch sliding chuck for easy bit installation and removal
- Vibration absorbing handle with ergonomic soft rubber grip for vibration absorption and comfortable operation
- Increased repairability of electrical parts; Simplified wiring and casing structure enable to replace: Power supply cord and Trigger switch by removing only one screw: Carbon brush merely by removing Rear cover
- Barrel cover allows for comfortable barrel gripping
- Large trigger switch with variable speed control function
- Variable speed control by trigger and dial enables to adjust scraping power to the material of subfloor/subwall
- 12 angle bit positions enable chisels to be positioned at optimum angle of operation
- Adapted for SDS-plus shank
- Auto-shut off carbon brushes shut off motor when carbon brushes require replacement
- Factory grease packed for approximately 200 hours of maintenance free operation
- Double insulated

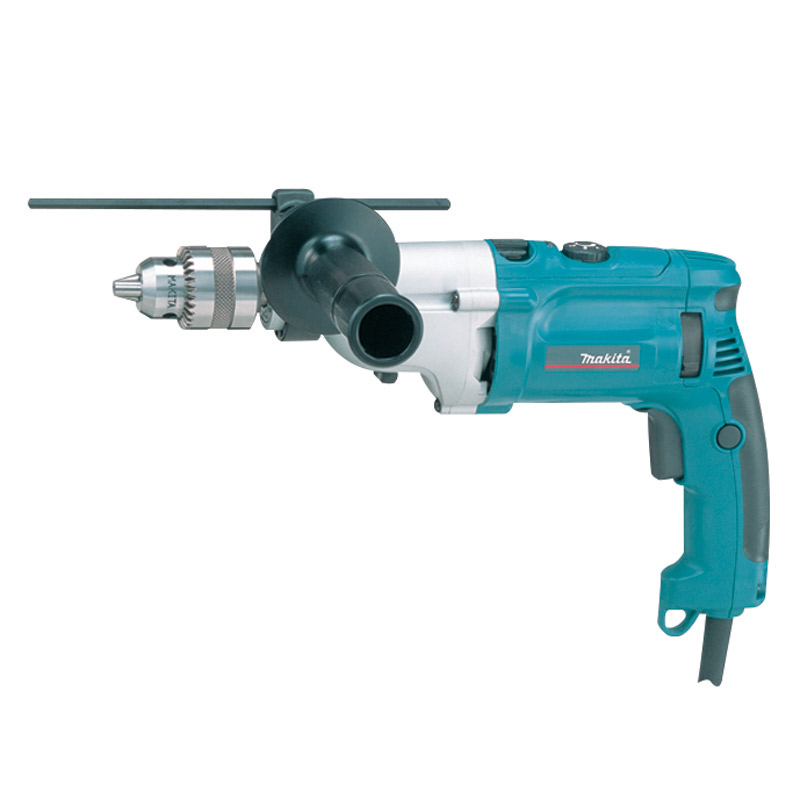

HP2070
Specifications
- 20 mm (3/4″) 1,010 W 2-Speed Hammer Drill with Keyed Chuck
- “Hammering with Rotation” or “Rotation Only”
- Powerful 1,010 W motor for heavy duty use
- 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Large trigger switch and 360° swivel side handle for added comfort
- Torque limiting clutch engineered to reduce gear damage by automatically disengaging gears if bit binds
- Conveniently located reverse slide switch for easy access and use
- Recessed lock-on button for continuous use
- Lightweight for reduced operator fatigue
- All-ball bearing construction for longer tool life
- Ergonomic rubberized grip for increased comfort on the job
- Double insulated

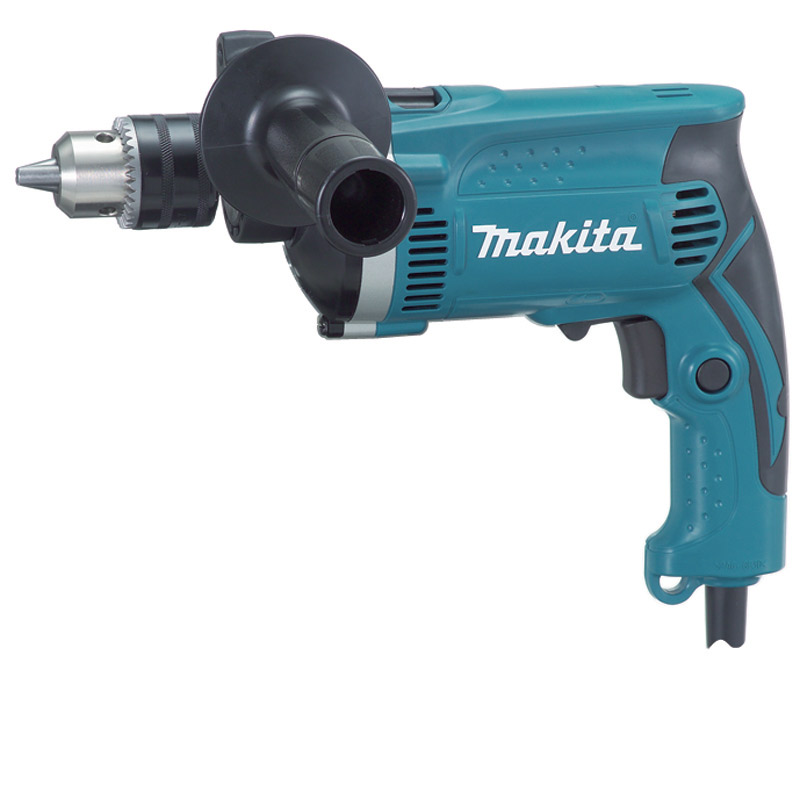

HP1630
Specifications
- 16 mm (5/8″) 710 W Hammer Drill with Keyed Chuck
- Powerful 710 W motor with 0-3,200 RPM & 0-48,000 IPM for the most demanding applications
- Soft grip handle provides increased comfort on the job
- Industrial aluminum gear housing for durability and long tool life
- In-line positive grip design maximises power thrust
- Keyless chuck for easy bit installation and removal (HP1631)
- Lightweight with large drilling capacity up to 16 mm in concrete
- Large 2-finger trigger for added convenience
- Recessed lock-on button for continuous use
- Reversing switch is conveniently located
- 360° Swivel side handle
- Variable speed control dial enables user to match the speed to the application
- 2-mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
- Ideal for small self anchoring concrete screws
- Double insulated
- Depth gauge for increased drilling consistency (country-specific)
