Top Magnetic Core Drill Supplier in Eastern India – Yusufally And Sons
Yusufally and Sons is comfortable to be a dependable of Magnetic Core Drills supplierin Kolkata, West Bengal, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam. Our more effective selection of Magnetic Core Drills is engineered for precision and efficiency, meeting the different needs of industries and professionals sometime around the region.
At Yusufally and Sons, we are dedicated to supplying high-performance Magnetic Core Drills that ensure accuracy and productivity. Our Magnetic Core Drills are specifically developed to fulfil the needs of construction, fabrication, and production professionals in your field.
Product Introduction

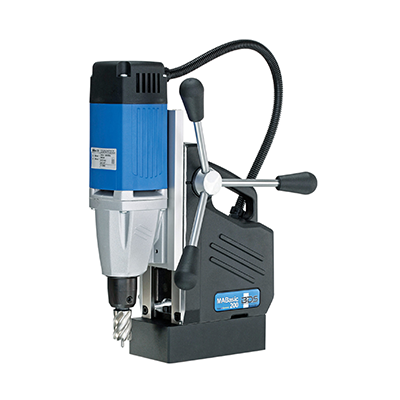

A Magnetic Core Drill (mag drill) is a portable drilling machine with an electromagnet or permanent magnet base. These tools are essential for drilling precise holes in metal surfaces, making them a valuable asset in construction, fabrication, and manufacturing industries.
Our Type of Magnetic Core Drills As Per Below:
Magmetic Core Drill YUVA38 |
Magmetic Core Drill Commando 40S |
Magmetic Core Drill Commando 50 |
Low Profile Magmetic Drill Commando 50LP |
Magmetic Core Drill Commando 75 |
Multifunction Magmetic Drill Mega-150 |
Magmetic Core Drill ENOVA 40 |
Magmetic Core Drill Mega-45 |
Permanent Magmetic Core Cutting Drill Commando 50OPM |
Magmetic Core Drill NW 50S |
Magmetic Core Drill Commando 100 (New) |
Features of Magnetic Core Drills
- Magnetic Base Stability: Ensures a firm grip on metal surfaces for accurate drilling.
- Compact and Portable Design: Ideal for use in tight or vertical spaces.
- High Drilling Efficiency: Delivers fast and precise holes in various metals.
- Variable Speed Control: Offers flexibility for different materials and applications.
- Durable Construction: Built with robust materials to withstand heavy-duty usage.
- Safety Features: Includes overload protection and ergonomic handles for user safety.
Specifications
- Drilling Diameter: Up to 50 mm (varies by model)
- Drilling Depth: Up to 75 mm
- Magnetic Adhesion: 1000-1500 kgf (kilograms-force)
- Motor Power: 1000W to 1500W
- No-Load Speed: 100-600 RPM
- Weight: 10-15 kg (depending on model)
Industries We Serve
Our magnetic core drilling machines are widely used in:
Steel Fabrication Workshops
Shipbuilding & Dockyards
Construction Projects
Bridge and Tower Erection
Railway Infrastructure
Heavy Engineering Plants
These sectors demand reliable core drills that reduce downtime and increase productivity—and Yusufally And Sons delivers just that.
Magmetic Core Drill YUVA38
Specifications
| Model | Yuva 38 |
|---|---|
| Rated Power | 1300W |
| No Load Speed | 700r/min |
| Magnetic Power | 12000N |
| Max Hole Dia | 38mm |
| Max Dole Depth | 50mm |
| Max Twist Drill | 13mm |
| Insulation | Grounding to earth |
| Approx Net Weight | 13.2 kg. |
- Coolant Bottle
- Metal Chips Pick Up
- Hex Wrench
- Work Locating Fix Pin
- Twist Drill Key Chuck
- Safety Rope
- Chuck Adaptor
Features
- 100% Copper powerful motor
- Two-way allow guide rail, wear resistant and durable
- Core drill and twist drill, Two function
- Overloading motor protection, 8A
- Super powerful magnetic force
- Easy Carry Side Handle
- Soft grip drill press handel
- Accompany with coolant bottle
- Packing in strong BMC

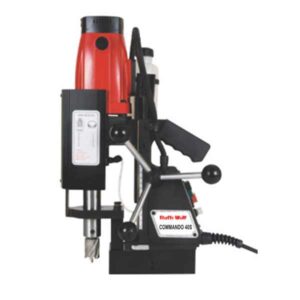

Magmetic Core Drill Commando 40S
Specifications
| Model | COMMANDO 40S |
|---|---|
| Capacity | 40 mm dia × 50 mm Depth |
| Watts Input (Full load) | 1100 W |
| No load RPM | 270 to 610 RPM |
| Variable / Reversible | Variable |
| Speed Selection | 6 Speed |
| Magnetic Adhesion | 8000 N |
| Max Core Drill Capacity | 40 X 50 MM |
| Adaptor Size | Self 19.05 MM |
| Twist Drill Capacity | 13MM |
| Stroke | 85MM |
| Magnet Size (L X W X H) | 165 X 80 X 45 MM |
| Weight (Without Accessories) | 13.7 Kg. |
| Rated Voltage | 230V AC |
Standard Accessories
- Allen Key – 2no.
- Coolant Bottle
- Safty Belt
- Drift – 1no
- 13mm Drill Chuck with Key
- Drill Chuck Holder

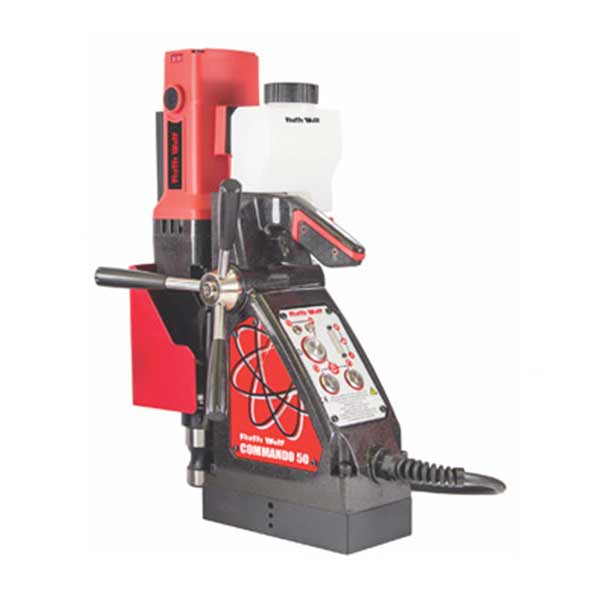

Magmetic Core Drill Commando 50
Specifications
| Model | COMMANDO 40 |
|---|---|
| Max. Capacity(Core / Broach Drilling) | 50 mm dia × 50 mm Depth |
| Max. Capacity (T.S. Twist Drilling) | 22 mm |
| Watts Input (full Load) | 1500 Watts |
| No Load Speed | High Gear : 200-500 r.p.m, Low Gear : 100-265 r.p.m. |
| Approx Net Weight | 18.8 kg. |
| Spindle Bore | 19.05 mm (3 / 4″) |
| Rated Voltage | 230V AC |
- Production oriented & accurate core drilling in metal
- Taper Shank & Twist Drill compatibility

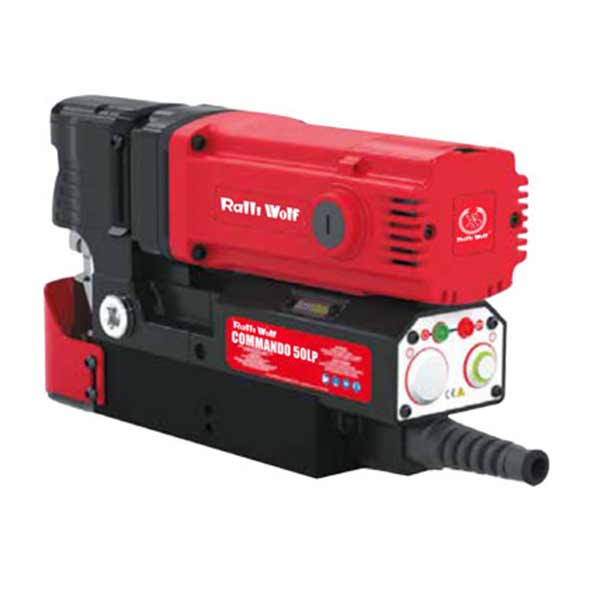

Low Profile Magmetic Drill Commando 50LP
Specifications
| Model | COMMANDO 50LP |
|---|---|
| Cutter Capacity | 50mm |
| Depth of Cut | 50mm |
| Countersink | 30mm* |
| No Load Speed | 250-500 RPM |
| Motor Specification | 1200W |
| Magnet Adhesion | 10000N |
| Length | 334mm |
| Height | 179mm |
| Width | 100mm |
| Magnet Size | 192mm × 82mm |
| Weight | 11kg. |
| Rated Voltage | 110/230V |
| Stroke | 62mm |
- Largest capacity low profile magnetic drill in the market
- Cutting diameter and depth of cut to 50mm
- 1200W motor with variable, 6 speed setting
- Countersink to 30mm*
Safety Features
CutsmartTM Technology / Fixed Guard / Magnetic Detection / Safety Strap

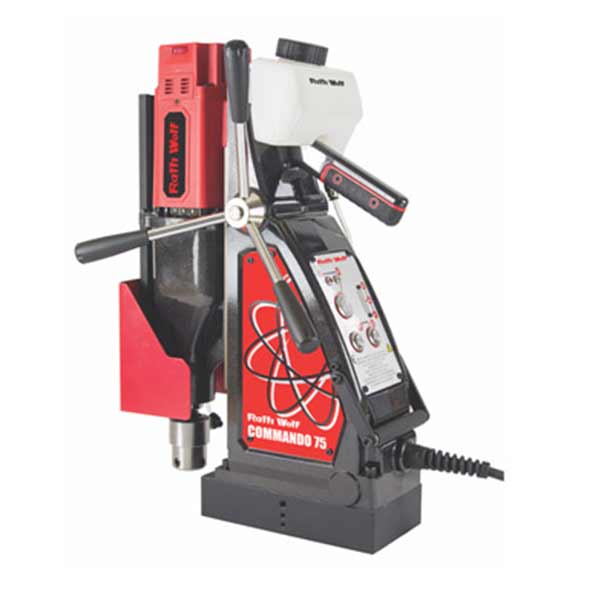

Magmetic Core Drill Commando 75
Specifications
| Model | COMMANDO 75 |
|---|---|
| Max. Capacity | 75 mm dia × 75 mm Depth |
| Max. Capacity (T.S. Twist Drilling) | 32 mm |
| No Load Speed | High Gear : 200 – 500 r.p.m, Low Gear : 70 – 180 r.p.m. |
| Spindle Bore | 19.05 mm (3 / 4″) & 31.75 mm (1 ¼”) |
| Approx Net Weight | 23.5 kg. |
| Watts Input (full Load) | 1800 Watts |
| Rated Voltage | 230V AC |
- Production oriented & accurate core drilling in metal
- Taper Shank & Twist Drill compatibility

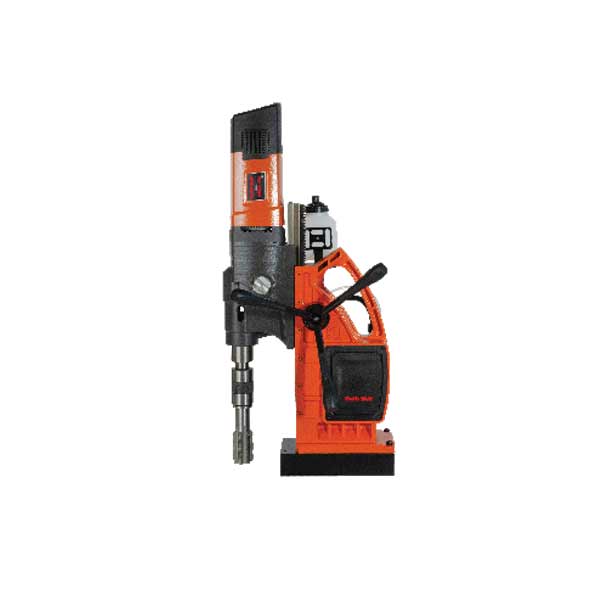

Multifunction Magmetic Drill Mega-150
Specifications
| Model | MEGA – 150 |
|---|---|
| Capacity | 150 mm dia × 150 mm Depth |
| Core Drill Dia | 150 mm |
| Twist Drill Dia | 57 MM |
| No load RPM | 40 – 100 rmp (1), 70 – 180 rpm (2), 180 – 450 rmp (3), 290 – 720 rpm (4) |
| Tapping Dia | M50 |
| Rated Frequency | 50 – 60 Hz |
| Rated Input Power | 3080W |
| Max Attraction | 24500N |
| Cutting Depth | 150 mm |
| Stroke | 350MM |
| Rated Voltage | 230V AC |
Multifuntional magnetic drill can be used in construction sites or workshop, can be used for twist drill, core drilling, reaming and tapping. A portable magnetic drilling machine is used on steel or other magnetic materials. It gives an accuracy of 0.01 mm to 0.05 mm in steel or other magnetic material.
The drill bits used for this machines are generally made from high speed steel (HSS) of are tungsten carbide tipped (TCT).
Standard Accessories
- Allen Key – 2no.
- Coolant Bottle
- Safty Belt
- Drift – 1no
- 13mm Drill Chuck with Key
- Drill Chuck Holder
Magmetic Core Drill ENOVA 40

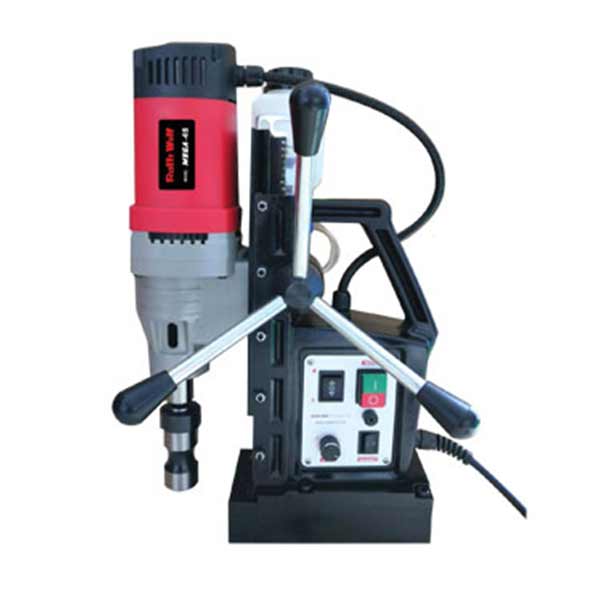

Magmetic Core Drill Mega-45
Specifications
| Model | MEGA – 45 |
|---|---|
| Rated Voltage | 220V / 235V AC |
| Frequency Hz | 50~60 |
| Input Power | 1380W |
| Max Core Drilling Capacity | Dia 45 x 50 deep |
| Max Drill with Twist Drill | 19mm |
| Max Tapping Dia | 3mm to 12mm Max |
| Speed – Variable | 100 – 470 rpm |
| Magnetic Adhesion | 16500N |
| Magnet Base Size | 202 x 102 x 45 mm |
| Stroke | 210 mm |
| N.W. (kg) | 19kgs |
MEGA – 45 is a Morse Taper 2 magnetic core drilling machine, for the professionals who do not want to compromise on quality & performance at an attractive price. With the powerful motor MEGA – 45 performs 45 mm diameter core drilling with 50 mm cutting depth.

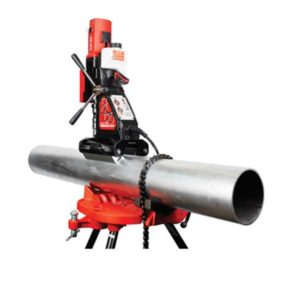

Permanent Magmetic Core Cutting Drill Commando 50PM
Specifications
| Model | COMMANDO 50PM |
|---|---|
| No Load Speed | High gear 200-500 RPM, Low gear 100-265 RPM |
| Max Hole Cutting Capacity | MT2 Shank Drill |
| Overall Dimensions | Height: min 490mm max 640mm / Width: 190mm / Length: 317mm |
| Stroke | 140mm |
| Machine Weight | 110V/18kg / 230V/17.7kg |
| Magnetic Adhesion | 8430N |
| Magnet Size | Height: 277mm / Width: 190mm |
| Safety Features | CutsmartTM Technology / Fixed Guard / Magnetic Detection / Secondary Motor Protection. |
| Rated Voltage | 230V AC |
The latest addition to the Ralliwolf range, the COMMANDO 50 Pivot Magnet is specifically designed for drilling on curved, uneven surfaces. With its permanent magnet, the COMMANDO 50PM retains magnetic adhesion, even on thinner surfaces.
- Maintains strong grip on curved steel and pipework down to 3.5mm material thickness.
- Can be also used for standard flat surface drilling.
- Twist drill, threading and countersinking capability.
- Permanent magnet technology magnet does not require electrical power.
- Double pivoting magnet base two separate magnets allowing machine movement in-between drilling for inspection & debris removal without losing position.
- Safe and hidden away internal cabling.
- Mounted coolant bottle, steel sliding guard and switchable handle.
- Centered control panel with Cutsmart for increased tool and machine life.

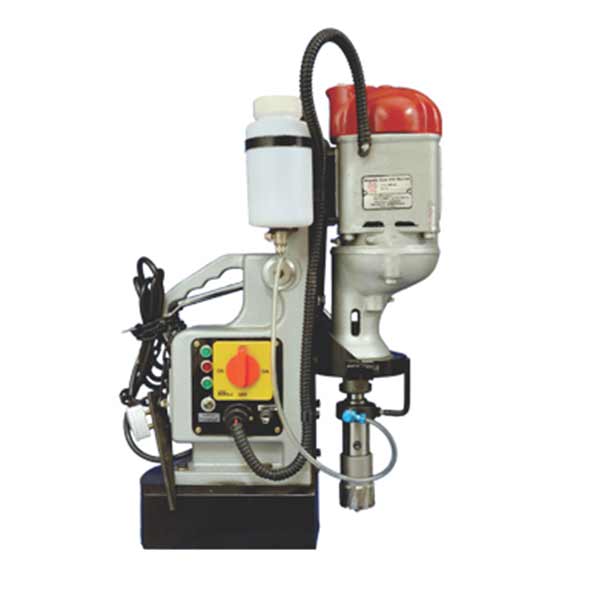

Magmetic Core Drill NW 50S
Specifications
| Model | NW 50S |
|---|---|
| Capacity | 50 mm dia × 50 mm Depth |
| Watts Input (full Load) | 1600 Watts |
| No Load Speed | 450 r.p.m. |
| Spindle Bore | 19.05 mm (3 / 4″) |
| Approx Net Weight | 31 Kg. |
- Production oriented & accurate core drilling in metal
- Rugged construction
- Al- die cast body
Accessories
- Standard Accessories – Coolent Bottle Assembly, MT3 Adopter, Handle – 3 Nos., Allen Keys, pair of gloves, Eye protecting goggles, Safety Chain, Additional Arbor With Carrying Case.
- Optional Accessory – Side flange with tubular handle, 04 nos of screws.

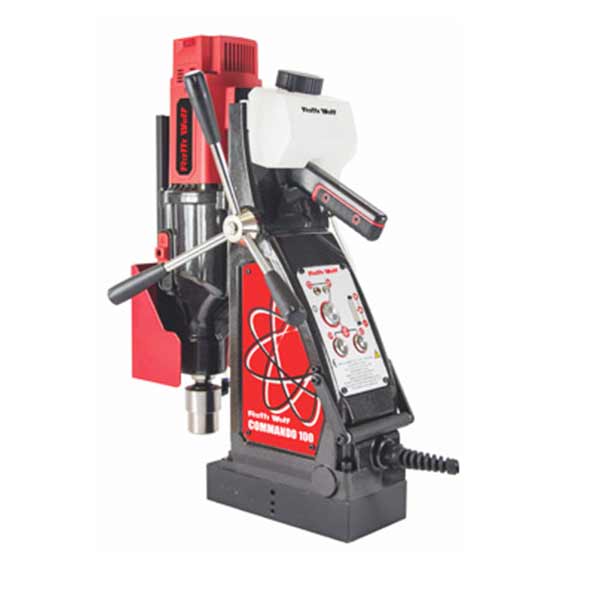

Magmetic Core Drill Commando 100 (New)
Specifications
| Model | COMMANDO 100 |
|---|---|
| Max. Capacity (Core/Broach Drilling ) | 100mm Dia × 100mm Depth |
| Max. Capacity (T.S. Twist Drilling) | 32 mm |
| Watts Input (full Load) | 2000 Watts |
| No Load Speed Gear 1 | 150-434 r.p.m. |
| No Load Speed Gear 2 | 70-208 r.p.m. |
| No Load Speed Gear 3 | 200-500 r.p.m. |
| No Load Speed Gear 4 | 240-700 r.p.m. |
| Spindle Bore | 19.05 mm (3 / 4″) & 31.75 mm (1 ¼”) |
| Approx Net Weight | 23.8 kg. |
- Production oriented & accurate core drilling in metal
- Taper Shank & Twist Drill compatibility
Accessories
- Standard Accessories – Coolent Bottle Assembly, MT3 Adopter, Handle – 3 Nos., Allen Keys, pair of gloves, Eye protecting goggles, Safety Chain, Additional Arbor With Carrying Case.
Applications
- Structural Fabrication: For creating precise holes in steel structures and beams.
- Construction Projects: Ideal for bridge construction, building frameworks, and heavy machinery assembly.
- Shipbuilding: Used for drilling in ship hulls and marine equipment.
- Manufacturing: Assists in producing metal components with precision.
- Automotive Industry: Essential for creating holes in automotive frames and parts.
Technical Chart
Model | Drilling Diameter (mm) | Drilling Depth (mm) | Motor Power (W) | Speed (RPM) | Magnetic Adhesion (kgf) |
MagDrill-50 | 12-50 | 50-75 | 1200 | 100-450 | 1200 |
MagDrill-Pro 75 | 15-75 | 75 | 1500 | 200-600 | 1500 |
Why Choose Yusufally and Sons?
- Trusted supplier of quality tools and equipment.
- Competitive pricing with a focus on value for money.
- Expert guidance to help select the right products for your requirements.
- Comprehensive after-sales support for a seamless experience.
Targeting Major Locations Across Eastern India
Whether you’re a fabricator in Howrah, a contractor in Ranchi, or a project manager in Bhubaneswar, Yusufally And Sons is ready to fulfill your magnetic core drill needs.
We actively serve customers in:
Kolkata & West Bengal
Patna, Gaya, Bhagalpur (Bihar)
Ranchi, Jamshedpur, Dhanbad (Jharkhand)
Bhubaneswar, Cuttack, Rourkela (Odisha)
Raipur, Bhilai, Bilaspur (Chhattisgarh)
Guwahati, Silchar, Dibrugarh (Assam)
Our logistic network ensures timely delivery across these regions, backed by our expert
support team.
Contact Yusufally And Sons Today
Looking for a durable, precise, and high-performing magnetic core drill supplier in Eastern India? Contact Yusufally And Sons for the best drilling solutions and unmatched after-sales service.
