Pipe Grooving Machine
Pipe Grooving Machine
Pipe Grooving Machine RX-12E
Specifications
Model | RX-12E |
Capacity | 2”-6” for schedule 40 8”-12” for schedule 10 |
Motor | 750W |
Voltage | 220V-240V, 50Hz |
Speed | 24RPM |
G.W: | 150 Kg |
Standard Accessories | ● Pipe Support Stand ● Pinch Roller 2”-6” – One pc ● Pinch Roller 8”-12” – One pc ● Knurling Wheel 2”- 3” – One pc ● Knurling Wheel 4”- 6” – One pc ● Knurling Wheel 8”- 12” – One pc |

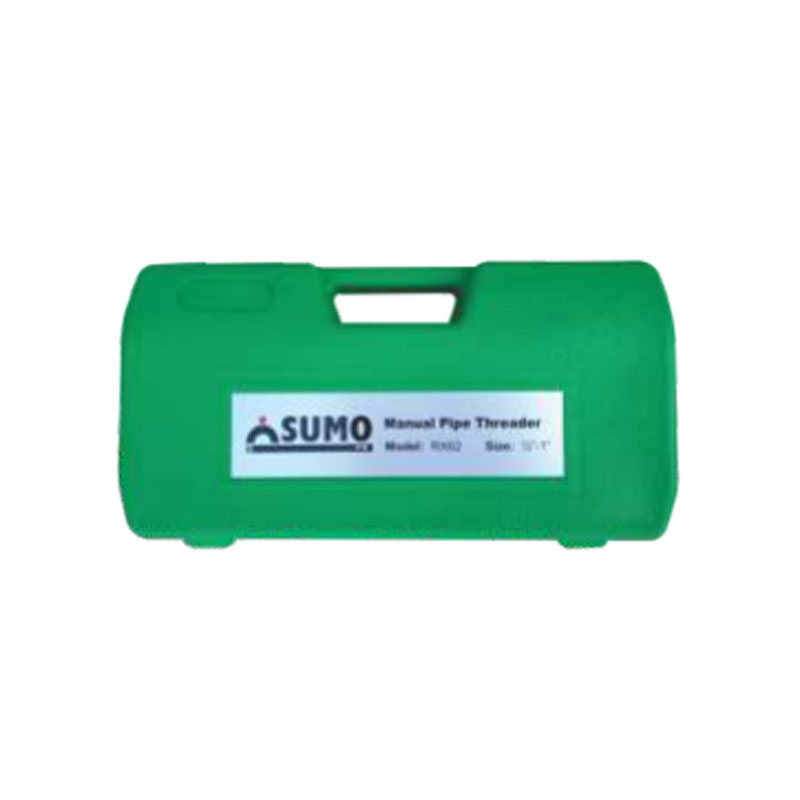

Manual Pipe Threader 1 INCH
Specifications
Model | NV-62 |
Capacity | 1/2″ – 1” (BSPT) |
Die Head | 1/2″ , 3/4″ , 1” |
Model | NV-5A |
Capacity | 1”- 6” (Ø33- Ø168) SCH40 Pipe |
Max Wall Thickness | 6mm |
Voltage | 220V-240V, 50Hz |
Speed | 23RPM |
G.W | 96 Kg |
Standard Accessories | ● Pipe Support Stand ● Knurling Wheel Ø 33 – Ø 48 One pc ● Knurling Wheel Ø 57 – Ø 89 One pc ● Knurling Wheel Ø 108– Ø 168 One pc ● Pinch Roller Ø 33 – Ø 48 One pc ● Pinch Roller Ø 57 – Ø 168 One pc ● Groove Measuring Tape One pc |
Packaging Size | 95×53×65 (cm)
|
Model | NV-9A |
Capacity | 1”- 8” ( Ø33 – Ø219) SCH40 Pipe |
Max Wall Thickness | 8mm |
Voltage | 220V-240V, 50Hz |
Speed | 23RPM |
G.W | 98Kg |
Standard Accessories | ● Pipe Support Stand ● Knurling Wheel Ø 33 – Ø 48 One pc ● Knurling Wheel Ø 57 – Ø 89 One pc ● Knurling Wheel Ø 108– Ø 168 One pc ● Knurling Wheel Ø 219 One pc ● Pinch Roller Ø 33 – Ø 48 One pc ● Pinch Roller Ø 57 – Ø 168 One pc ● Pinch Roller Ø 219 One pc ● Groove Measuring Tape One pc |
Packaging Size | 95×53×65 (cm) |
Model | NV-2A |
Capacity | 2” – 12” (Ø60 – Ø325) SCH40 Pipe |
Max Wall Thickness | 10mm |
Voltage | 220V-240V, 50Hz |
Speed | 23RPM |
G.W | 163 Kg |
Standard Accessories | ● Pipe Support Stand ● Knurl Wheel Ø 60 – Ø 76 One pc ● Knurl Wheel Ø 89 – Ø 168 One pc ● Knurl Wheel Ø 219– Ø 325 One pc ● Pinch Roller Ø 60 – Ø 168 One pc ● Pinch Roller Ø 219 – Ø 325 One pc ● Groove Measuring Tape One pc ● Foot Switch One pc |
Packaging Size | 78×72×92 (cm) |

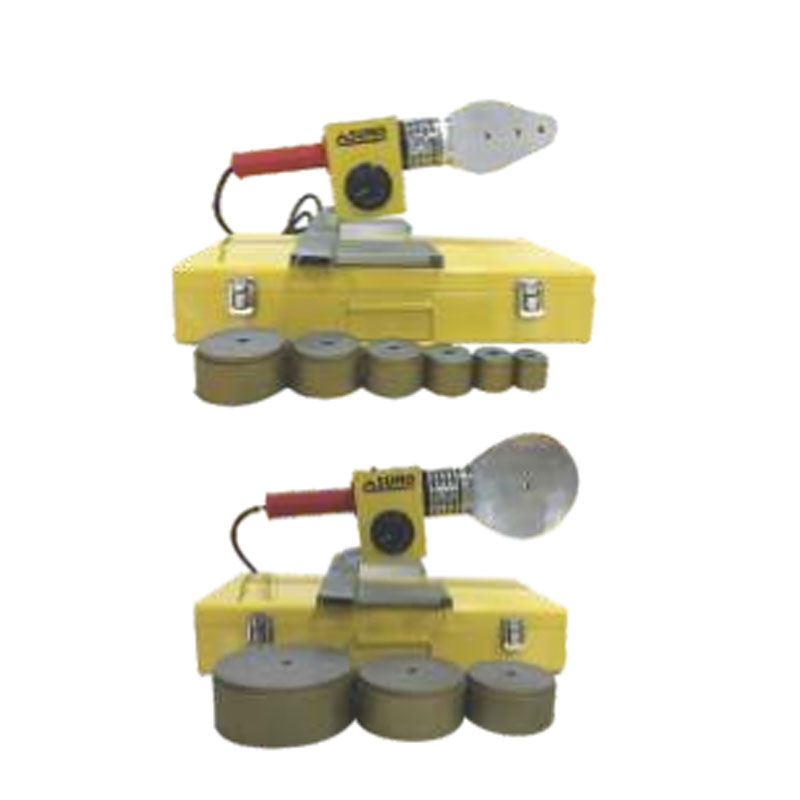

Socket Welding
Specifications
Model : PPR 63 | |
Fusion Range | Dia (MM ) : 20, 25, 32, 40, 50, 63 |
Rated Power | 800W |
Rated Voltage | 220V |
Frequency | 50/60Hz |
Working Temperature | 240-280° C |
Model : PPR 110 | |
Fusion Range | Dia (MM ) : 75, 90, 110 |
Rated Power | 1200W |
Rated Voltage | 220V |
Frequency | 50/60Hz |
Working Temperature | 240-280° C |
Hydraulic Pipe NV-4A
Specifications
MODEL | NV-4A |
Capacity | 8”-24” (Ø219 – Ø630) SCH40 Pipe |
Max Wall Thickness | 13mm |
Voltage | 380V-415V,50Hz |
Speed | 15RPM |
G.W | 340 Kg |
Standard Accessories | ● Hydraulic Pipe Support Stand ● Knurl Wheel Ø 219 – Ø 325 One pc ● Knurl Wheel Ø 377 – Ø 426 One pc ● Knurl Wheel Ø 480 – Ø 630 One pc ● Pinch Roller Ø 219 – Ø 530 One pc ● Pinch Roller Ø 630 One pc ● Groove Measuring Tape One Pc
|
Packaging Size | 102x75x147 (cm) |
