Pressure Testing Pump
Pressure Testing Pump

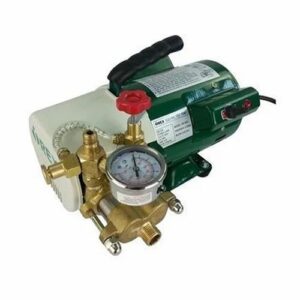

Electrical Test Pump
Specifications
Part No. RX-60A | |
Pressure Range | 0-6.0 Mpa / 0-60kg/cm / 0-900 PS |
Flow | 6L/Min – 360L/H |
Motor | 700W/220V/50Hz |
Dimension | Plastic box: 39 x 29 x 29 (cm) |
Note: (Unit Conversion) : 1MPA = 10 Bar = 10.1972kg. / cm = 145.038 Psi
FEATURES
- For quick & exact compression testing
- For testing of leaks in installations, sprinkler systems & other small bone pipe applications
- Reliable device of pipeline construction, pressure vessel manufacture test, pipeline pressure test
- Electric Pressure test pump, featuring compact, stable output, low power, convenient carry, simple & easy maintainance.
Instructions before using the Electric Testing Pumps
- Connect the Suction hose, the overflow hose, the high pressure hose, as illustrated in fig1. Especially the Suction hose, the high pressure hose must be fastened tightly together with gaskets, net permit water leakage from each joint.
- Loosen the pressure adjusting screw. This is to prevent immediate pressure rise after start of the pump.
- Put the suction hose with strainer & the overflow hose in a water tank.
- Keep the water tank clean
- Fill the Hose & container to be Tested with water & drain out air

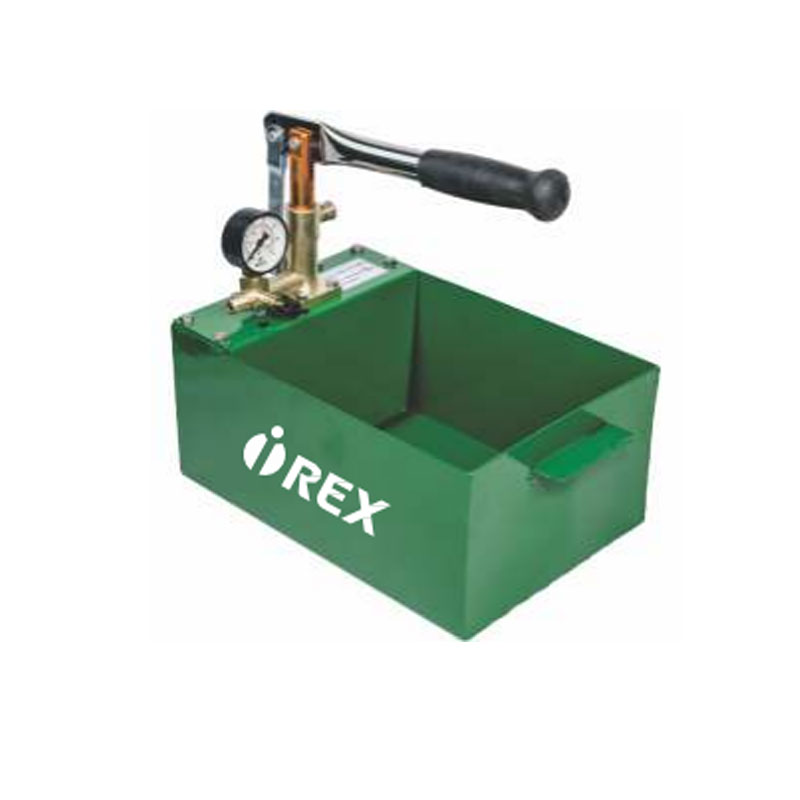

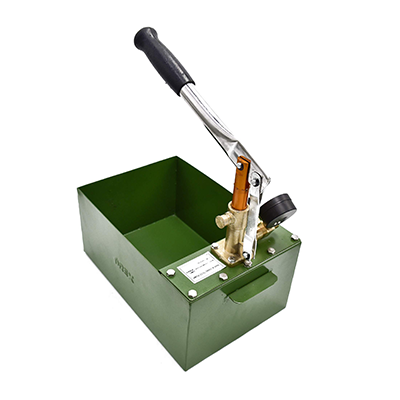

Manual Test Pump
Specifications
|
Part No. RX-60M |
|
|
Max Pressure |
6.OMPa / 60 kg / cm |
|
Stroke |
35 mm |
|
Flow of per stroke |
13 c.c |
|
Capacity of water tank |
10L |
|
Dimensions (LxHxW) |
34 x 60 x 31 (mm) |
Note: (Unit Conversion) : 1MPA = 10 Bar = 10.1972kg. / cm = 145.038 Psi
FEATURES
- Pump body is of Brass
- Durable in use, Simple operations & Easy to maintain
- Compact and super light weight structure makes it handy and Portable.
